ECS A790GXM-A User Manual

61
ATI CrossFireX
TM
Technology & Hybrid Graphics
®
Technology Support

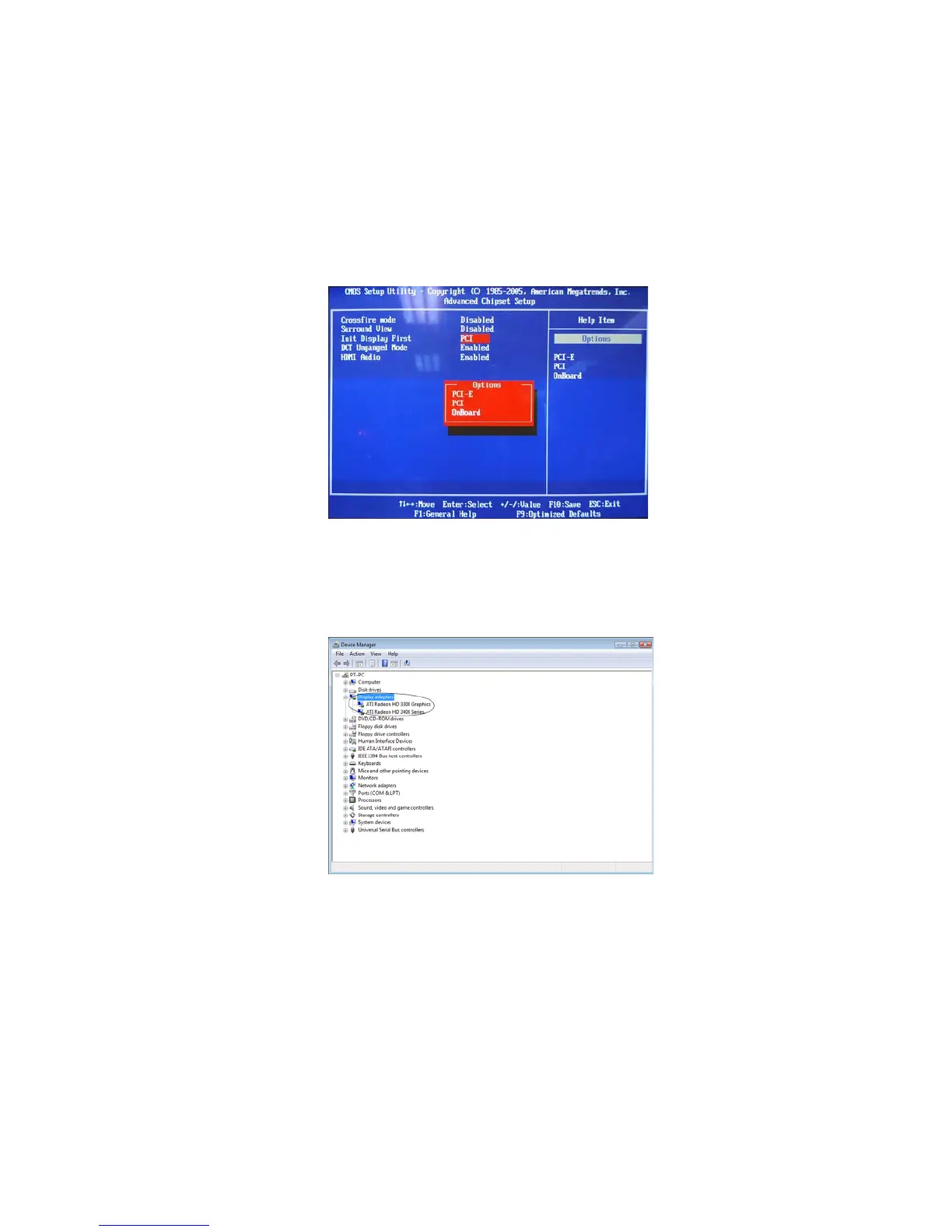

3. Click with your right mouse button on My Computer, then click the option
Manage and choose the Device Manager, finally, click the Display Adapters. The
following screen appears. Be sure that the external ATI graphics (ATI Radeon HD
3300 Grapics) and Onboard graphics (ATI Radeon HD 3400 Series) are both display-
ing in the Display adapters.
While if display by OnBoard, you must enter the BIOS, set the Init Display First in
Advanced Chipset Setup to OnBoard. Then press F10 to save the configuration and
exit the BIOS. After entering OS, enter Catalyst Control Center to enable CrossFire.

ECS A790GXM-A Specifications

General

Brand	ECS
Model	A790GXM-A
Category	Motherboard
Language	English
