LIVA CORE MINI PC USER MANUAL
5
Chapter 1
Connect the DC_IN port to the power
adapter.
You can connect the display device to
the HDMI port.

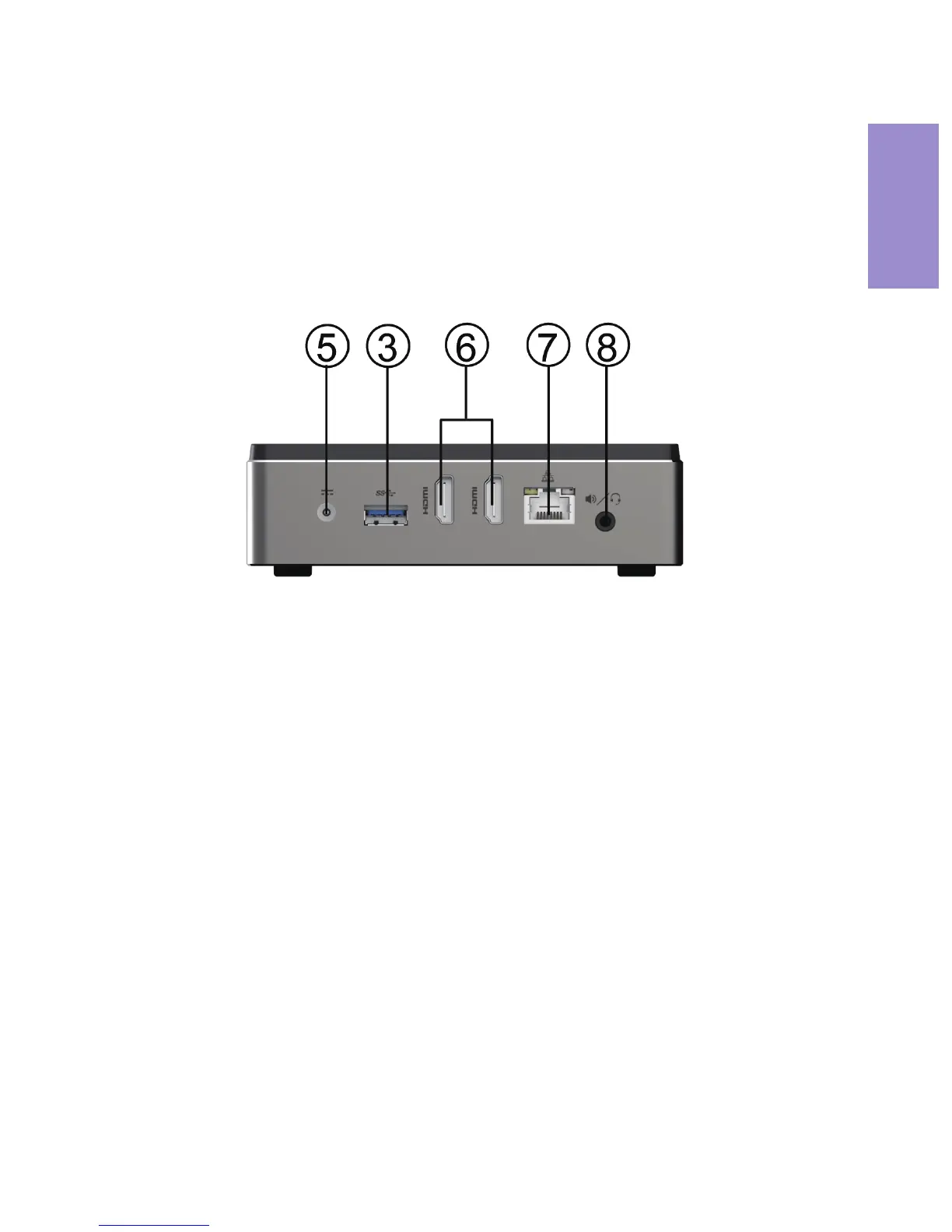

5. 19V DC_IN Port
Connect an RJ-45 jack to the LAN port
for Network connecng.
7. LAN Port
8. Combo Audio Jack
(Line out & Mic in)
Connect a microphone or speaker to
the combo jack.
6. HDMI Ports*
Connect your USB 3.0 devices to these
ports and enjoy EZ charger by the
yellow port at the right-hand sied.
3. USB 3.0 Ports
Note: *The HDMI1 port is 1.4, and the HDMI2 port
is 1.4A.
