6 / 17
3.The load power should not exceed the rated power of the inverter.

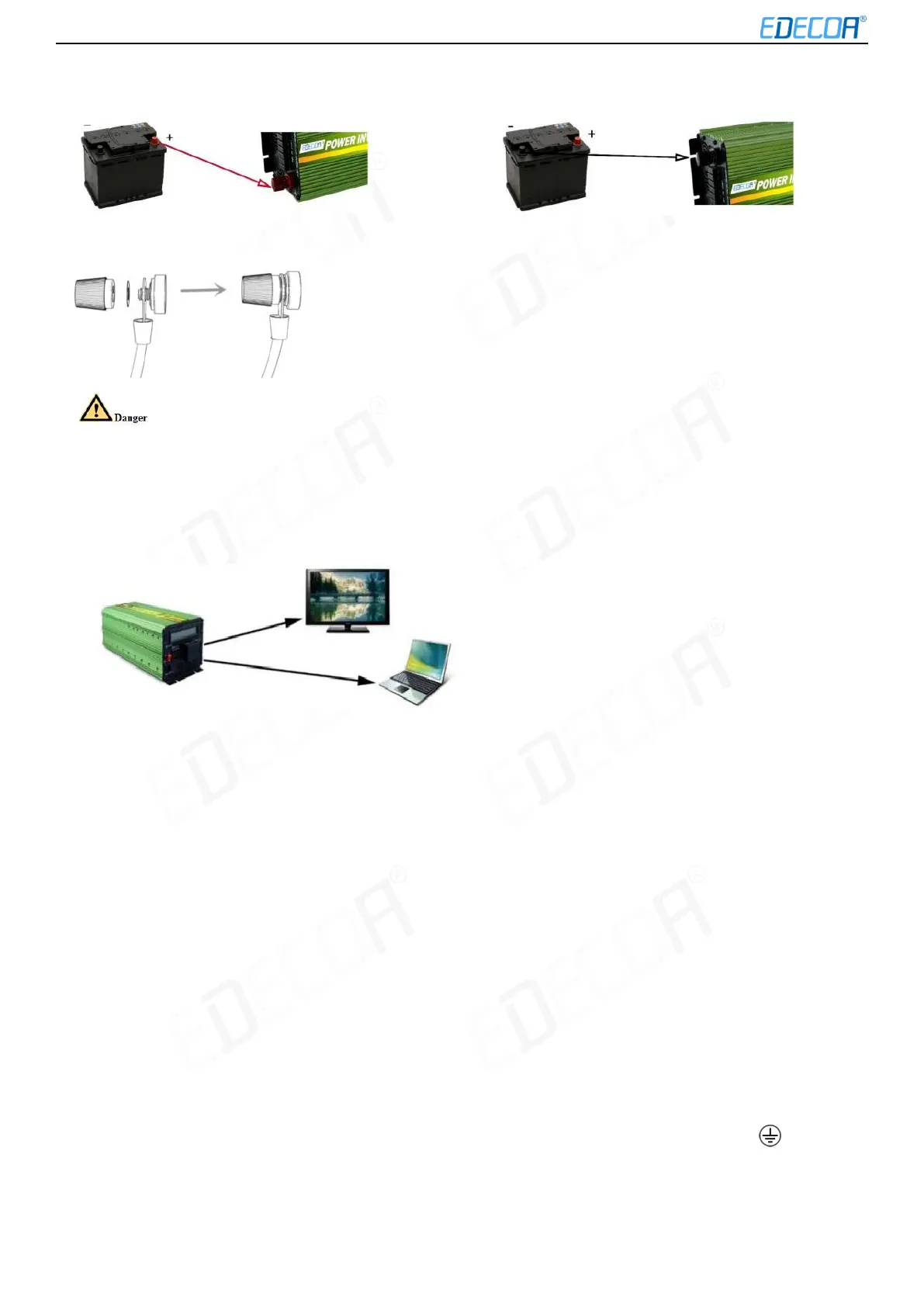

The two DC-input connectors of the inverter are color-coded:
The red terminal for the positive pole (+) The black terminal for the negative pole (-).
Inverter DC input installation method:
Please fix the battery cables on the positive and negative terminals of the inverter tightly. Otherwise, there will be
large current which will result in severe heating problem and parts damaged.
6.2 Load connection
1.Connect your device into power inverter AC outlet. (Make sure your device’s rated power is less than the inverter’s,
and the working voltage is 120VAC±5%)
2.The connections between power source (battery) and inverter cable terminals must be securely mounted.
3.Set the switch to the "ON" position
Tips:
The battery must be able to deliver necessary amperage according to the power of the inverter and load. For example,
for a 24v inverter to drive 1000W resistive load, the battery should be able to provide more than 45 amps! (On a 12V
inverter it will be >90 amps!)
Please do not connect the AC output side to other power source (i.e. electric supply) as this is not a grid interactive
inverter.
The cover should be connected to protective ground before usage. Please switch off the inverter and only on as
necessary to avoid power consumption from the batteries without load when it is not being used.
Use the supplied cable from the manufacturer or at least those with the same or larger cross-section.
Keep these connections as short as possible, it will flow considerable current depending on power extraction!
The inverter should be installed in a dry and well-ventilated area. The air inlet may not be blocked, and it should be kept
20cm away from the wall.
Do not install the inverter near flammable or explosive material. Please use dry cloth to clean the inverter. Do not stack
multiple inverters in operation above another so as the cooling is not guaranteed.
6.3 Grounding wire installation:
The connection method of the ground wire is different based on the different using environment (vehicle, boat, home,
outdoors) . You could find where to connect the ground cable in the power inverter following that icon “ ”
When using the power inverter in a vehicle, please connect the ground wire to the chassis of the vehicle.
