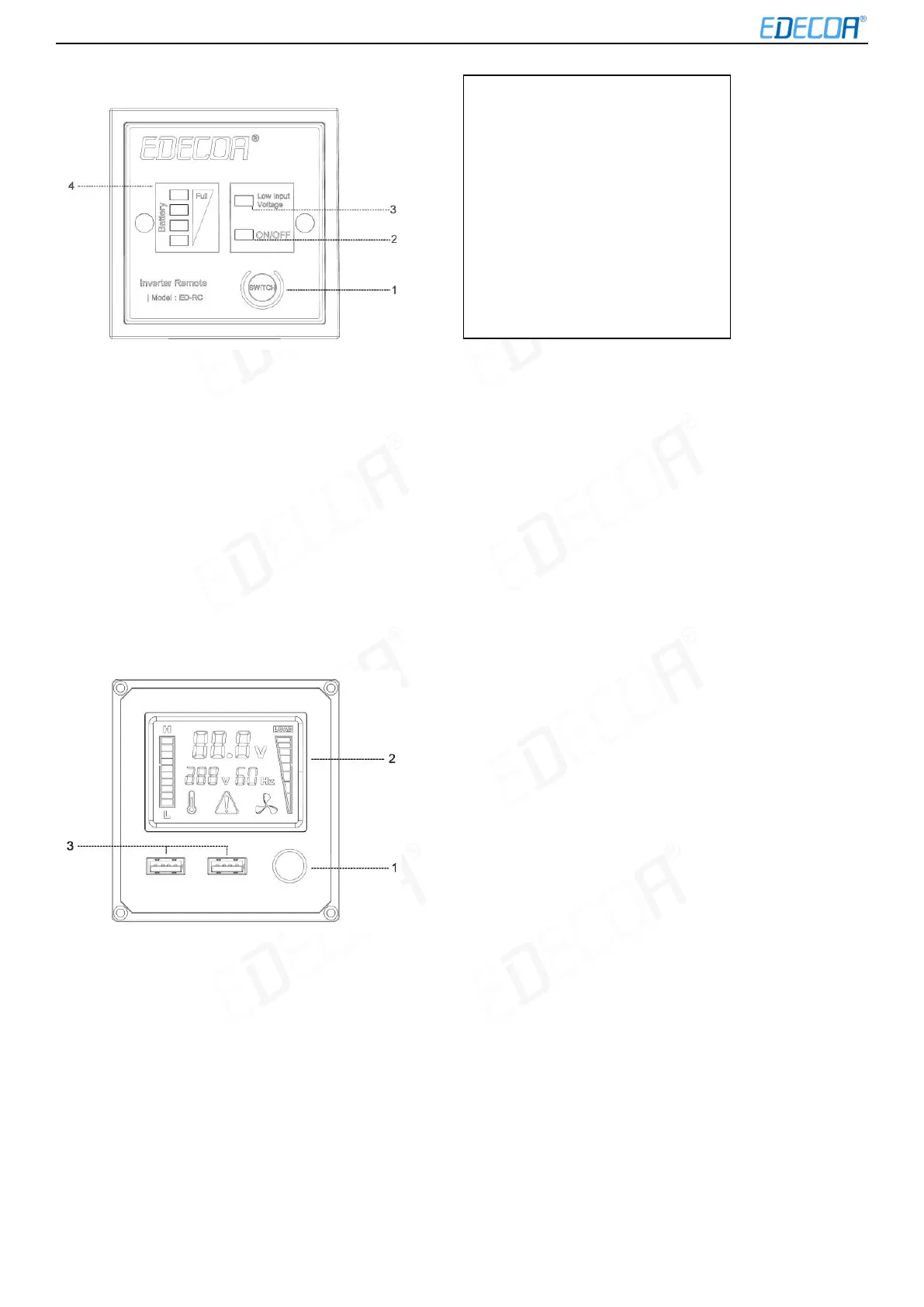

ED-RC remote controller
1. ON/OFF switch
2. Status light: If it is green, it means the inverter is on. If it is off, then the inverter is off.
3. Low input voltage indicator light: If the DC input voltage of the inverter is too low, it will be yellow.
4. Battery power indicator light.
About ED-RC remote cable
ED-RC remote cable is 2M or 4M long standard RJ45 network cable, it is easy for you to extend the length of it. When
working, the voltage drop through this 2M cable is about 0.02V, you can ignore it. If it is a 10M long cable, the voltage
drop will be about 0.1V. If you use very long remote cable, please note that the battery power indicator light maybe not
correct.
Note: If the remote controller can’t work properly, please try to replace the remote cable first.
ET-RC remote controller
1. ON/OFF switch(press 3s),Backlight switch(press once)
2. LCD display
3. USB charging: 5VDC/2.1A Max
About ET-RC remote cable
ET-RC remote cable is 4M long standard RJ45 network cable,In order not to affect the display signal transmission, it is
recommended to use network lines within 5M.
Because there are 2 USB interfaces on the remote control, you cannot use a longer network cable.
Battery power indicator light:
If DC voltage ≥12.5V, 4 LED lights will be
green
If 12V≤DC voltage≤12.5V, 3 LED lamps will
be green
If 10.8V≤DC voltage≤12V, 2 LED lamps will
be green
If 10V≤DC voltage≤10.8V only 1 LED lamp
will be green
Note: If your inverter is 24v, please multiply
the above DC input voltage by 2.
