Eden CS/4S 21 - General Dimensions for 4 Pipe Water Cassettes

Vers. 2009-3
water cassettes
5
INSTALLATION, OPERATION
AND MAINTENANCE MANUAL
Pic. 02
CS/4S 41 - 42 - 43 - 44 HC/4S 51 - 52 - 53 - 54

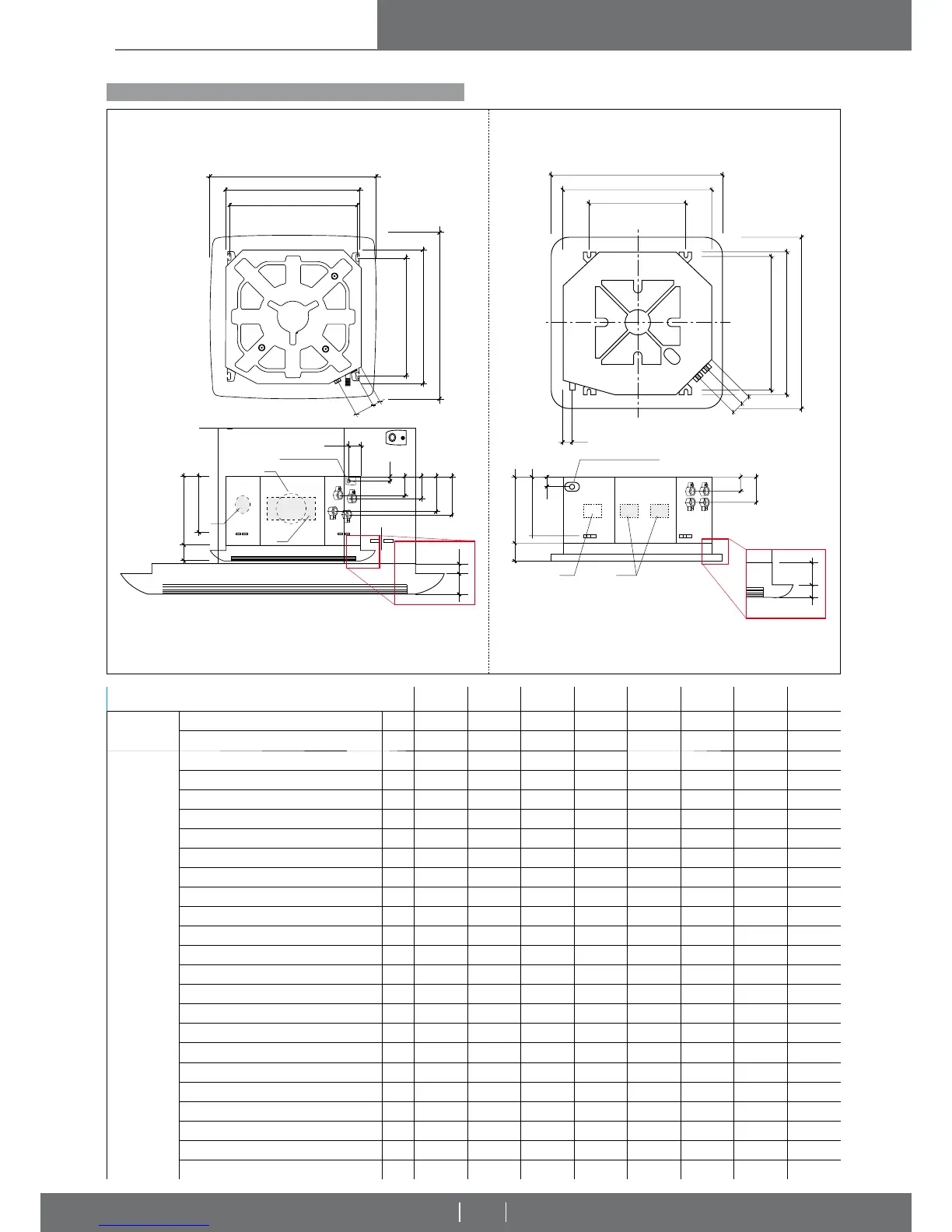

GENERAL DIMENSIONS FOR 4 PIPE WATER CASSETTES
MOD. 41 42 43 44 51 52 53 54
Fans number n° 1 1 1 1 1 1 1 1
Coil numbers n° 2 2 2 2 2 2 2 2
General features
Rows number (standard coil) n° 1 2 2 2 2 2 2 2
Hydraulic fi tting (Ø female gas) Ø 3/4” 3/4” 3/4” 3/4” 3/4” 1” 1” 1”
Rows number (auxiliary coil) n° 1 1 1 1 1 1 1 1
Hydraulic fi tting (Ø female gas) Ø 1/2” 1/2” 1/2” 1/2” 1/2” 3/4” 3/4” 3/4”
Depth of the unit (Lu) mm 580 580 580 580 835 835 835 835
Lenght of the unit (Pu) mm 580 580 580 580 835 835 835 835
Height of the unit (Hu) mm 280 280 280 280 240 305 305 305
Depth of the panel (Lp) mm 720 720 720 720 953 953 953 953
Lenght of the panel (Pp) mm 720 720 720 720 953 953 953 953
Height of the panel (Hp) mm 65 65 65 65 80 80 80 80
Air supply in adjacent room (Ø) A mm 150 150 150 150 - - - -
Air supply in adjacent room (BxH) C mm 350x100 350x100 350x100 350x100 120x80 120x80 120x80 120x80
Fresh air intake (Ø) D mm 65 65 65 65 - - - -
Fresh air intake (BxH) E mm - - - - 120x80 120x80 120x80 120x80
B mm 225 225 225 225 180 325 325 325
X mm 65,5 65,0 65,5 65,5 86 73 73 73
Y mm 55,5 55,5 55,5 55,5 75 68 68 68
Wmm8282828258888888
Z mm 100 100 100 100 117 160 160 160
M mm 146 146 146 146 - - - -
N mm 159 159 159 159 - - - -
Net weight kg
Lu
550
515
Pu
X
34.5
52
W
N
Lp
Pp
Hu
B
Hp
C
D
Y
42 23
785
Pp
Pu
512
Lp
65
57
B
Hu
Y
X
20 60
Lu
EC
Hp
A
W
Z
Z
M
Condensate
fi tting Ø 24
Condensate
fi tting Ø 27
