2. Mounting
2.2. degassing module multicontrol , makeup module multicontrolMAE MCF
multicontrol modular series devices factory provided are delivered without degassingMCM
module resp. makeup module . The mounting of these modules is done acc. to theMAE MCF
assembly instruction which is delivered with the module.
connection point MCF
connection point MAE

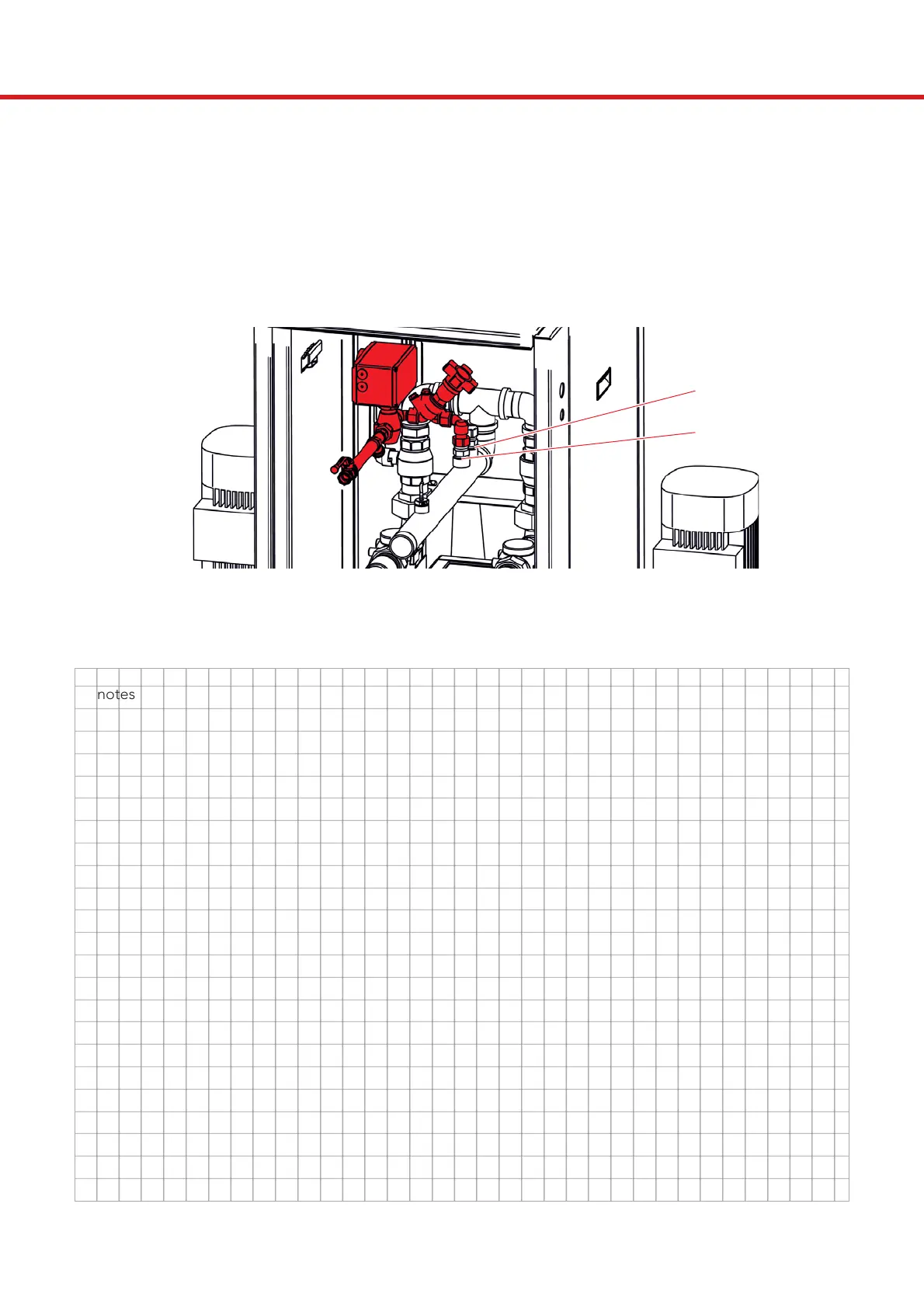

figure 2: degassing module MAE
