EDER MCM Series - System Options without Degassing

7
multicontrol without degassing:modular
Options: second main vessel -M, additional vessels , expansion modules,EG EGZ-M
makeup module , water treatment sensor T2MCF ,

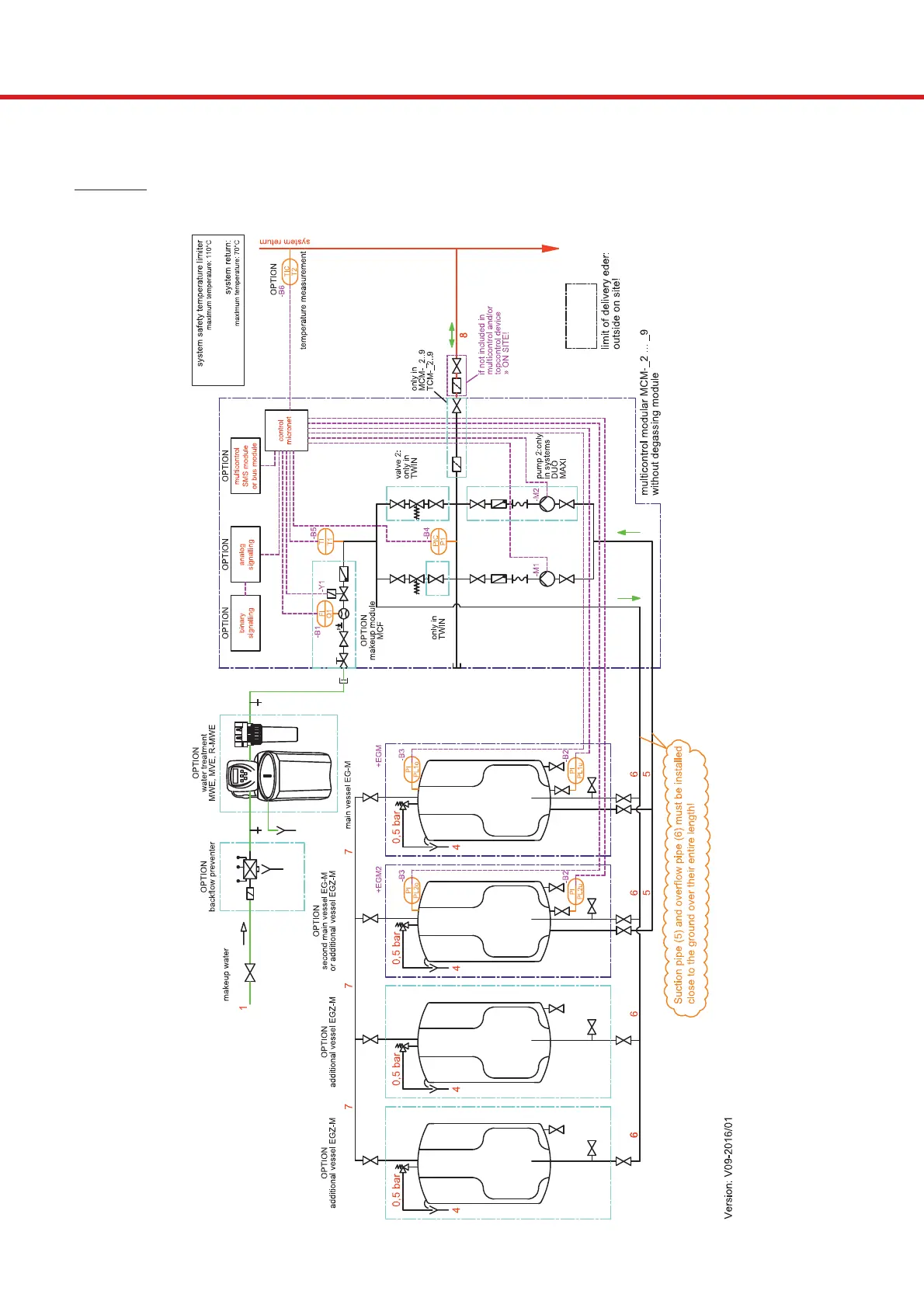

3. Hydraulic diagrams
1 ... makeup water 7 ... gas-side vessel connection 20DN
4 ... discharge hopper for vessel safety valve expansion pipe from/to system return8 ...
5 ... suction pipe from expansion vessel
6 ... overflow pipe from expansion vessel
