16 / CUTTERS EDGE VENTILATION SAWS
Cutting deeper than the D-8 setting
Even with the D-8 set to a pre-determined depth you can
increase the depth of your cut - without changing the
setting
- by increasing the angle of the saw to the roof
surface.
While cutting at the normal forty-five degree
angle, the saw will cut to the depth you have set. But by
raising the angle of the saw up to ninety degrees, you can
cut up to one-half inch deeper for every one inch you have
set on the D-8 scale.

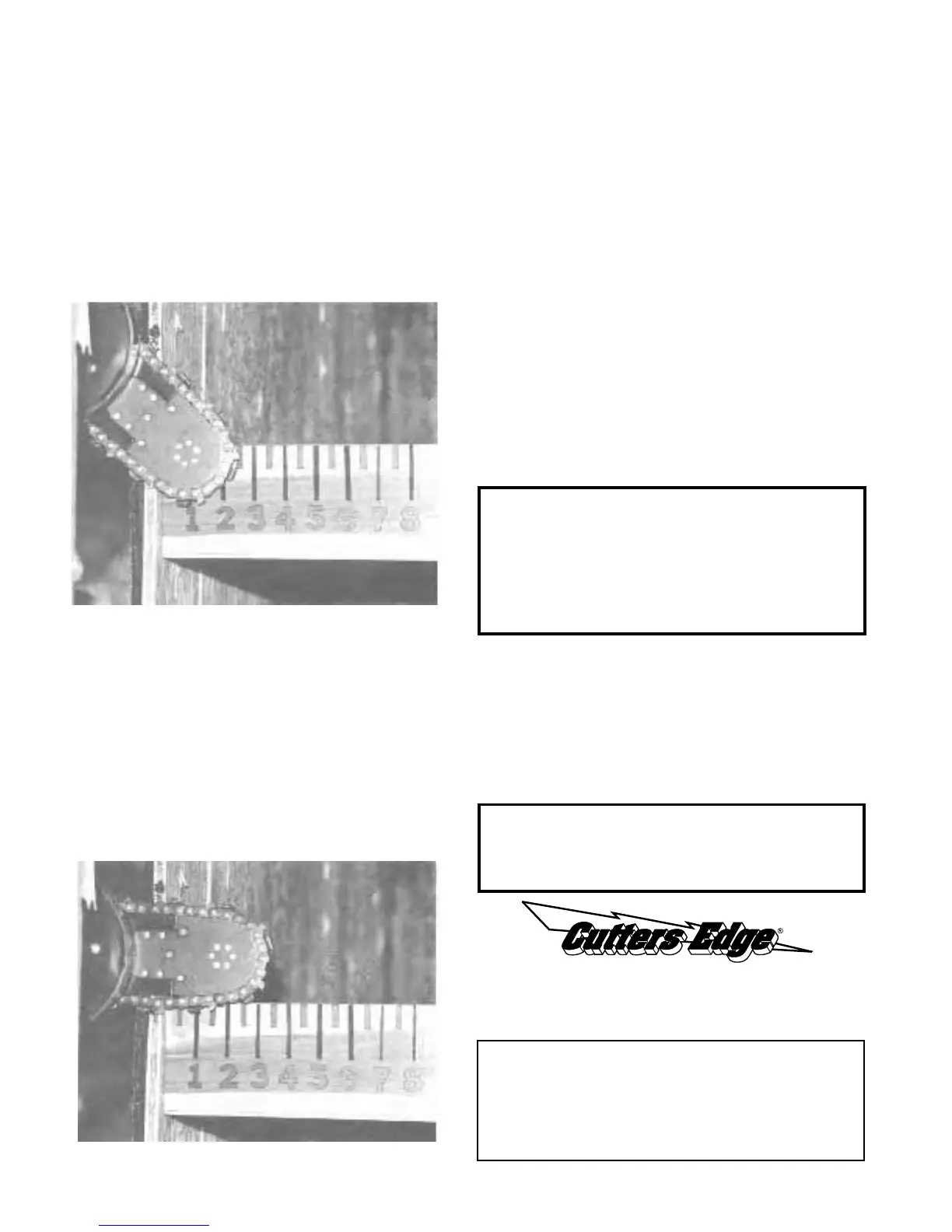

Fig. 7. Depth of cut at forty-five degrees.
In Figure 7, above, the saw is set for a cut of approximately
21/2"
inches. At the proper cutting angle of 45 degrees,
the saw penetrates to that depth.
But as you can see in Figure 8, below, the saw penetrates
another half-inch for each inch set on the D-8 - in this case
another inch, down to 31/2
inches - when the cutting
angle is raised to ninety degrees.
Fig. 8. Depth of cut at ninety degrees.
Removing the D-8.
To remove the D-8 for cleaning and/or to use your Cutters
Edge saw for conventional cutting purposes. This process
i
s simple and basically is a reversal of installation:
Remove one knob and pull out the adjusting knob shaft.
Pull off the outer section of the D-8.
Spread the inner section of the D-8 and let the stand-offs
drop out.
Remove the bar nuts.
Remove the allen-head bolts from the guard/deflector side
of the D-8.
Pull off the inner section of the D-8.
Rethread and retighten the bar nuts, while holding up the
tip of the guide bar.
Your saw is now ready for use as a conventional chain
saw.
NOTE
If you are removing the D-8 to use your saw for
conventional cutting, first setthe chain brake. This
will prevent the need to retension the chain after
you have removed the D-8.
Cleaning the D-8
It's important that the D-8 be cleaned after each use, along
with your Cutters Edge Ventilation Saw.
To clean the D-8, simply remove it as you would to
configure your saw for conventional cutting.
Wipe off all
inner
a
n
d
outer su
r
f
ace
s of
th
e
D
-8.
NOTE
Cleaning may also be done in a parts washer.
If you should have questions about the installation, operation
or maintenance of your D-8 or any Cutters Edge product,
call our service department at 1-800-433-3716.
Notice of Liability:
The information in this manual is distributed on an "As Is" basis,
without warranty. Edge Industries, Inc. shall have no liability to any
person or entity with respect to any liability, loss, or damage caused
or alleged to be caused directly or indirectly by the instructions
contained in this manual.
