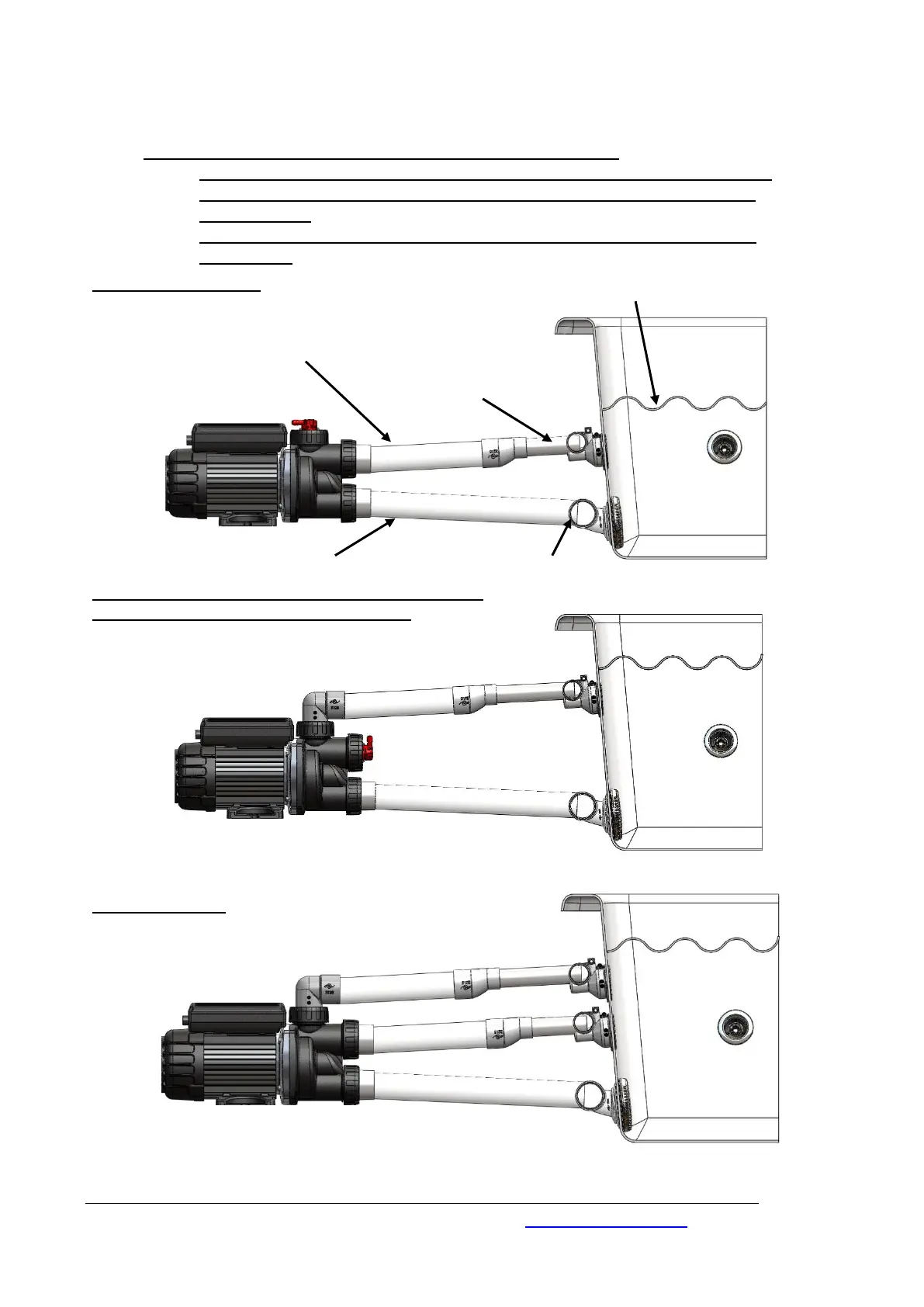

Diagram 1 Correct Spa Bath Pump Installations
Use 40mm or 25mm UPVC Pressure Pipe for plumbing installation,
40mm pipe is preferred for both the suction and return lines.
IMPORTANT REQUIREMENT FOR PUMP SERVICE:
 Pump installation must provide reasonable access for pump removal.
 To allow for pump removal a serviceman must be able to reach the
barrel unions.
 Under hob installation- an access panel must be provided on every
installation.
Return Line
Minimum 1:36 Gradient (1.5°)
Return Line
Minimum 1:36 Gradient (1.5°)
Return Line
Minimum 1:36 Gradient (1.5°)
Suction Line
Minimum 1:36 Gradient (1.5°)
Suction Line
Minimum 1:36 Gradient (1.5°)
Suction Line
Minimum 1:36 Gradient (1.5°)
Spa Jets
Water Level Minimum 50 mm Above Spa Jets
Suction
Standard Installation
Top Outlet Installation-Please note the Air Bleed
cannot be activated in this installation.
TriFlo Installation



