Page 3 of 6
Instructions
Step 1 ! Connecting the Cables

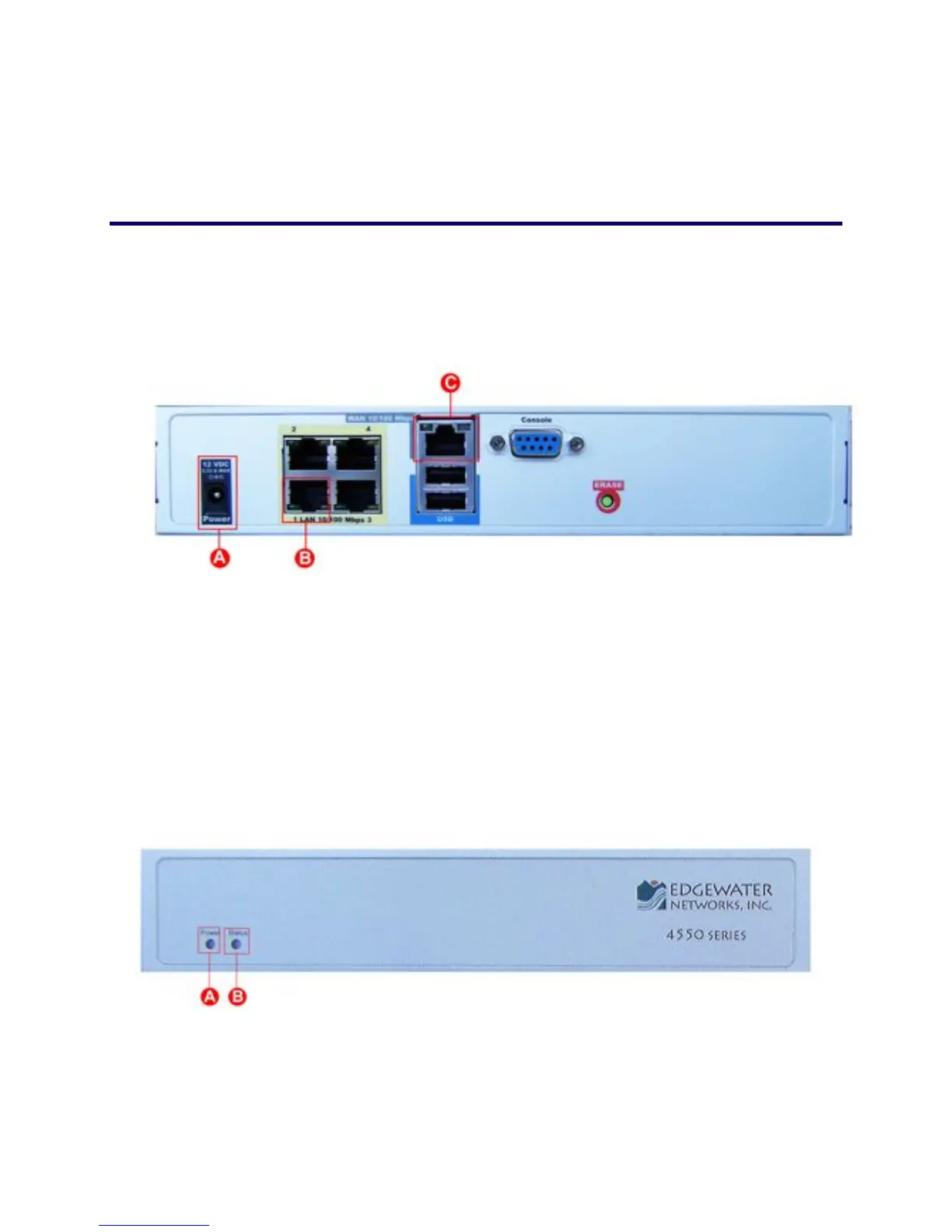

1. Connect one end of an Ethernet cable to local LAN port 1 of the 4550. This port can be
seen in the area “B” of the above diagram. Connect the other end of the cable to your
computer’s Ethernet port.
2. Connect an Ethernet cable between the Ethernet WAN port of the 4550, shown in the
above diagram as “C,” and the Ethernet port on a router or a modem.
3. Plug one end of the power adapter into an AC outlet and the other end into the power
receptacle on the 4550, shown in the above diagram as “A”. Make sure that the power
and status LEDs, shown in the diagram below as “A” and “B”, are solid green after a
short while.
