Edimax AC-M3000/AC-M1000
User’s Manual
9

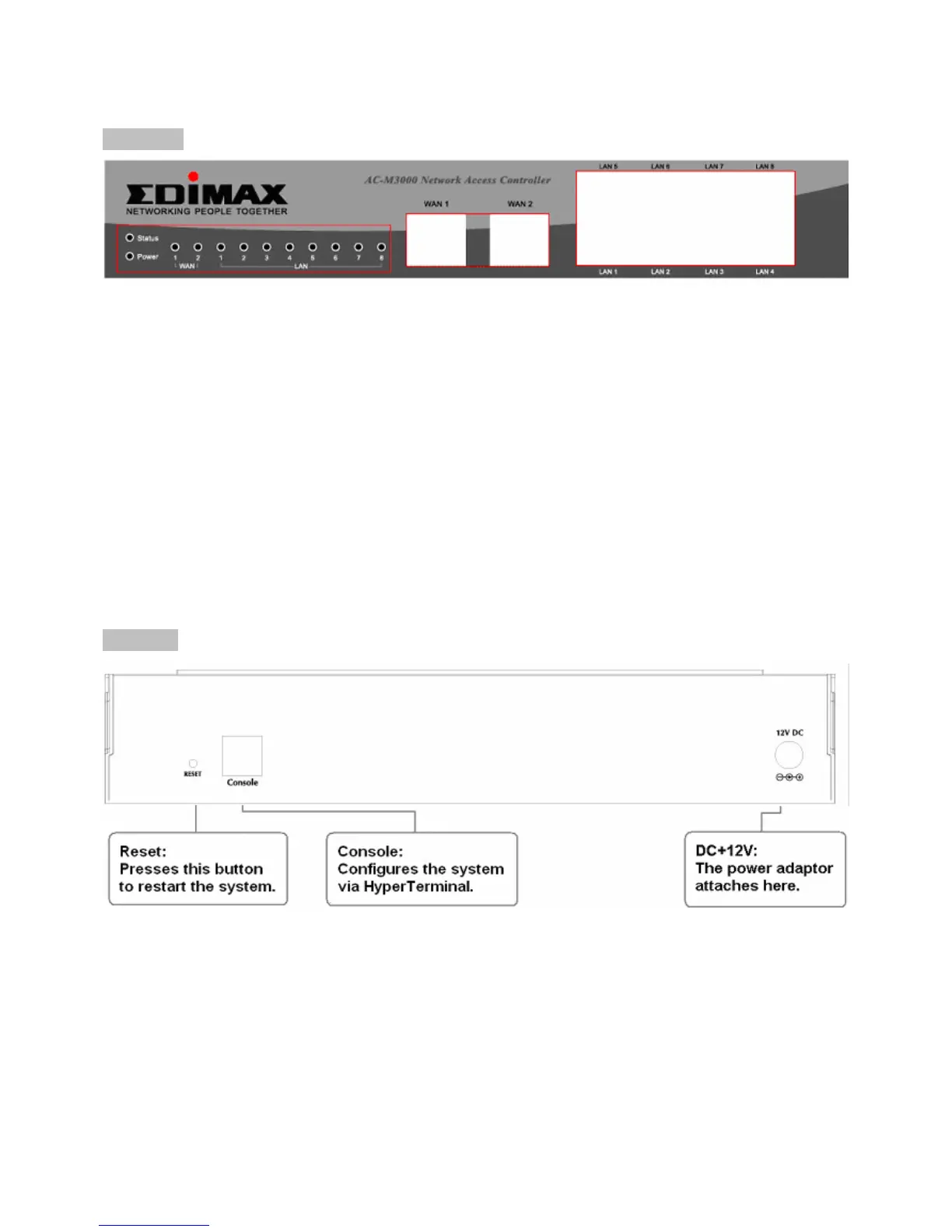

3.1.3 Panel Function Descriptions
Front Panel
y LED: There are four kinds of LED, Power, Status, WAN and LAN, to indicate different status of the system.
y WAN1/WAN2: The two WAN ports are connected to a network which is not managed by the Edimax AC-M3000
system, and this port can be used to connect the ATU-Router of the ADSL, the port of a cable modem, or a
switch or a hub on the LAN of a company.
y LAN1~LAN8: Clients’ machines connect to Edimax AC-M3000 via LAN ports. Each LAN port can be configured
to one of the two roles, controlled or uncontrolled. The differences of these two roles for a client connected to
are:
¾ Clients connected to the controlled port need to be authenticated to access network.
¾ Clients connected to uncontrolled port don’t need to be authenticated to access network and can access the
web management interface.
Rear Panel
y Reset: Press this button to restart the system.
y Console: The system can be configured via a serial console port. The administrator can use a terminal
emulation program such as Microsoft’s HyperTerminal to login to the configuration console interface to change
admin password or monitor system status, etc.
y DC+12V: The power adapter attaches here.
