Edimax AR-7287WnA User Manual

User Manual

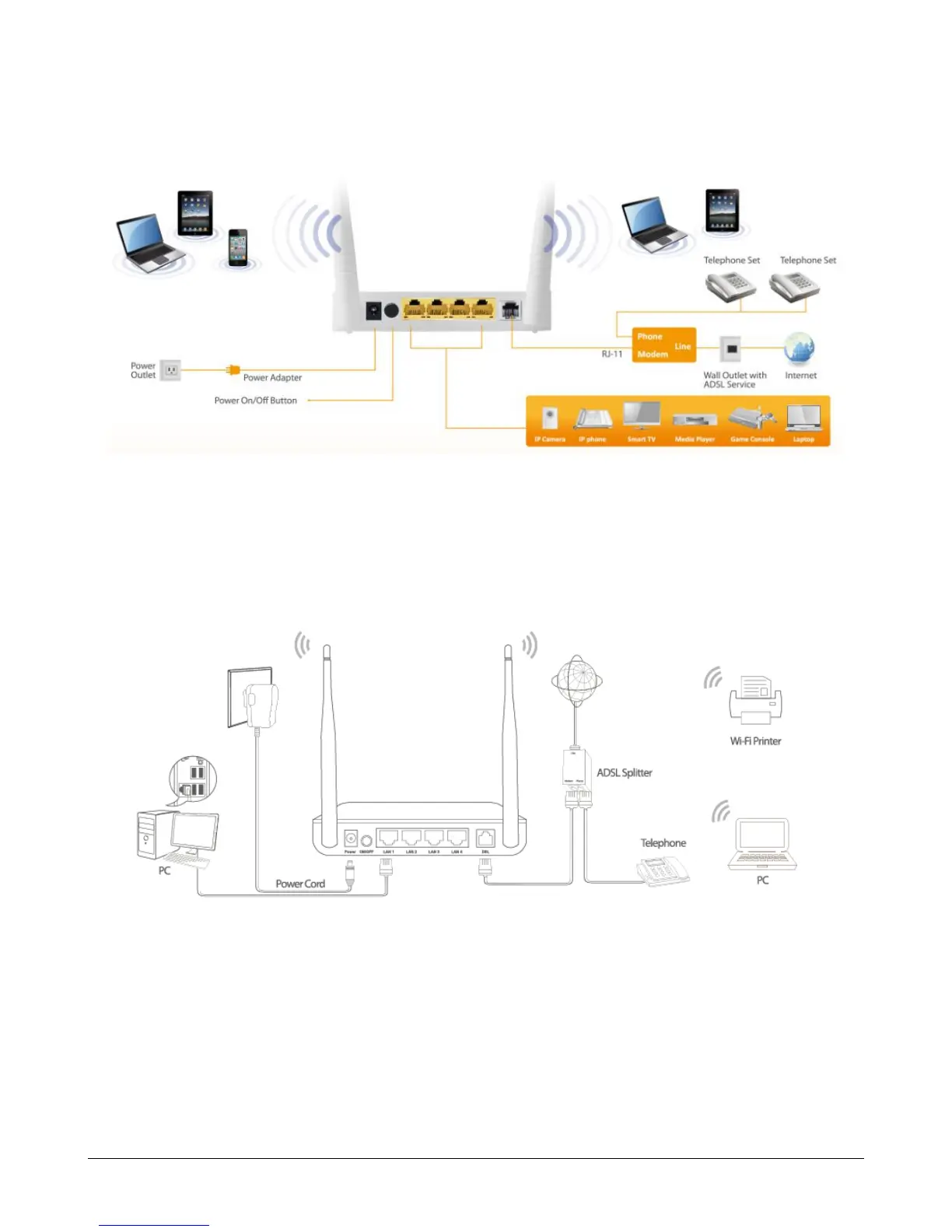

The following diagrams show how to correctly connect the router, PC, splitter
and the telephone sets under two different configurations:
Configuration 1
0 shows the correct connection of the router, PC, splitter and the telephone
sets, with no telephone set placed before the splitter.
Figure 1 –Connection diagram
(Without connecting telephone sets before the splitter)
Configuration 2
0 shows the correct connection when a telephone set is installed before the
splitter.

Edimax AR-7287WnA Specifications

General

Brand	Edimax
Model	AR-7287WnA
Category	Network Router
Language	English
