5
- Do not position the unit near any heating source such as a heater, radiator or
in direct exposure to sun.
- Take care to ensure the unit does not come into contact with water. Consider
using a dehumidifier to reduce humidity and prevent moisture entering the
unit.

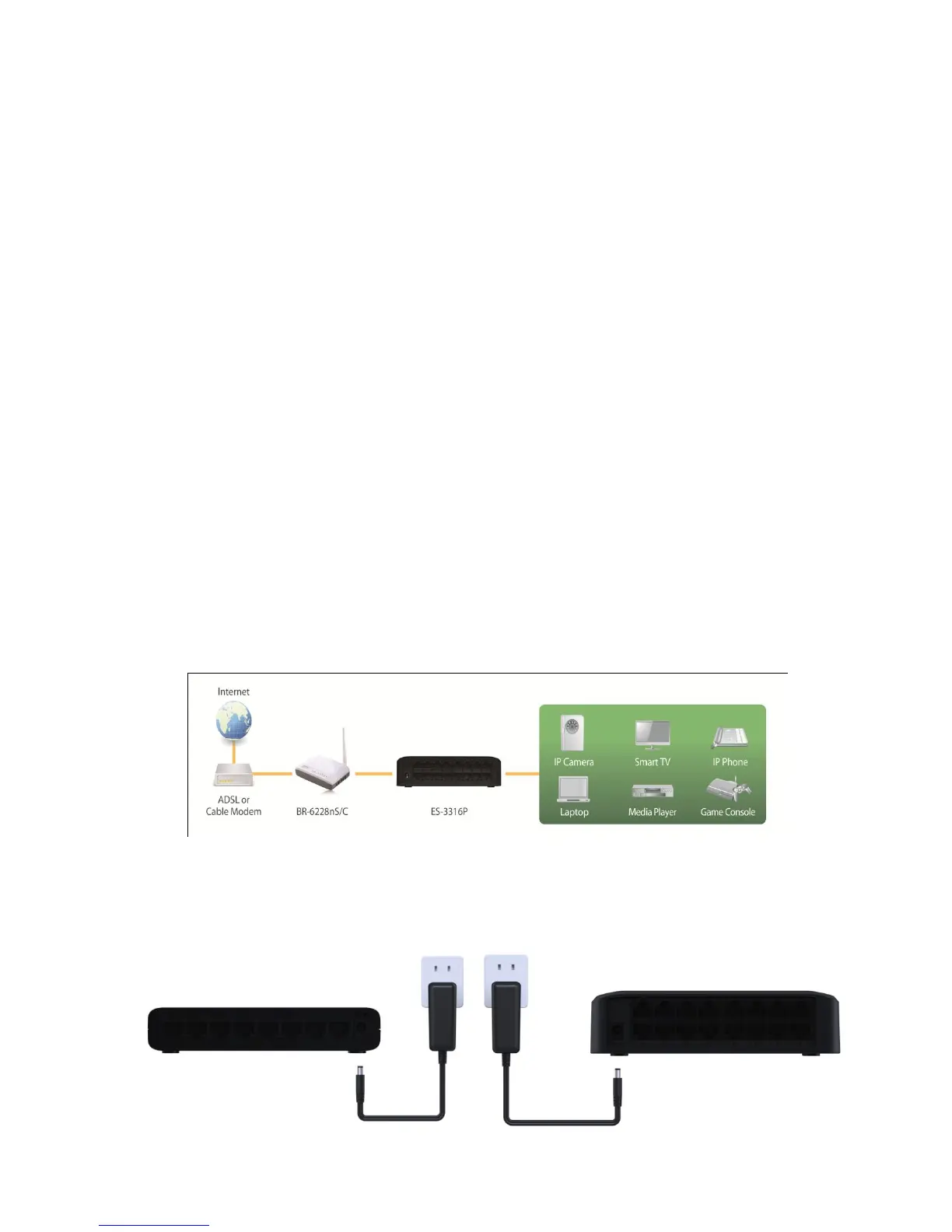

Connecting to network devices
The RJ-45 ports on the switch support Auto-MDI/MDI-X which allows both
straight-through or cross-over type cables to connect this switch to a workstation
or hub.
Connect one end of the network cable to the RJ-45 port on the rear panel, and
connect the other end of the network cable to the RJ-45 port on the network
device. Follow the same procedure to connect all RJ-45 ports of the switch.
The UTP network cables must comply with EIA/TIA 568 specifications and
Category 5 standard for data transmission. The maximum length for a UTP cable
segment between the switch and connected devices is 100 meters (300ft).
Once the network cable is connected to both ends and the attached network
device is powered on, the green LNK/ACT LED should be lit.
Connecting the power
Connect the power adapter to the power connector of the unit; the green power
LED on the front panel should be lit.
ES-3305P/ES-3308P ES-3316P
