I-3. LED Status
Function
Status
Description
Data Rate:
10/100/1000M
On (Amber)
Port is connected, Link at 10/100M
On (Green)
Port is connected, Link at 1000M
Off
Port is disconnected or link failure
Flashing
(Amber or Green)
Sending or receiving data
PoE
On
Feeding power to PoE devices
Off
PoE function is not active
SFP
On (Green)
Port is connected, Link at 1000M
On (Amber)
Port is connected, Link at 100M
Flashing
(Amber or Green)
Sending or receiving data
PoE/Alert
On
Total PoE power consumed is
exceeding PoE power budget
Off
Total PoE power consumed is under
PoE power budget
SYS PWR
On (Green)
System Power on
Off
System Power off

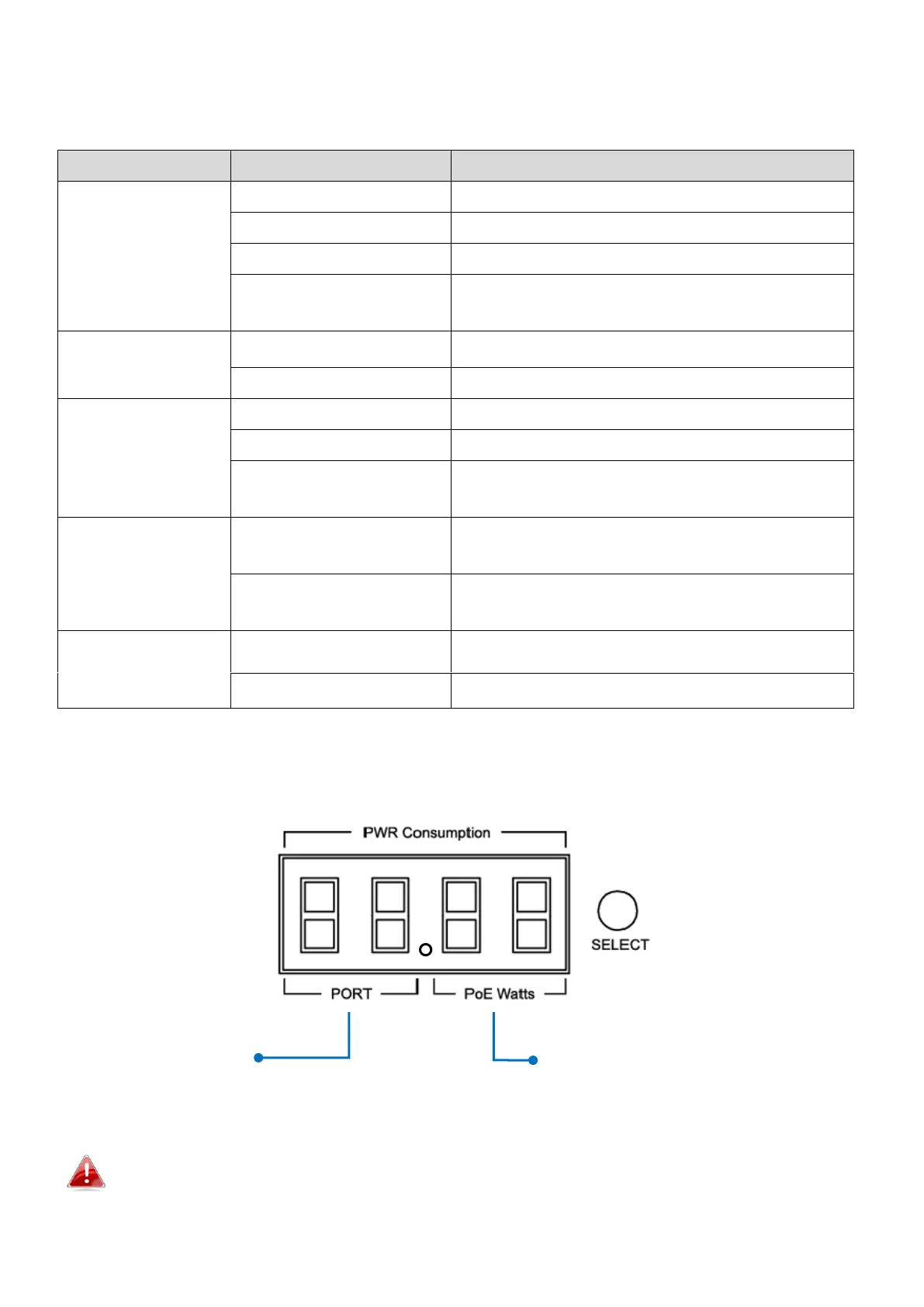

7-Segment LED Power Consumption Status
(GS-5216PLC & GS-5210PL ONLY)
Note: The LED indicator shows you the status of “Total PoE Power Budget” or
“PoE Power Budget Left” when 3 LED indicators are lighted on
1
2
Port #
PoE Power Consumption
(Watts) of the Port
