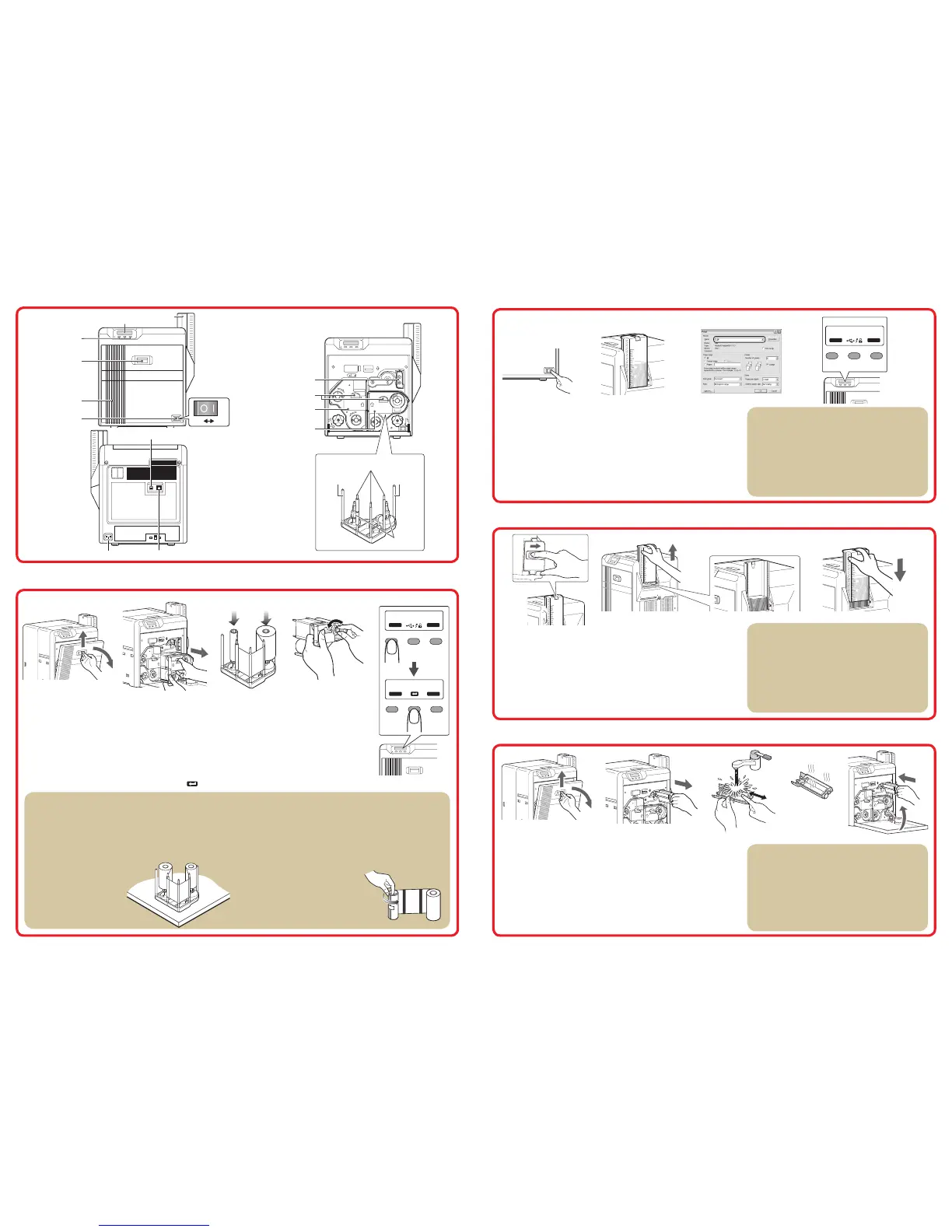

Name of Parts
Loading Cards
Set the card hopper knob to [open].
Lift to remove the card hopper cover.
Align the orientation of the cards, and set them in the printer.
Install the card hopper cover.
1.
2.
3.
4.
Replacing the Ink Ribbon/Retransfer Film
Open the printer door.
Press and hold down the cassette button, and pull out the cassette (right: ink ribbon cassette/left:
retransfer film cassette) to remove the ink ribbon/retransfer film.
Install a new ink ribbon/retransfer film.
Install while referring to the adhesive label on the cassette.
With the inked/retransfer surface facing outward, unwind the ink ribbon/retransfer film along the three shafts,
and insert it firmly into the bobbin holders.
Remove any slack in the ink ribbon/ retransfer film, and insert the cassette along the guide rail until
a “click” sound is heard.
Close the printer door, and press [RESET] to reset the printer.
1.
2.
3.
•
•
4.
5.
Maintenance of Cleaning Rollers
Open the printer door.
Pull out the cleaning unit.
Wash the cleaning rollers with water.
Wash the roller unit with water, and remove any dirt from the surface of the
cleaning rollers.
Allow the cleaning rollers to air dry.
Install the cleaning unit, and close the printer door.
1.
2.
3.
•
4.
5.
Turn on the power.
Check to ensure that cards are inserted into the card hopper.
Open the print settings screen, and select this printer in [Printers].
After ensuring that a [Ready] message appears on the LCD control
panel of the printer, start printing.
1.
2.
3.
4.
Printing Cards
Stand the cassette on a flat surface as illustrated in the diagram.
Remove any slack in the ink ribbon/retransfer film. Failure to do so may
cause jams or result in uneven colors due to wrinkles on the surface.
Do not touch the inked/retransfer surface (the side that faces
outward when installed) with your hand. Put on the supplied
gloves when handling the ink ribbon/retransfer film.
Do not perform work on the printer door. Do not place heavy
objects or apply load on the printer.
When installing a new retransfer
film, make sure that at least three
black lines are wound onto the
winding shaft.
•
•
•
•
•
[Front] [When printer door is open]
Precautions
If the security function is turned on, the card hopper will be
locked. Turn off the security from the computer. After loading
the card, turn on the security again from the computer.
When a [Loading] message appears on the LCD control
panel, do not open the card hopper.
Direct contact of your hand with the printing surface of the
card may result in printing errors.
When inserting new cards, they may be adhered to each
other due to static, thus causing card jams. Separate the
cards one
by one before setting them in the printer.
•
•
•
•
Precautions
If the security lock function is turned on, turn off the function
from the computer to unlock the printer. After closing the door,
turn on the function again from the computer.
When replacing the ink ribbon/retransfer film, hold the cassette
with both hands.
When installing a used ink ribbon, align the yellow side of the
unused ribbon with the arrow
indicated on the label of the
cassette.
When installing a used
retransfer film, align the
unused side of the film with
the arrow indicated on the
label of the cassette.
•
•
•
•
Precautions
If the security lock function is turned on, turn off the function from
the computer to unlock the printer. After closing the door, turn on
the function again from the computer.
After washing, allow the cleaning rollers to dry completely
before installing them to the printer.
Do not use alcohol or detergents.
Printing errors may occur if the dust removal capability of the cleaning
rollers deteriorate. Make sure to clean the rollers at the end of the work.
Replace the cleaning unit with a new one after using it for
about one year. For details on replacement of the cleaning unit,
please consult our authorized dealers.
•
•
•
•
•
[Cassette]
Precautions
If you see a [Initializing...] or [Preheating...] message
on the LCD control panel of the printer, this means the
printer is not ready yet. Printing cannot be performed
until the printer is ready.
Printing the card on the side with the magnetic stripe
may cause printing errors or damage to the card’s
functions. If you want to do so, consult our authorized
dealers in advance.
•
•
[Rear]
4321
