Edision MULTI-FINDER - Satellite Installation and Analysis; Satellite Installation Guide; Constellation Chart

9
4 Satellite Installation, here you can congure everything regarding
the satellite services, add new satellites or transponders, move a
motorized antenna and measure the received signal.
4 Constellation chart, will help you to detect a bad reception by
showing the representing on the screen with modulation dots.

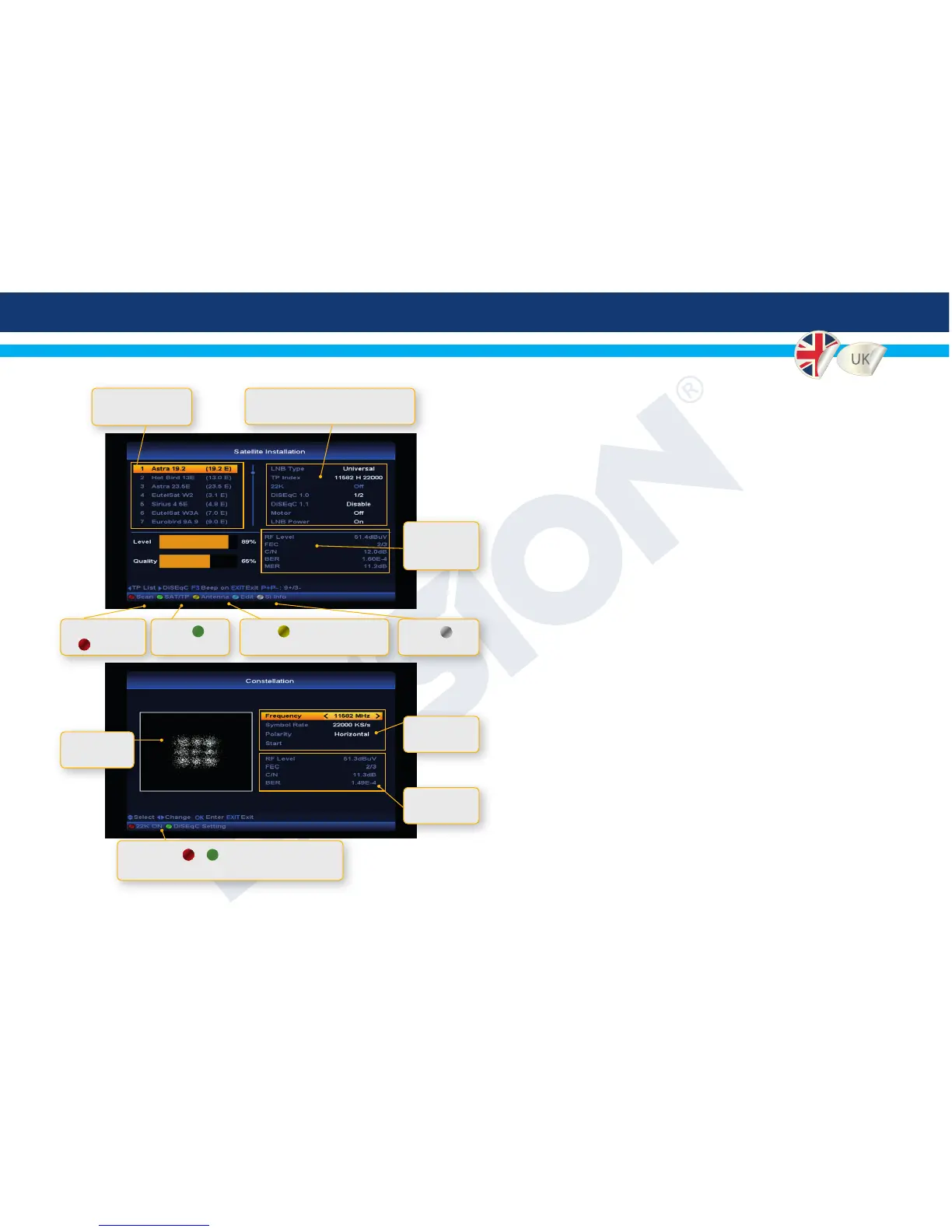

Available
Satellites/TP List
Press
to scan
Constellation
diagram
Select tune
parameters
List of mea-
surements
Press to
switch list
Press to switch between
list and configuration mode
Use & key to configure
the DiseqC parameters
Press to
fetch SI info
List
of measure-
ments
Main satellite parameters
(user can change it using V- V+)
