1. Front grille
2a. Front grille band
10.
Upper column knob
3. Spinner
15. Inner base
4. Fan blade
16. Outer base
5. Plastic nut
12. Adjustable column
(for pedestal fan)
17. Plastic base locking nut
6. Rear grille with handle
18. Remote control
7. Motor shaft and housing
13. Height adjustment
locking nut (for pedestal fan)
8. Upper column
2b Rear grille band
14. Lower column (for pedestal fan)
20. Snapping lock pin
21. Lock screw

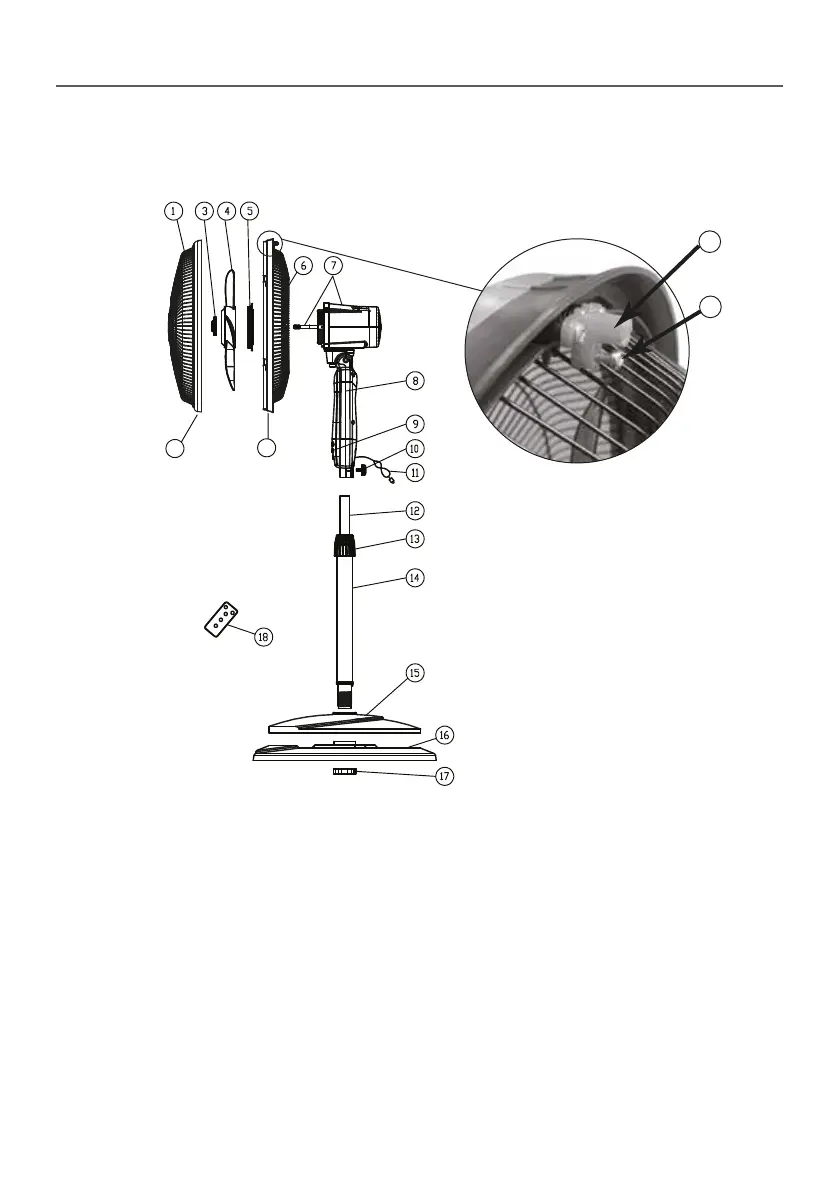

Fig. 1
PARTS OF THE FAN (FOR PEDESTAL USE)
9.
Control panel
11. Power cord
2a
2b
20
21
REF. 33968
INSTRUCCIONES IMPORTANTES DE SEGURIDAD
INSTRUÇÕES IMPORTANTES DE SEGURANÇA / IMPORTANT SAFETY INSTRUCTIONS
