EFA SL 50/ 18 - Page 30

Schmid & Wezel
D-75433 Maulbronn
Seite/ Page
29/ 31
Ausführung/ Version
10.2007
A.6.2 42 Volt

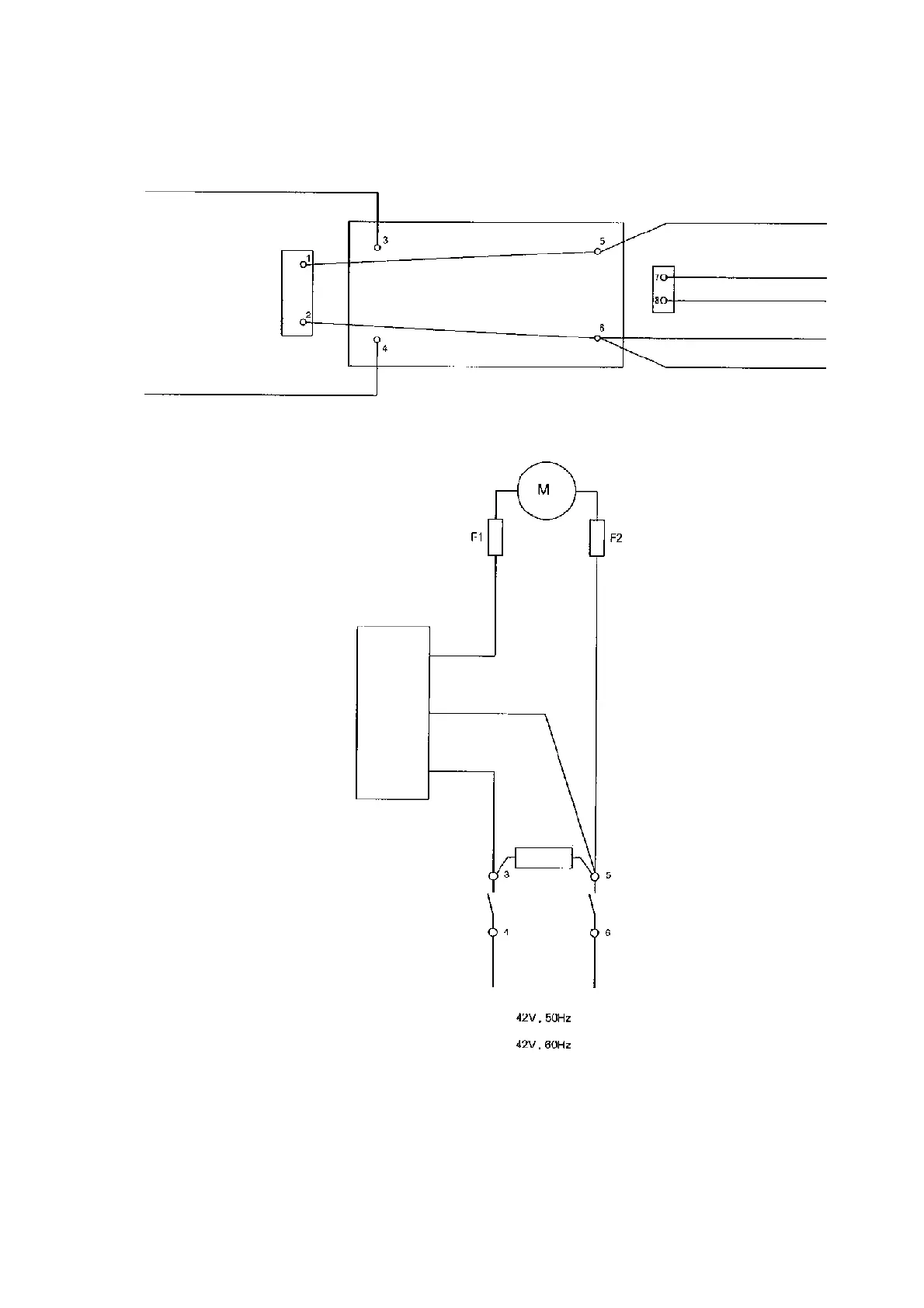

Anschlusskabel blau/
Connecting lead blue
Kond./ Cond.
Connecting lead brown
Anschlusskabel braun/
Schalter/
Switch
Soft-Start el. blau/ Soft-start lead blue
Feld rosa/ Stator pink
Soft-Start el. rot/ Soft-start lead red
Soft-Start el. grau/ Soft-start lead grey
Feld rosa/ Stator pink
Soft-Start/ Soft-start
rot/
red
grau/
grey
blau/
blue
Kond./
cond.
Netz/
grid
