INSTALLATION

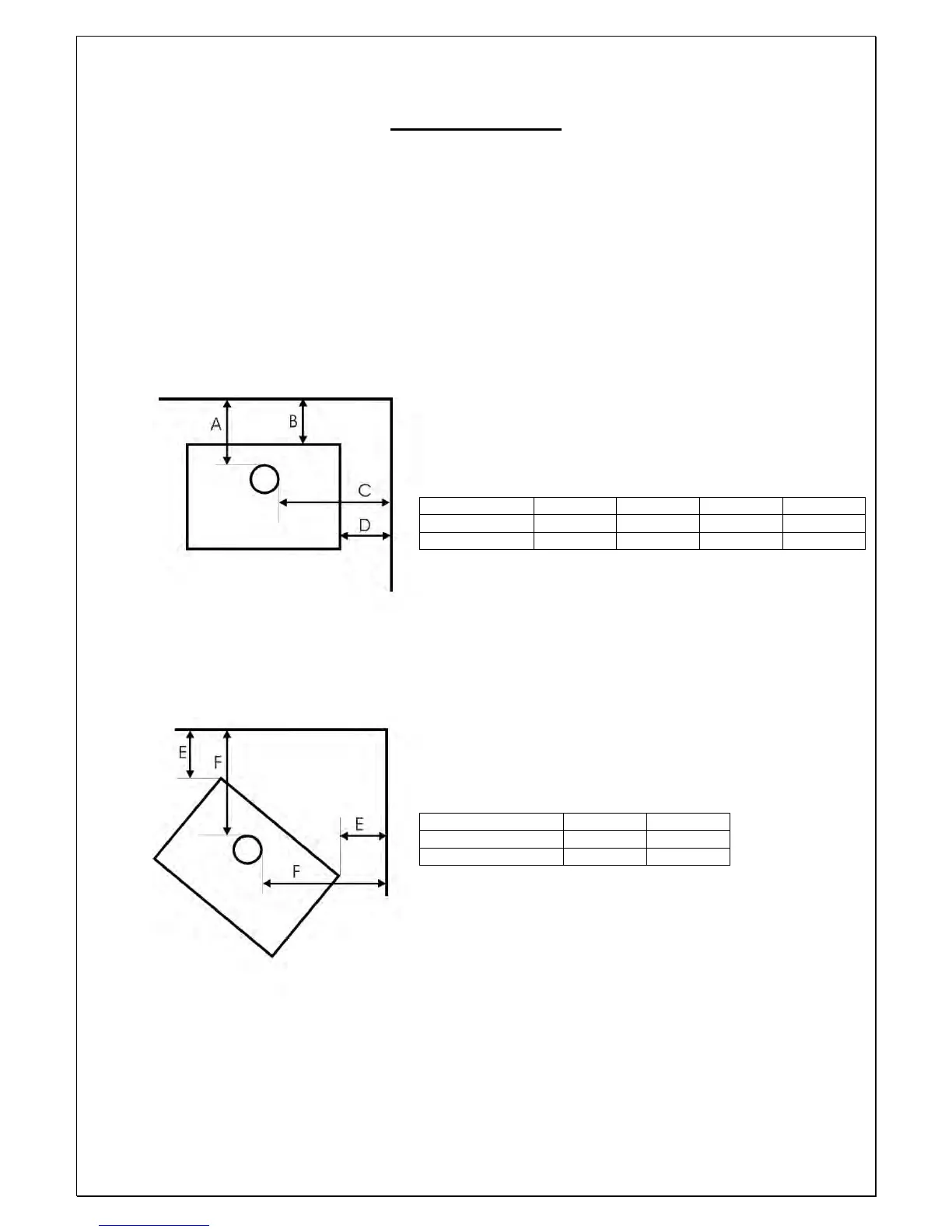

Clearances to Combustibles - Stanford 80 & Harmony I
The following clearances may only be reduced by means approved by the regulatory
authority.
Refer to chart for single or double wall pipe
Back and Side Wall Clearances
Connector pipe A B C D
Single wall 27.5’’ 24’’ 27’’ 18’’
Double wall 21.5’’ 18’’ 27’’ 18’’
Minimum Ceiling Height: 7’
Corner Clearances
Connector pipe E F
Single wall 19’’ 27’’
Double wall 11’’ 19’’
Minimum Ceiling Height: 5’
