Even after the circuit-breaker is switched off, individual sub-assemblies
and components of the photovoltaic solar inverter still have a life-
threatening level of voltage charge.
You should make sure that all the sub-assemblies and components of the
photovoltaic solar inverter are voltage-free before starting work.

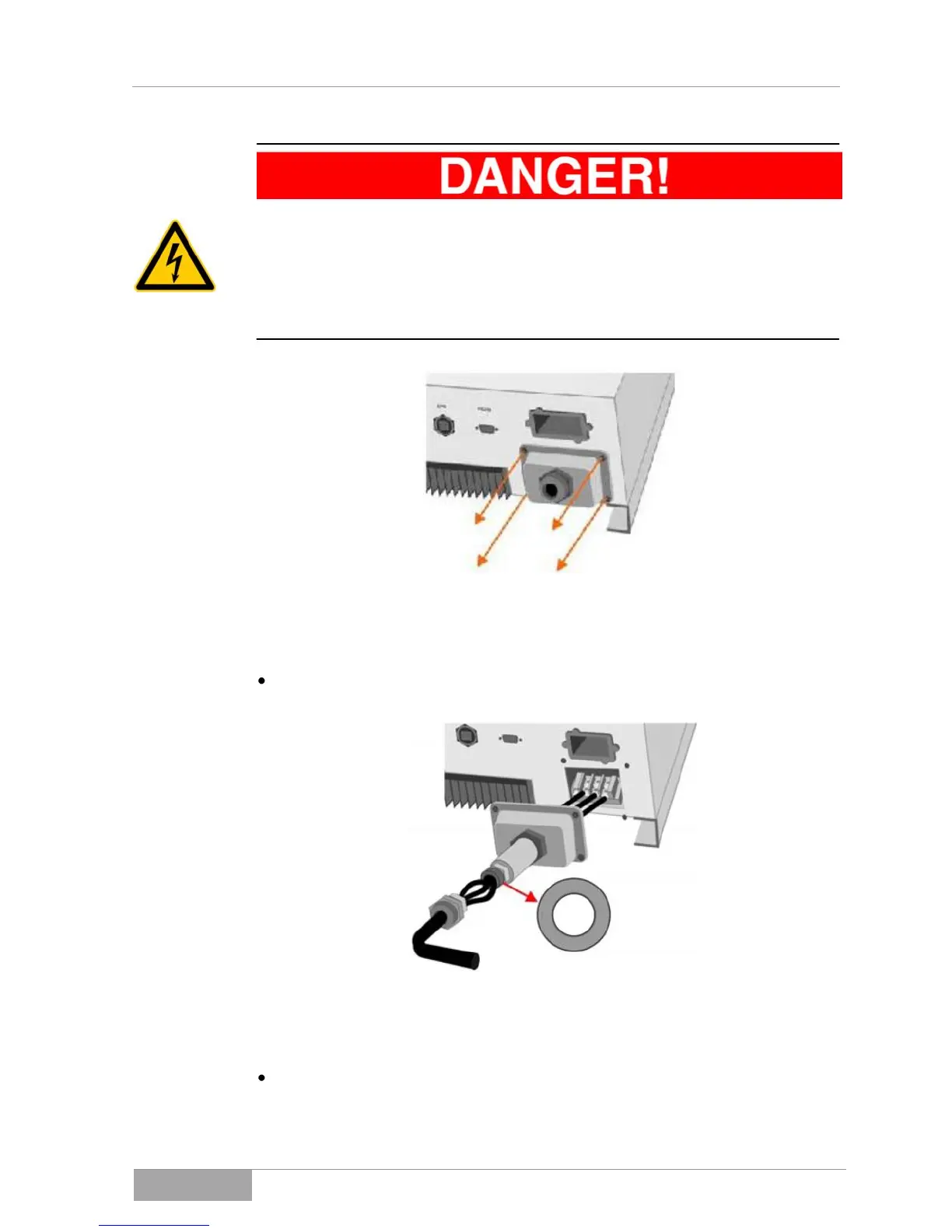

Fig. 5-1 - 2 Removing cable inlet
Loosen the screws of the cable inlet and remove it.
Fig. 5-1 - 3 Cable inlet
Insert the supply cable through the cable inlet and connect the wires as
indicated on the splitter:
