OVENS MOD. EASY PIZZA : P134H-P150H-P234H-P250H Pag. 2 / 4
MANUALE ISTRUZIONI
Forni Elettrici Professionali mod.
“EASY PIZZA”
Release
02 - 2014
INSTRUCTIONS MANUAL
Professional Electric Ovens Line
“Easy pizza”
Release
01 - 2015
CONNECTION TO THE ELECTRICAL NET
• For P134H, P234H and P150H
The connection to the electrical net and set in motion of the appliance must be done by a qualified and experienced installer , following the technical
rules and regulations of the Country of installation.
Prepare a line trunk near the equipment, so that the cable installed, can reach the wall socket. Do not use extension cables for this connection. Install a
tape to hold the installation tools. The appliance must be connected to the net by cable H05RN -F oil-resistant (included) . The product data plate shows
power and features required for the connection . The professional installer should verify that the installation environment is responding to current
regulations in the Country of use of the equipment :
- A cable H05RN -F 3x1 , 5 mm ² section with suitable plug type ( included);
- Line switch / sectioner and suitable socket type;
- Thermal unfastener and circuit breaker with sensitivity characteristics commensurate with the escape current of the heating elements. These
components must be installed on user care and responsibility , close to the point of installation of the equipment.
The appliance must be connected to ground through an efficient safe system. Perform accurate both visual and instrumental controls of the conditions
and characteristics of the ground plan , restoring if necessary .
- P134H, P234H and P150H have cable H05RN-F section 3x1,5 mmq oil resistant and homologated schuko plug 220/230V.
• For P250H
The link to the electrical network and put in service of the device must be done by a specialized and expert technician, following the technical and
normative arrangements of the country of installation. Arrange a line log near the equipment, so that the installed cable, can reach the power plug. Do
not use extension cables, for this link. Install a box to contain the installation devices. The appliance must be connected to the network power supply
through a three-phase feeding cable, with neutral of adequate length, with a yellow/green line of earth. To the extremity must be installed a unified CEE
socket, in conformity with the standard IEC 309-2 "sockets and plugs for industrial use" of the type suitable for the feeding tension and for the nominal
current absorbed by the device, as indicated on the electrical diagram and in the section “Technical Characteristics”. Refer to the information listed on
the Technical Data Plate.
The specialized installer must install the following components in compliance with current standards in the Country in which the unit will be used:
- a wiring cable with suitable electrical socket and plug;
- a disconnection switch;
- a thermal disconnector and differential switch whose sensitivity is suitable to the current leakage from the
heating elements. It is user's responsibility to install these components near the location where the unit has
to be installed. The unit must be connected to the ground by means of an efficient system. Carefully check
the conditions and features of the ground system both visually than with instruments. Repair it if necessary.
Make the connection according to the indicated technical procedures; respect the cyclical sequence of the
connection of the phases and the wire color codes:
- L1 – phase R Position on the Terminal Block: 1
- L2 – phase S Position on the Terminal Block: 2
- L3 – phase T Position on the Terminal Block: 3
- N – Neutral – Light Blue colour.
Position on the Terminal Block: 4-5 linked by bridge
- Earth = protection wire – stripped Yellow/Green colour.
For “P250” model a 5x1,5 mm2 wire is allowed.
When you have finished to connect the equipments for the oven's power supply protection, make a
functioning test using the instrument for testing the differential switch's efficiency.
Verify that the oven absolutely doesn’t contain any type of combustible or other objects. Check that the oven can be activated for the preliminary test.
Do not remove any protection board from the oven.
Make sure that the unit’s main power switch is on the O/OFF position. Turn the thermostat knob to set an average temperature of approximately 150° C.
Turn the power switch to I/ON, so to heat the oven. Verify that the current is being absorbed and that all the installed heating elements are correctly
functioning.
Wait until the circuit is interrupted by the thermostat and turn off the main power switch to zero. Now the oven's functioning has been verified.
After the equipment has been connected and the functional test of the oven has been performed, the installer must issue the required declaration that
the work has been performed perfectly.
The appliance must be connected to an equipotential system whose effectiveness must be verified in accordance with the regulations in
force. This connection must be made between different devices using the appropriate terminal which is marked with the symbol in the
figure. The equipment must be connected to the ground line of the power grid. The bonding conductor shall have a minimum cross section
of 2.5 mm2. The equipotential terminal is located on the back of the oven.
FIRST IGNITION
Clean up the inner side of the oven with a humid cloth and dry well. Read the section OVEN CLEANING.
Before the first use, let the equipment to work empty at least for 30 minutes in order to eliminate the smell of “new” and a small smoke which are caused
by the first ignition of the resistances. During this operation air the room.

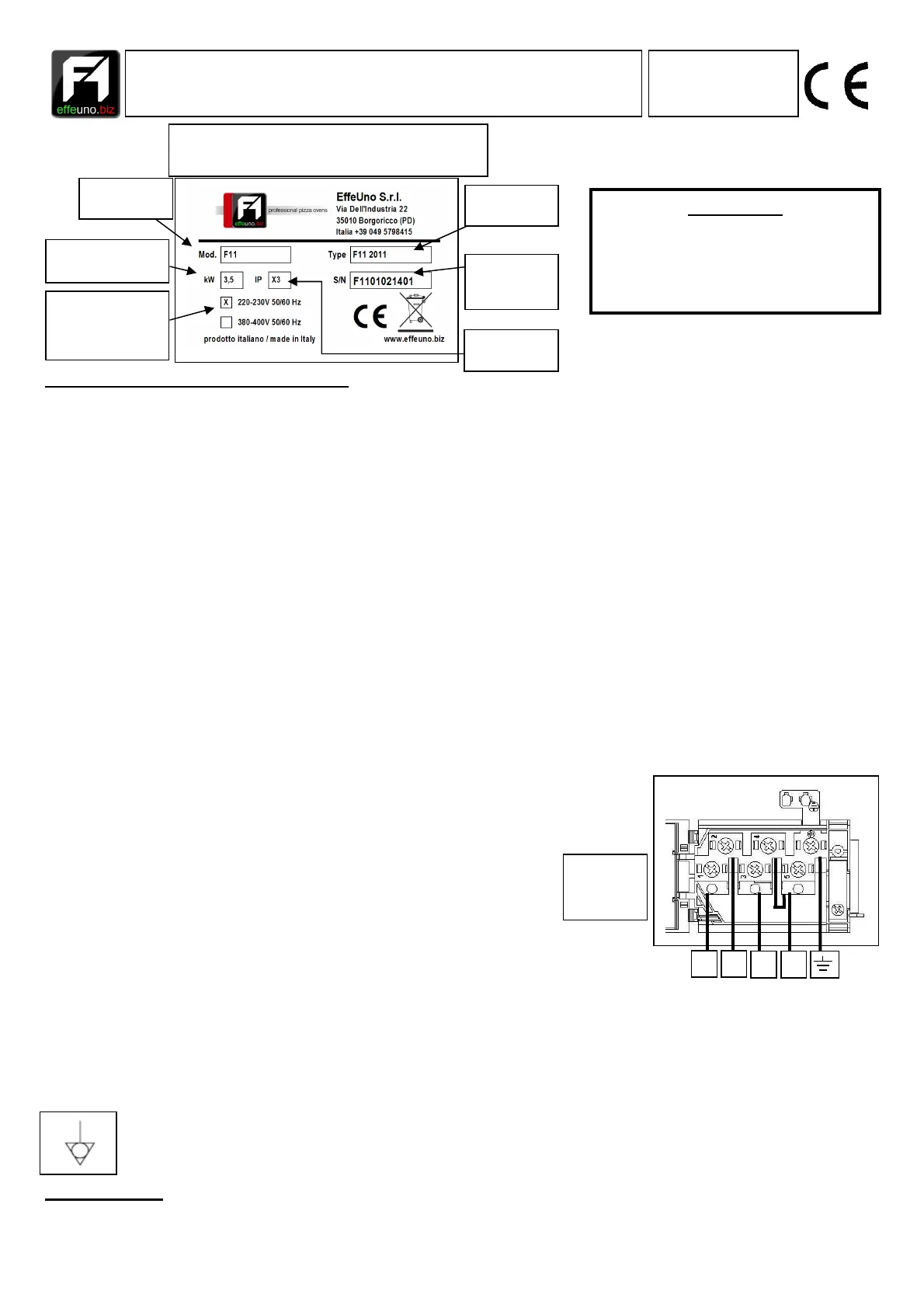

Terminal block
placed on the
rear side of the
appliance
.
R S
T N
placed on the back of the appliance.
IP protection
level
Appliance electric
power
Voltage power
and electrical
network
Product
model
Product
Code
Product
Serial
number
In order to obtain a substantial and effective
extension of the reliability of the regulation
thermostat, we expressly suggest you to bring
back the regulation index in position
“zero” only
when the oven is cold.
