EG4 PDP-120A-240 User Manual

4
Two Bus Bars (Common Neutral and Common Ground)
# of Connections
8 (max)
Torque
20-35 in-lbs. (2.25–3.95 Nm) See next
section
Min Wire Size
12 AWG
Max Wire Size
6 AWG
Wire type
Stranded or Solid
Torque Values for Ground and Neutral Bus Bars
Wire Size
Torque Value
10-14 AWG
20 in-lb (2.25 Nm)
8 AWG
25 in-lb (2.82 Nm)
6 AWG
35 in-lb (3.95 Nm)

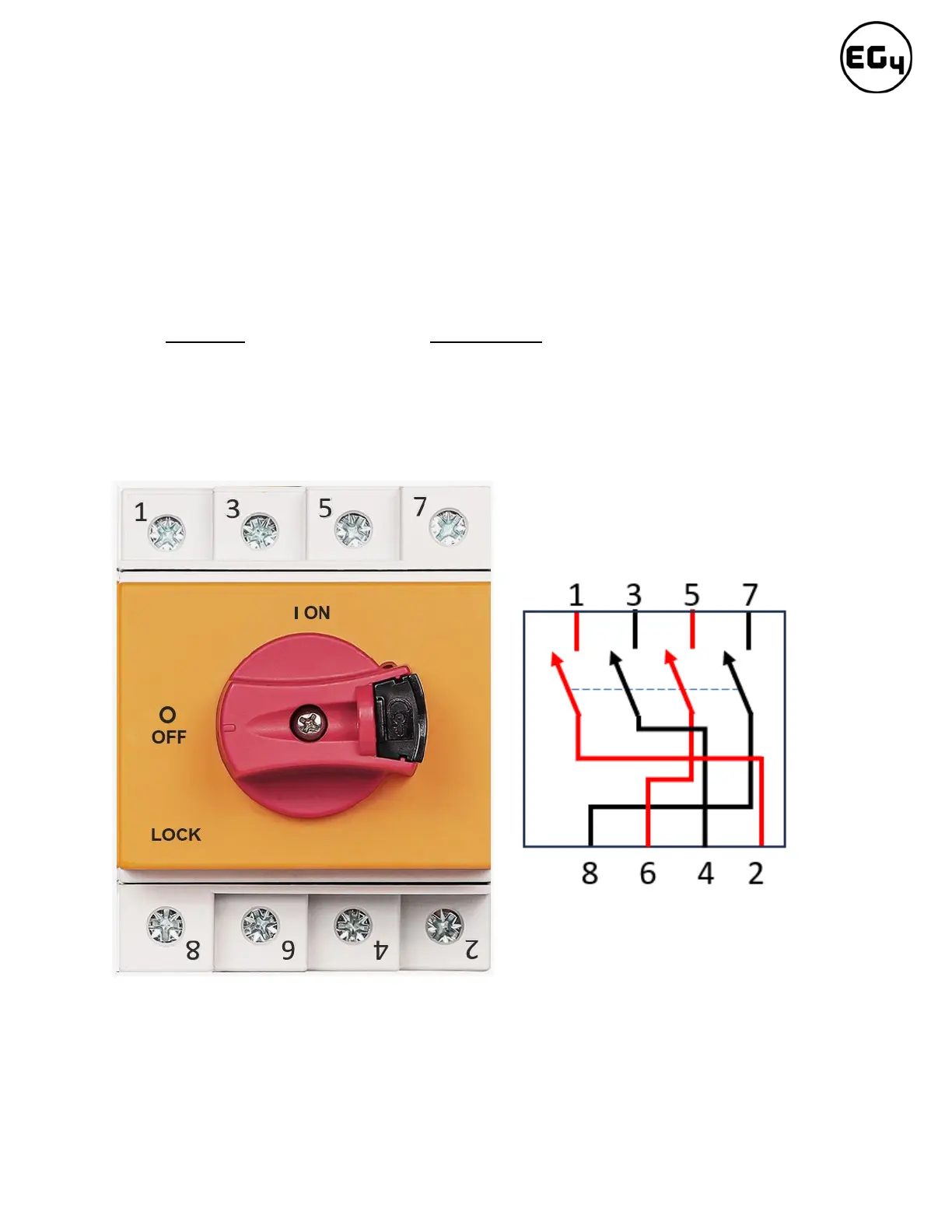

PV Disconnect Schematic
