Eglo NOOSA - Before Installation; Specifications; Tools Required

5
NOOSA Ceiling Fan
BEFORE INSTALLATION:
• Carefully unpack your fan on a soft surface to avoid damage to the fan finish.
• Do not lay the motor housing on its side, as the decorative housings may become bent or damaged.
• Check that all parts are present before commencing assembly. Refer to Parts List.
• If any parts are missing, carefully check the packaging, polyfoam and plastic bags for the missing parts, and if they
cannot be located, contact EGLO for assistance before commencing assembly or installation.
SPECIFICATIONS:
Model-No. Input V
Motor
Wattage
LED
Light Weight
52“ With Light 202969
202971
204115
204116
204117
204747
220-240V 24W 18W 6.3 Kg
60“ With Light 202972
202973
204231
204232
204233
204749
220-240V 37.6W 18W 6.8 Kg
52“ No Light 203369
203371
204112
204113
204114
204746
220-240V 24W - 6.0 Kg
60“ No Light 203372
203373
204227
204228
204229
204748
220-240V 37.6W - 6.4 Kg
TOOLS REQUIRED:
• Phillips head screwdriver
• Flat head screwdriver
• Pair of pliers
• Wire cutter
• Ladder
• Wiring supply cable as required by
AS/NZS 3000 wiring rules.
Note: The use of electric drivers can overtighten the screws and damage threads, DO NOT use power tools for tightening screws.
Blade Plate
Blade
Nut
Lock Pin Nut
Screws & Washers
R Pin
Lock Pin
Coupling Lock Pin
Coupling Lock Pin Nut
Coupling R Pin
Coupling Screws & Washers
Canopy
Hanger Bracket
Pin
Canopy Screws

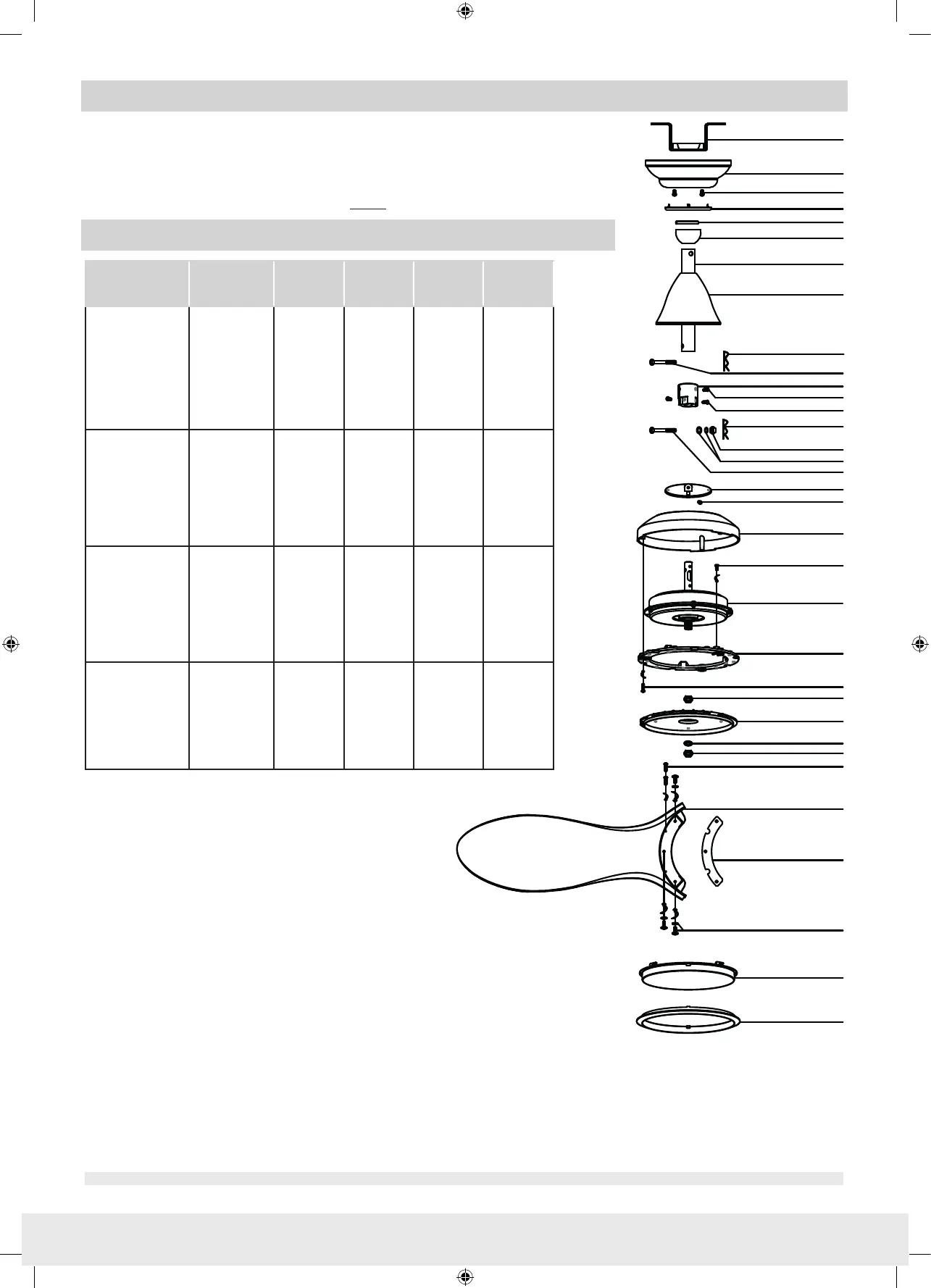

Explosion Diagram & Parts
Hanger Ball
Canopy Cover
Screw
Blade Screw
Decorative Ring
Light Shade or Bottom Plate
Light Plate
Washers
Nut
Blade Holder
Screw
Motor
Screw
Upper Motor Housing
Screw
Plate
LED Driver
Screws
Coupling Screws
Coupling Cover
Downrod
Coupling (Yoke)
Coupling Screws
R Pin
Blade Plate
Blade
Nut
Lock Pin Nut
Screws & Washers
R Pin
Lock Pin
Coupling Lock Pin
Canopy
Hanger Bracket
Pin
Canopy Screws
Explosion Diagram & Parts
Hanger Ball
Canopy Cover
Screw
Blade Screw
Decorative Ring
Light Shade or Bottom Plate
Light Plate
Washers
Nut
Blade Holder
Screw
Motor
Screw
Upper Motor Housing
Screw
Plate
LED Driver
Screws
Coupling Screws
Coupling Cover
Downrod
Coupling (Yoke)
Coupling Screws
