GRASS BAGGER — ABK42008

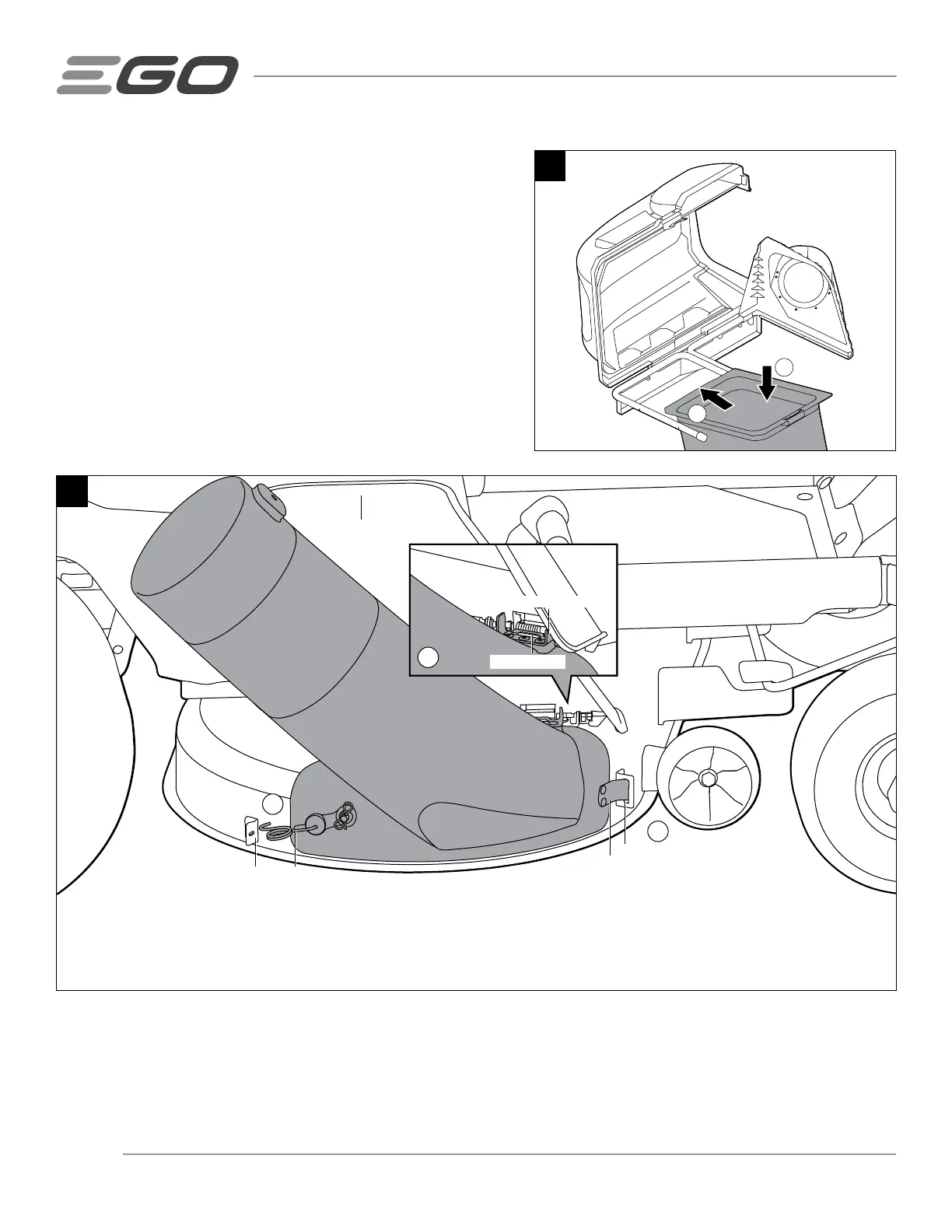

6. Install both bagger assemblies onto the top cover assembly

by inserting the front edge in rst, and then setting the back

edge down until it ts into the assembly as shown in Fig. 7.

7. With the side discharge chute of the mower raised up and

held open, install the lower chute tube assembly on the

mower by following these three steps (Fig. 8):

a. Insert the mounting plate into the attachment slot of the

mower.

b. Align the supporting plate on the mower with the slot of the

mounting holder and insert in it.

c. Stretch the spring hook to secure it to the catch hole of the

mower.

Side Discharge Chute

Mounting Holder

Supporting Plate

Attachment slot

Mounting Plate

Catch Hole Spring Hook
