9GRASS BAGGER — ABK4200

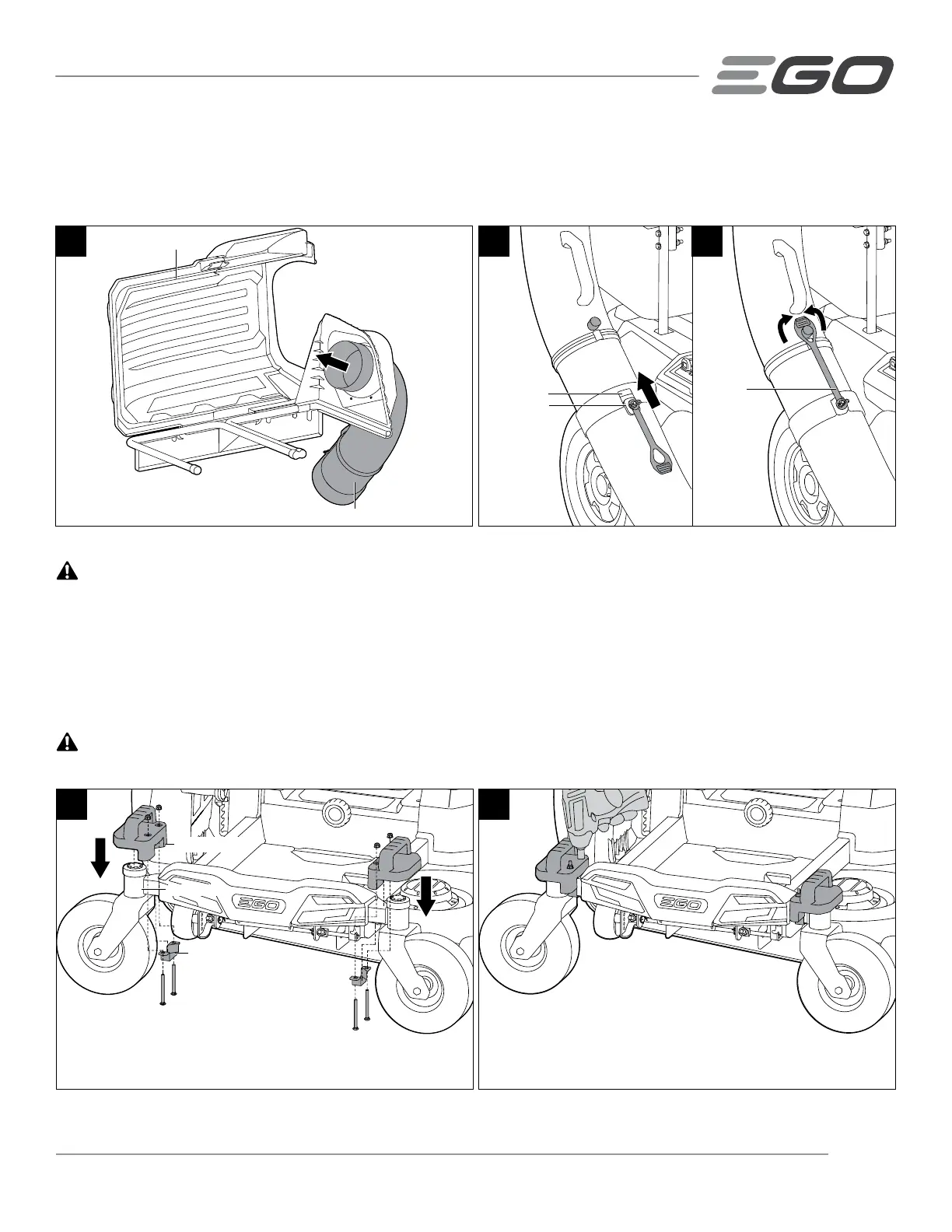

8. Insert the top of the upper chute tube assembly into the top cover assembly (Fig. 9).

9. With the bulge aligned with the notch, slide the upper chute tube assembly into the lower chute tube assembly

(Fig. 10). Stretch the rubber buckle until it is hooked onto the upper chute tube (Fig. 11).

INSTALL THE COUNTERWEIGHTS

WARNING:

The counterweights are required when operating the Zero Turn Mower equipped with the grass

bagger. Failure to install the counterweights may result in serious injury or death.

1. Turn the two front wheels of the mower so that they are perpendicular to the body and are directed outward.

2. Insert the left mounting bracket under the left wheel arm and place the left counterweight on the front of the

mower as shown in Fig. 12. Repeat this step to install the right counterweight.

3. Pre-install four step bolts on both counterweights and nger-tighten the bolts and nuts. Then securely tighten all

four step bolts on both sides by an impact wrench with a 1/2’’ (13mm) socket (not included) (Fig. 13).

WARNING: Use of this product with improperly secured bolts could result in serious personal

injury.

Top Cover Assembly

Upper Chute Tube Assembly

Bulge

Notch

Rubber

Buckle

1312

Mounting Bracket

Counterweight

Wheel Arm
