1756-VOLT LITHIUM-ION CORDLESS LAWN MOWER — LM2000-S

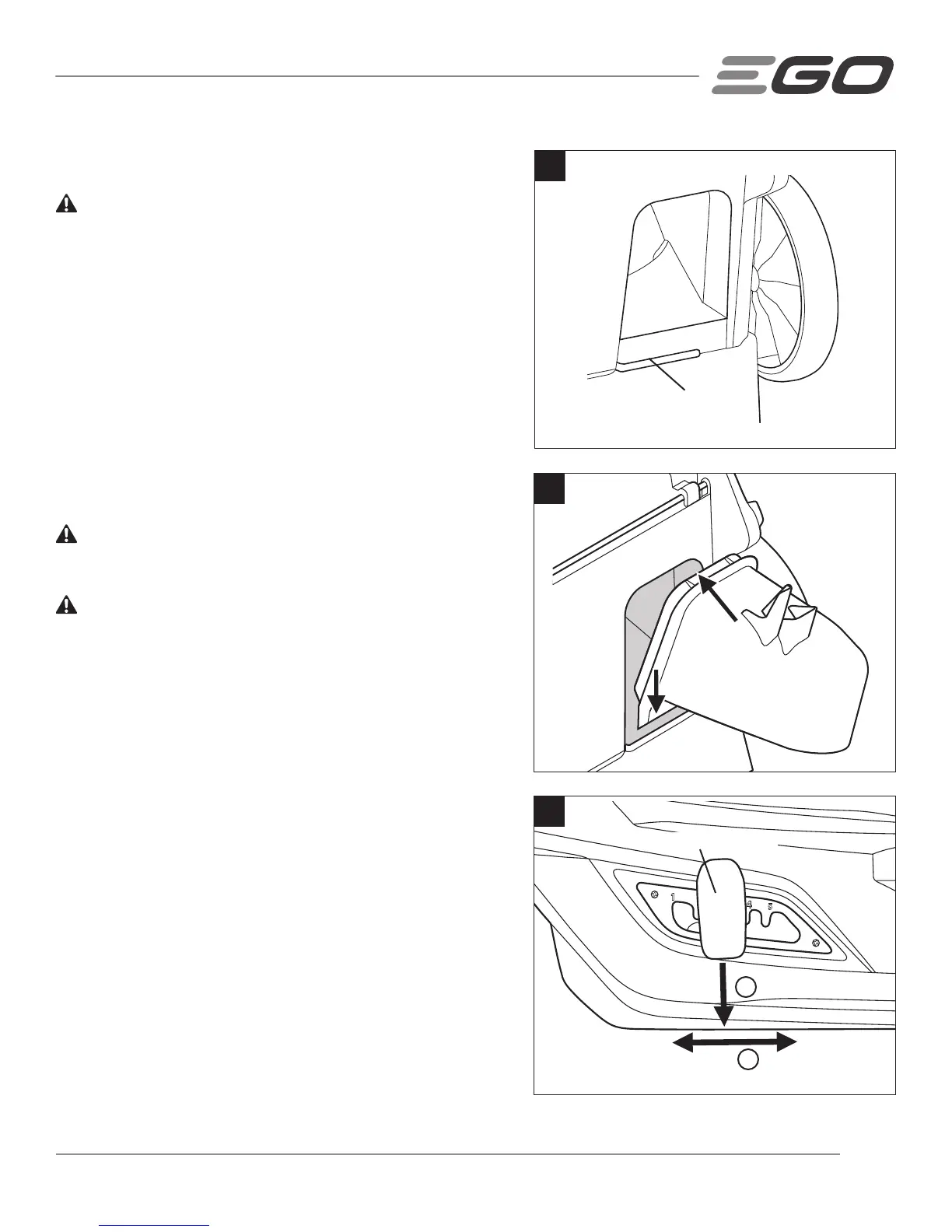

ATTACHING/REMOVING THE SIDE DISCHARGE CHUTE
(Fig. 11a & b)
WARNING: Do not at any time make any adjustment to the
lawn mower without first stopping the motor and removing the
safety key.
1. Lift the rear discharge door.
2. Align the lower edge of the discharge with the V-slot of the
doorsill and insert it into the slot.
3. Push the top of the discharge and insert it into the mower.
Check to see that it is securely seated in the deck.
4. To remove the side discharge chute, lift the rear discharge
door, grasp the side discharge chute and pull it out.
5. Release the discharge door and make sure that it rests
firmly against the discharge chute.
SPRING-LOADED CUTTING HEIGHT ADJUSTMENT (Fig. 12)
WARNING: Do not at any time make any adjustment to the
lawn mower without first stopping the motor and removing the
safety key.
WARNING: Keep your feet away from the deck when
adjusting its height.
The mower can be set to 5 cutting heights between
1.2" (30mm) and 3.5" (90mm). Choose the proper cutting height
according to the types and conditions of the grass.
To raise the blade height
1. Grasp the height adjustment lever, and move it outwards.
2. Move the lever toward the back of the mower and engage
the lever in the desired cutting height position on the
mower deck.
To lower the blade height
1. Grasp the height adjustment lever, and move it outwards.
2. Move the lever toward the front of the mower and engage
the lever in the desired cutting height position on the
mower deck.
11b
Step 1
Step 2
11a
V-Slot
12
Height Adjustment Lever
2
1
To Next Page
