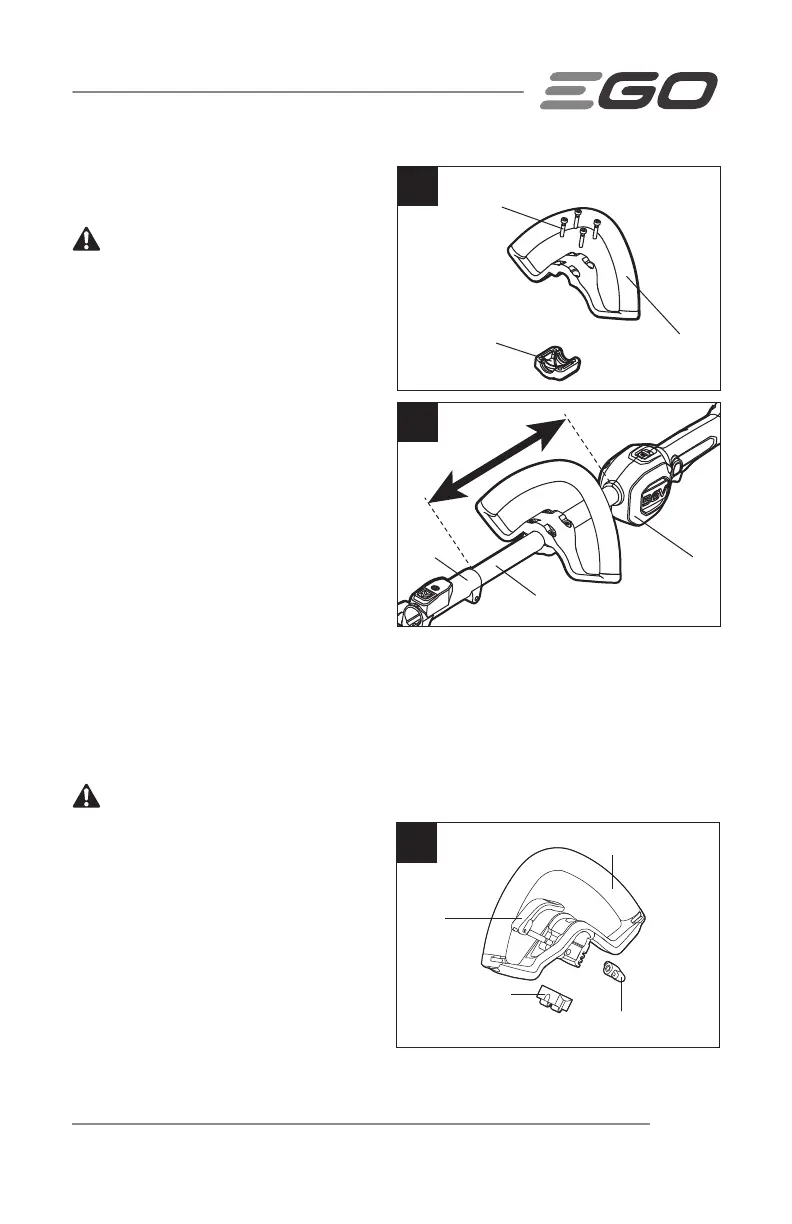

56-VOLT LITHIUM-ION POWER HEAD — PH1400/PH1400-FC 17
MOUNTING AND ADJUSTING THE
FRONT-ASSIST HANDLE
WARNING:
Always remove the
battery pack from the product when you
are assembling parts, making adjustments,
cleaning, or when the product is not in use.
1. Stop the motor and remove the
battery pack, if installed.
2. Loosen the four screws in the front-
assist handle with the supplied hex
wrench and remove the screws and
lower clamp from the front-assist
handle (Fig. 3a).
3. Attach the front-assist handle and
lower clamp on the power-head
shaft and secure them by pre-
tightening the four screws. Turn the
front-assist handle upwards so that
it points toward the top of the rear handle (Fig. 3b).
4. Adjust the front-assist handle position between the rear handle housing and the
coupler on the power-head shaft (Fig. 3b).
5. Tighten the four screws so that the handle cannot be rotated on the shaft.
WARNING:
Never operate the tool without the front-assist handle firmly in place.
NOTE: Optional quick-adjust front-assist
handle (Model number AQH1500) can be
used instead of the front-assist handle
included in the kit. Follow the instructions
below to install the AQH1500 quick-adjust
front-assist handle:
1. Loosen and remove the quick-release
lever and wing nut from the
front-assist handle (Fig. 4a).
3a
Lower Clamp
Front-assist Handle
Screws
3b
Coupler
Power-head Shaft
Rear Handle
Housing
4a
Quick-release
Lever
Front-assist Handle
Wing Nut
Clamping Block
