POLE SAW ATTACHMENT — PSA100022
REPLACING THE BAR AND CHAIN
WARNING:
Before performing any maintenance, make sure that the battery
pack is removed. Failure to heed this warning could result in serious personal injury.
WARNING:
Always wear gloves when handling the bar and chain; these
components are sharp and may contain burrs.
WARNING:
Never touch or adjust the chain while the motor is running. The saw
chain is very sharp; always wear protective gloves when performing maintenance to
the chain.
NOTICE: When replacing the guide bar and chain, always use the specied bar and
chain combination listed in the “Recommended Bar and Chain for this Pole Saw”
section.
Disassembling the Worn Bar and Chain
1. Remove the battery, allow the pole saw to cool and tighten the oil-tank cap.
2. Position the pole saw attachment
on its side on a rm, at surface,
so that the chain-sprocket cover is

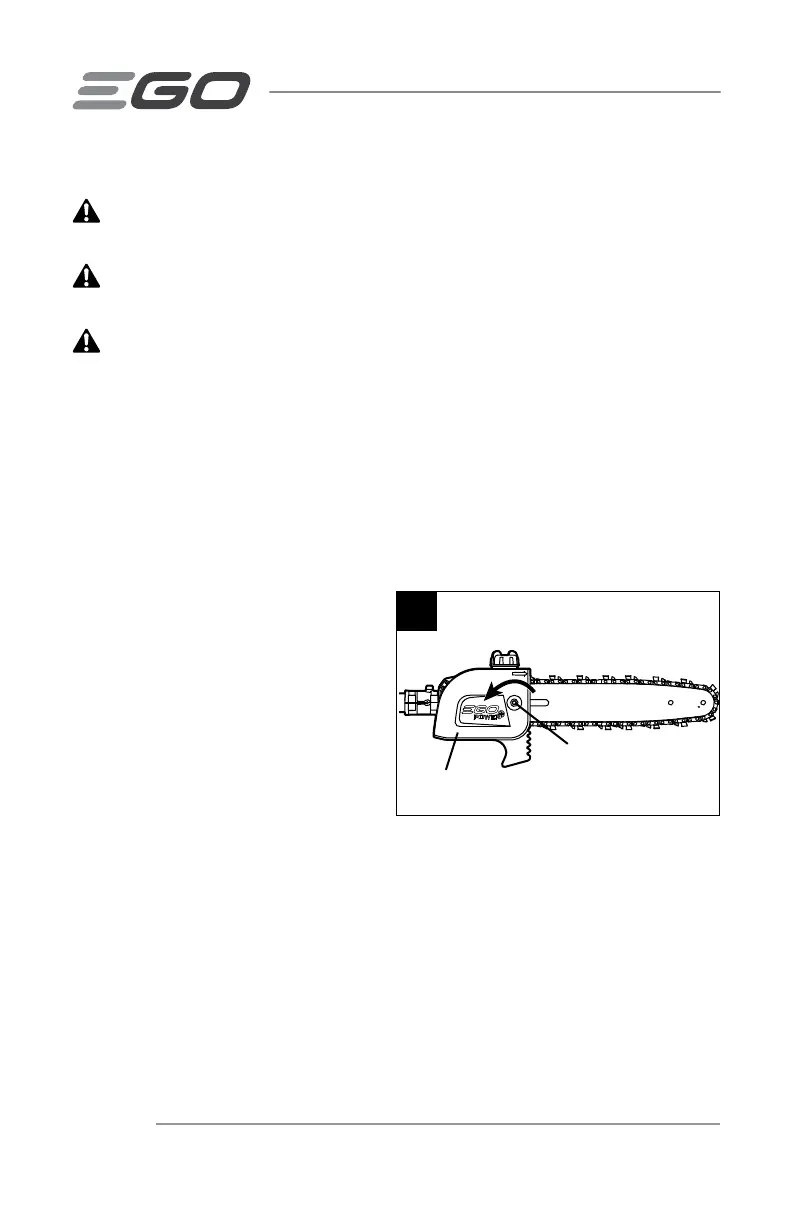

facing upwards (Fig. 9).
3. Wear gloves. Using the dual-head
wrench provided, loosen the cover-
screw assembly and remove it from
the chain-sprocket cover.
4. Remove the chain-sprocket cover
from the pole saw attachment. Clean the chain-sprocket cover with a dry cloth.
5. Remove the bar and chain from the mounting surface. Remove the worn chain
from the bar.
9
Cover-screw
Chain-sprocket Cover
To Next Page
