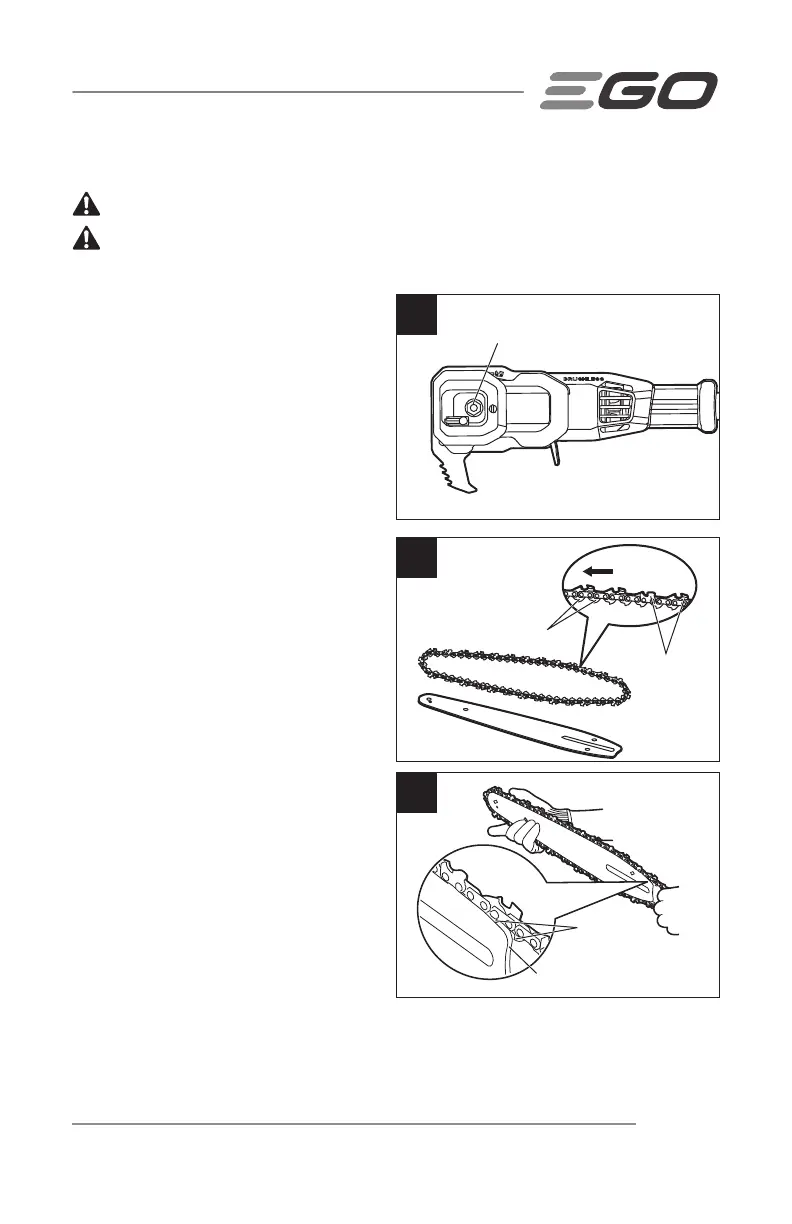

ASSEMBLING THE GUIDE BAR AND SAW CHAIN (Fig. 2)
WARNING:
Wear safety gloves before any work on the chain.
WARNING:
An incorrectly fitted saw chain will result in erratic cutting behavior
of the tool. Fit the chain so that it rotates in the indicated direction of rotation.
1. Remove the battery pack.
2. Lay the pole saw on a firm, flat
surface, so that the side cover is
facing upwards.
3. Unscrew the cover nut using the
included multi-function wrench, then
lift the side cover (Fig. 2a).
4. Lay the new saw chain in a loop on a
flat surface and straighten any kinks
(Fig. 2b).
5. Place the chain drive links into the
guide bar groove. Position the chain so
there is a loop at the back of the guide
bar (Fig. 2c).
6. Hold the chain in position on the guide
bar and place the loop around the
drive sprocket of the pole saw.
2a
Cover Nut
2b
Rotation
Direction
Chain Drive Links
Chain Cutters
2c
Chain Drive
Links
Guide Bar Groove
56-VOLT LITHIUM-ION COMMERICAL POLE SAW — PSX2510/PSX2510-FC 17
