The pole saw attachment connects to the power head by means of a coupler device.
1. Stop the motor and remove the battery pack.
2. Loosen the wing knob on the power-head coupler.
3. Remove the end cap from the pole saw attachment and save it in a safe place
for later use. Align the arrow on the pole saw shaft with the arrow on the coupler
and push the pole saw shaft into the coupler until you hear a clear “click” sound
which indicates the pole saw shaft is mounted into place. There is also a position
indication on the pole saw shaft to assure proper installation (Fig. 4b).
4. Pull the shaft of the attachment to verify it is securely locked into the coupler. If not,
rotate the pole saw shaft from side to side in the coupler until it snaps into place.
5. Tighten the wing knob securely.
WARNING:
Be certain that the wing knob is fully tightened before operating
the equipment; check it periodically for tightness during use to avoid serious personal
injury.
To remove the pole saw attachment from the power head:
1. Stop the motor and remove the battery pack.
2. Loosen the wing knob.
3. Press the shaft release button and, with the button depressed, pull or twist the pole
saw shaft out of the coupler to separate it from the power head.

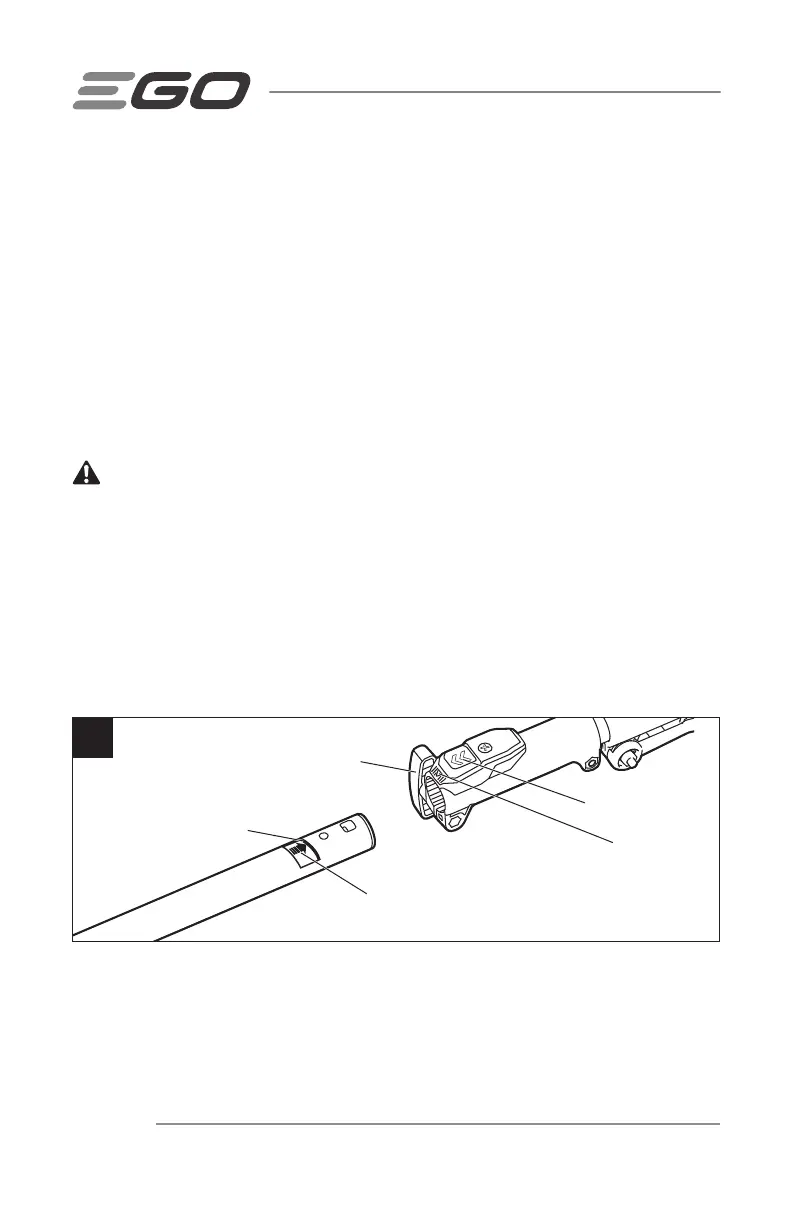

4b
Arrow on the Pole
Saw Shaft
Wing Knob
Position
Indication
Shaft Release Button
Arrow on the
Coupler
56-VOLT LITHIUM-ION COMMERICAL POLE SAW — PSX2510/PSX2510-FC20
