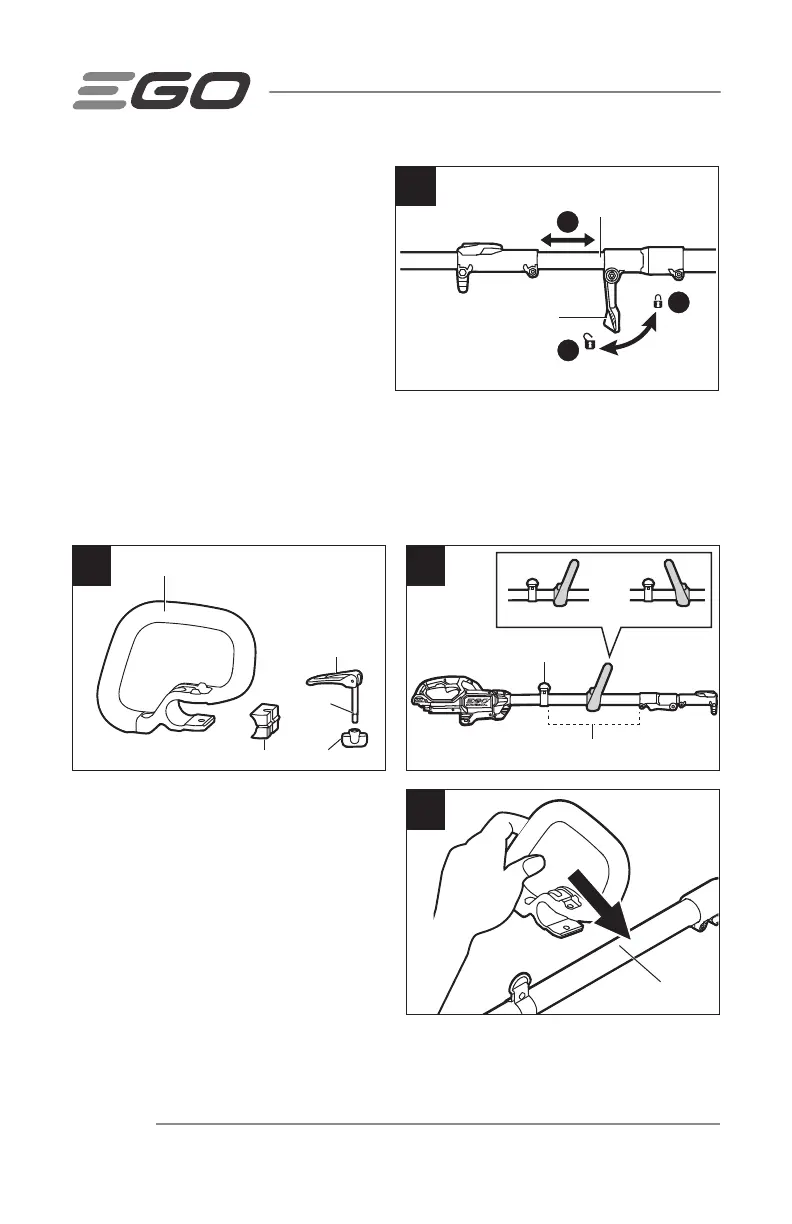

ADJUSTING THE TELESCOPIC

POLE (Fig. 6)

1. Lift the quick release lever to unlock

the telescopic pole.

2. Extend the telescopic pole to the

desired length.

3. Press the quick release lever down to

lock the telescopic pole securely.

MOUNTING AND ADJUSTING THE

FRONT-ASSIST HANDLE, IF REQUIRED (Fig. 7)

1. Stop the motor and remove the battery pack.

2. Loosen the wing nut and remove it along with the clamp bolt and lock lever from

the front-assist handle (Fig. 7a).

3. Position the slant of the assist handle

forward towards the sawing end of the

machine (Fig. 7b). Press the handle

onto the power head shaft within the

mounting zone between the shoulder

strap loop and the telescopic pole

sleeve (Fig. 7c).

Front-assist Handle

Lock Lever

Wing Nut

Clamp Bolt

Clamp Block

Mounting Zone

Shoulder Strap Loop

Correct Incorrect

Telescopic Pole

Quick Release Lever

Power Head Shaft
