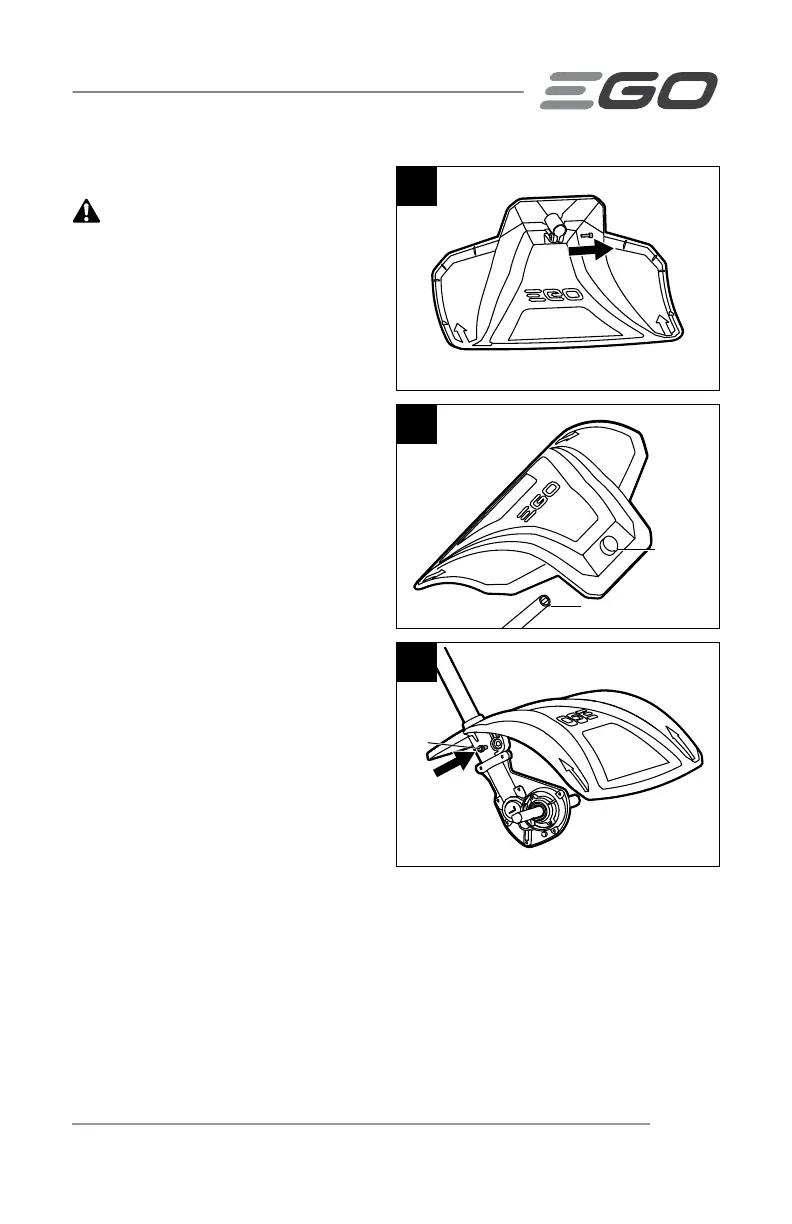

RUBBER BROOM ATTACHMENT — RBA2100/RBA2100-FC 15
MOUNTING THE GUARD
WARNING:
Install the guard
before the rubber broom attachment is
connected to the power head.
1. Loosen and remove the bolt from
the guard with the supplied Allen
key (Fig.2).
2. Lift the rubber broom attachment
shaft and remove the end cap from
the shaft.
3. With the slot in the guard aligned
with the rib on the end of the shaft,
pass the guard through the shaft
until the screw holes in the guard
and in the shaft are aligned
(Fig. 3 & 4).
4. Use the supplied Allen key to tighten
the bolt in the clockwise direction,
to lock the guard securely.
2
4
Bolt
3
Rib
Slot
