RUBBER BROOM ATTACHMENT — RBA2100/RBA2100-FC16
MOUNTING THE RUBBER PADDLE
BROOMS

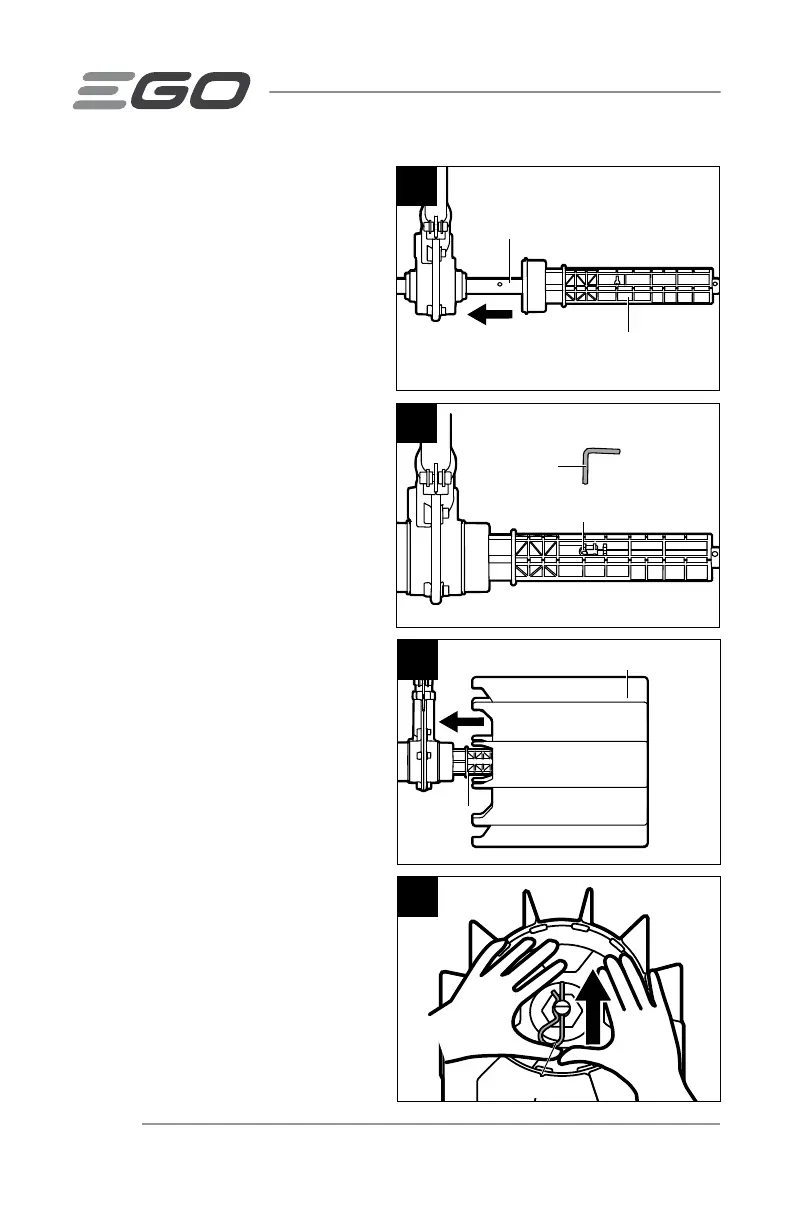

1. Push the drive axle onto the driven
shaft (Fig.5).
2. To secure the drive axle to the
driven shaft, insert the lock pin into
the locking hole.
NOTE: The lock pin need to be installed
in place (Fig.6).
3. Following the same steps to mount
the other drive axle.
4. Push the rubber paddle broom onto
the drive axle (see Fig.7).
5. Insert the hitch pin into the locking
hole to secure the rubber paddle
broom to the drive axle (Fig.8).
6. Following the same steps to mount
the other rubber paddle broom.
5
Driven Shaft
Drive Axle
6
Lock Pin
Locking hole
7
Rubber Paddle Broom
Drive Axle
8
Hitch Pin
