RUBBER BROOM ATTACHMENT — RBA2100/RBA2100-FC22
REPLACING THE RUBBER PADDLE BROOM
WARNING: A damaged rubber paddle broom may break into pieces after long-
time use which may cause dangerous projectiles. Thrown objects can cause serious
injury. Inspect it regularly and do not operate the rubber broom with a worn or damaged
parts.

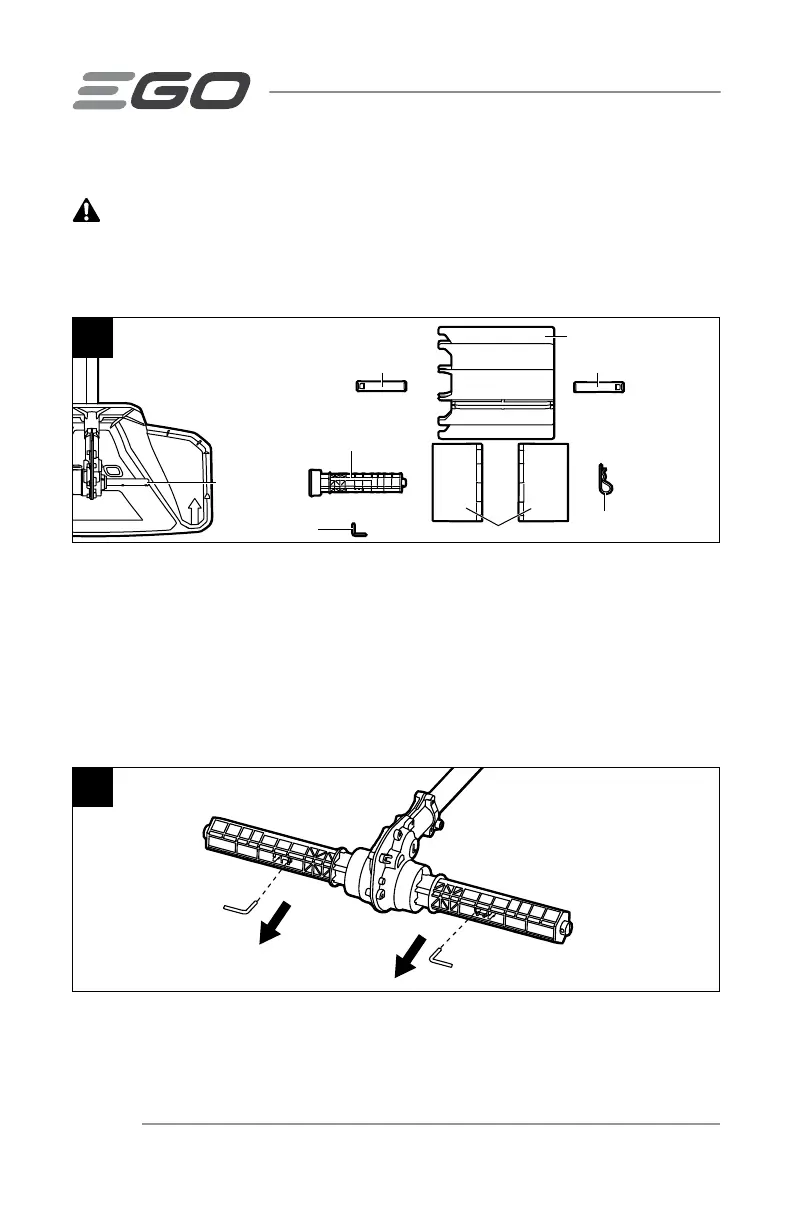

11
Driven Shaft
Lock Pin
Drum
Rubber Sweeper
Slide Binding Bar Slide Binding Bar
Drive Axle
Hitch Pin
To Remove
1. Wear the gloves.
2. Remove the hitch pin from the end of the drive axle (Fig.11).
3. Pull the rubber paddle broom off the drive axle.
4. If the drive axle is damaged, remove the lock pin from the hole of the drive axle
and pull the drive axle off the driven shaft (Fig.12).
