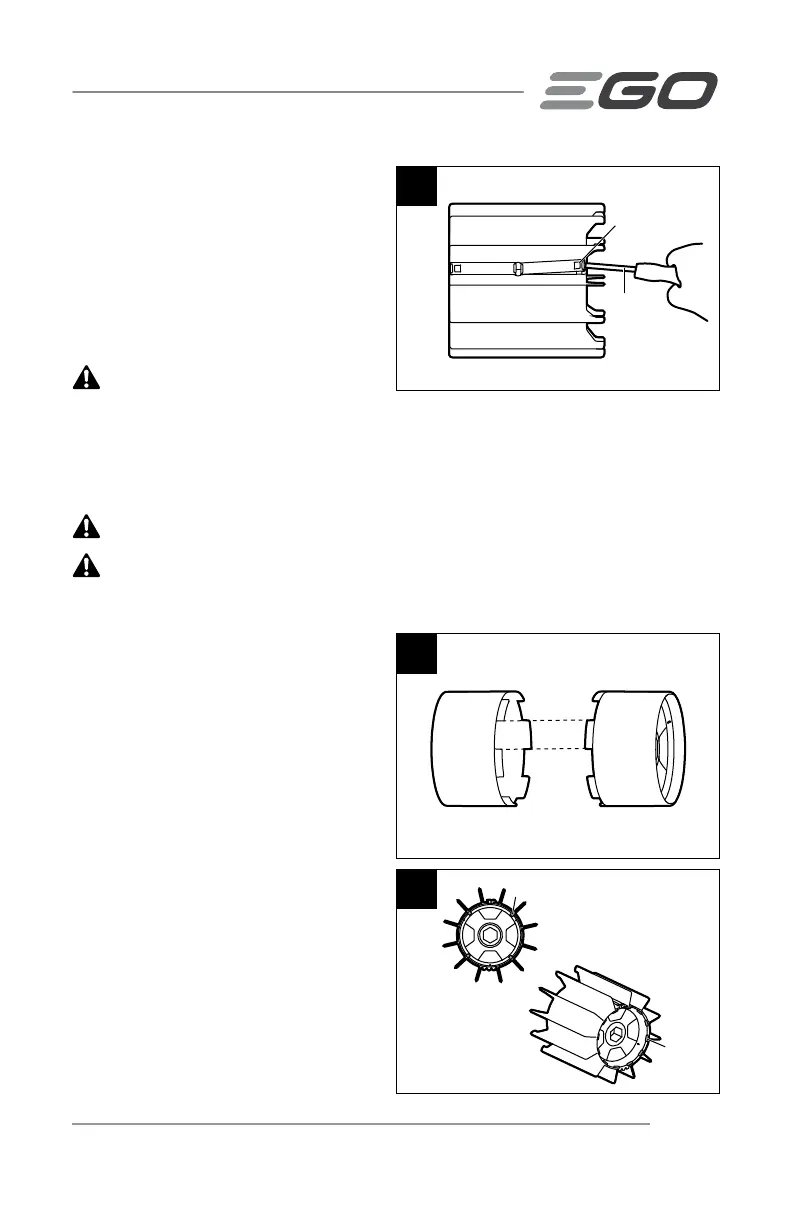

RUBBER BROOM ATTACHMENT — RBA2100/RBA2100-FC 23
5. If the rubber sweeper or the drum
is damaged, remove the two slide
Binding Bars from the rubber sweeper
using the sturdy stick (like the Flat
head screwdriver) (Fig.13), then
separate the rubber sweeper from
the drum, if any parts are damaged,
please replace them.
WARNING: Always protect your
hands by wearing heavy gloves.
6. Following the same steps to remove the other rubber paddle broom.
To Install
WARNING: Always protect your hands by wearing heavy gloves.
WARNING: Do not attach any sweeping attachment to a unit without proper
installation of all required parts. Failure to use the proper parts may cause the working
tool to y off and seriously injure the operator or bystanders.
1. Wear gloves.
2. Install the drive axle onto the driven
shaft and insert the lock pin into the
hole on the drive axle (Fig.6).
3. Assemble the drum through aligning
the rib on the part of the drum into
the hole on the other part of the drum
(Fig.14).
4. Install the rubber sweeper onto the
drum, please notice that the ribs
distributed at both ends of the rubber
sweeper need to wrap the two edges
of the drum (Fig.15).
13
Sturdy
Stick
Slide Binding Bar
14
15
Rib
Rib
To Next Page
