RUBBER BROOM ATTACHMENT — RBA2100/RBA2100-FC24

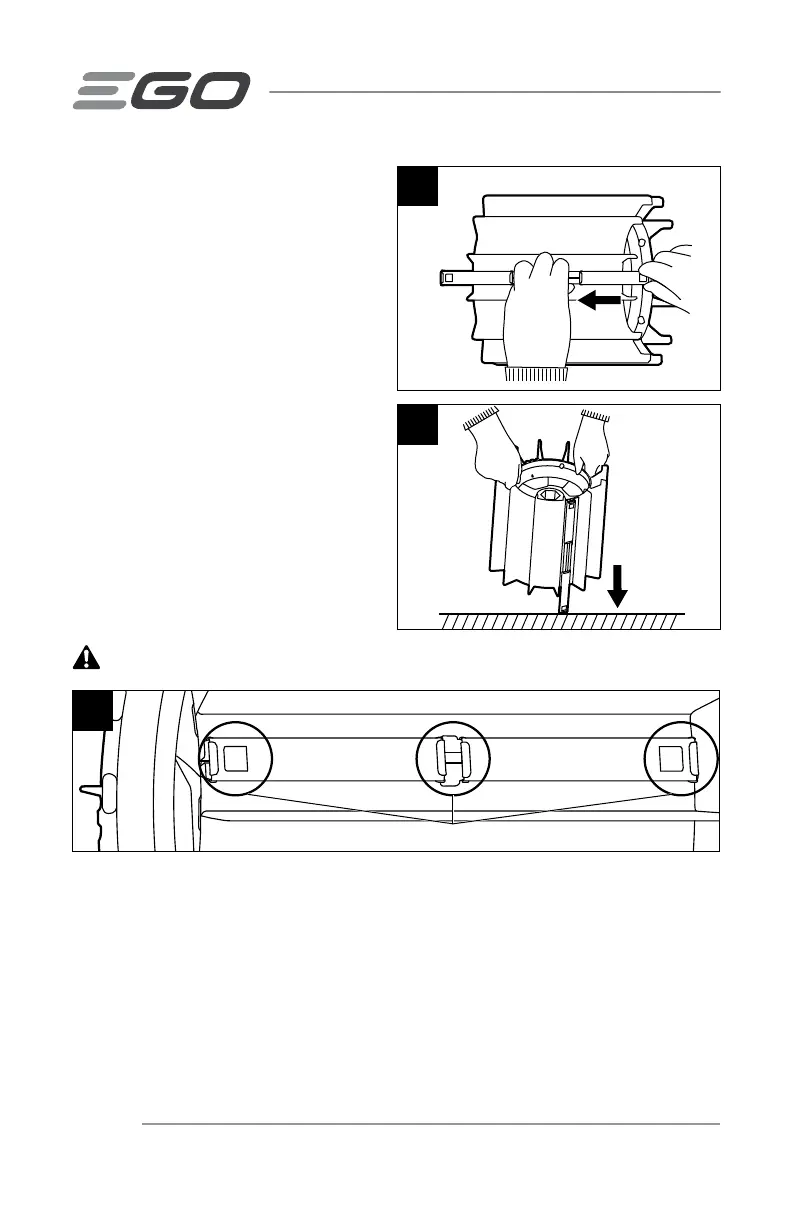

5. Pinch the ends of the rubber sweeper
tightly with your one hand and align
the slide binding bar with the groove
using the other hand (Fig.16).
6. To prevent the upper end of the
slide binding bar slipping off during
assembly, it is recommended to erect
the rubber paddle broom and have a
small angle with the ground (Fig.17).
NOTE: The slide blinding bar needs to
slide to the limit block (Fig.18).
7. Attach the rubber paddle broom onto
the drive axle.
8. Insert the hitch pin in the hole at the
end of the drive axle and fold it at.
9. Following the same steps to mount
the other rubber paddle broom.
WARNING: Always replace both rubber paddle brooms.
Limit Block
18
16
17
