8
Fitting the Ei3000MRF Module

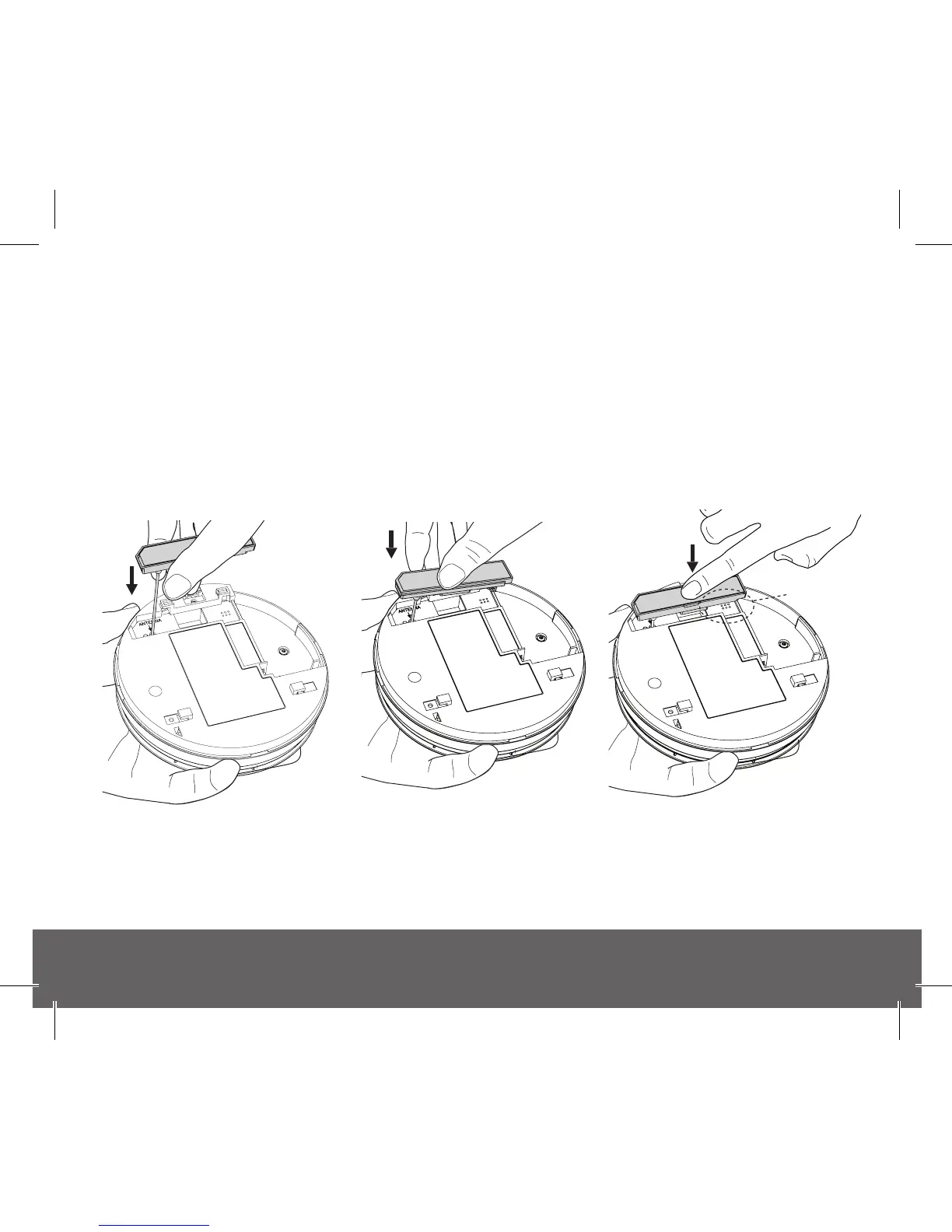

To fit the Ei3000MRF Module, first hold the flexible antenna and guide it into its designated
hole in the rear of the unit until about 2/3 of its length is inserted (Fig. 2a). Then, hold the
module housing (Fig. 2b) and plug it into the Alarm, being careful to align the pins and
keeping them perpendicular to the base as the module is inserted (Fig. 2c). Ensure the
module is fully home, by checking that it is flush with the surrounding Alarm housing (Fig.
2d).
Pin
Alignment
Pin
Alignment
Pin
Alignment
Figure 2a Figure 2b Figure 2c
