House Coding the Unit

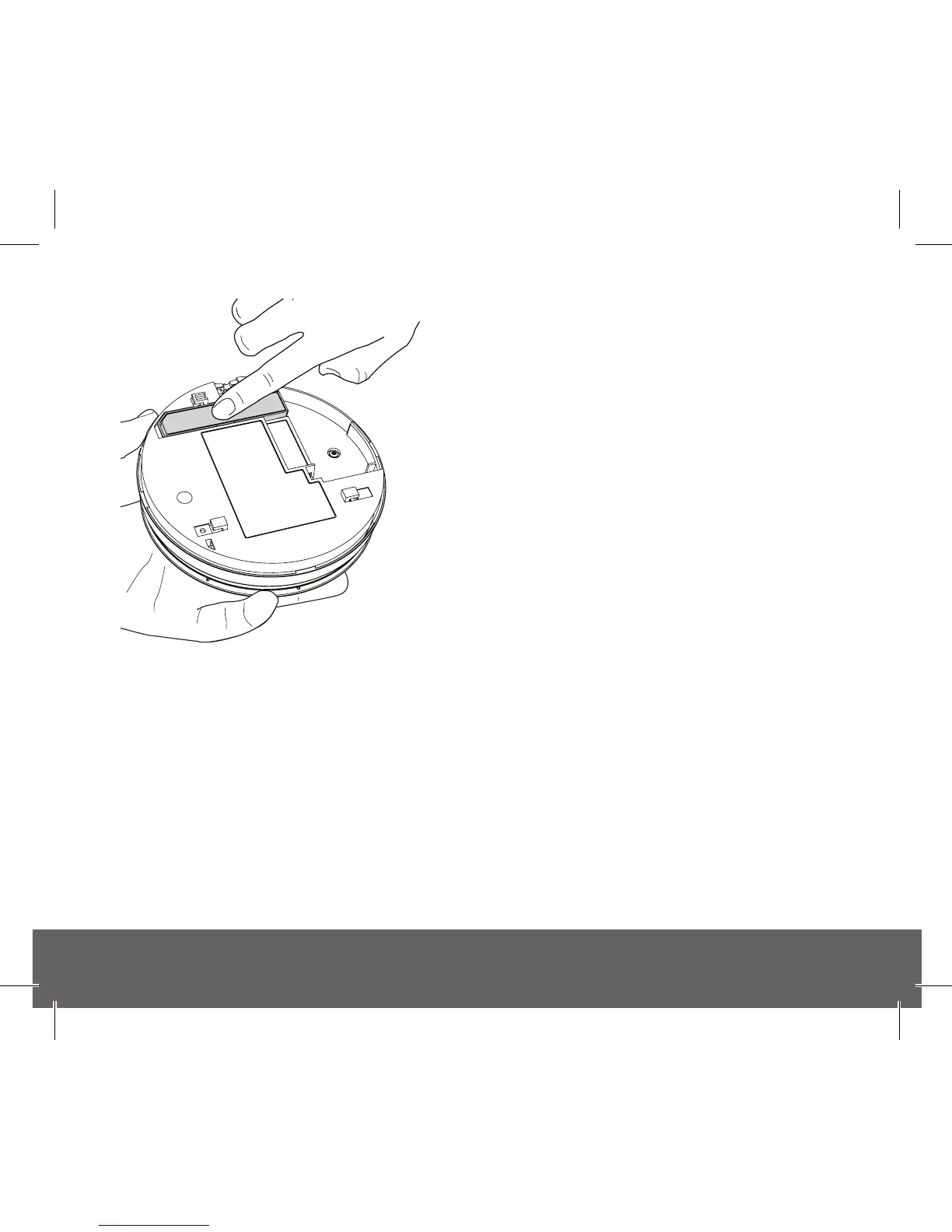

Re-connect the Alarm to the base. Switch back on
the mains power. Check for the green LED on the
Alarm cover. Power supply to the Ei3000MRF will
be confirmed by an initial flash of the red, blue and
green LED on the side of the unit (see Fig 3).
Using a screwdriver, press and hold the House Code
button on the side of the unit until the blue light
illuminates (see Fig 4).
Immediately release the button, the blue light will
flash rapidly and then stop.
The flashing will repeat every 5 seconds thereafter.
Repeat this procedure for all Alarms in the system.
Check to ensure all RF devices have been successfully House Coded. This can be done by
counting the number of blue flashes on each RF Module. The number of flashes should
correspond to the number of RF devices in the system. (i.e. 4 flashes if there are 4 devices
in the system). Note: If an Ei3028 Alarm is included in the system, there will be an extra
blue flash (this corresponds to the 2 independent sensors in the Alarm head). e.g with 4 RF
devices in a system, one of which is an Ei3028 you would expect 5 blue flashes during the
housecode process and so on.
