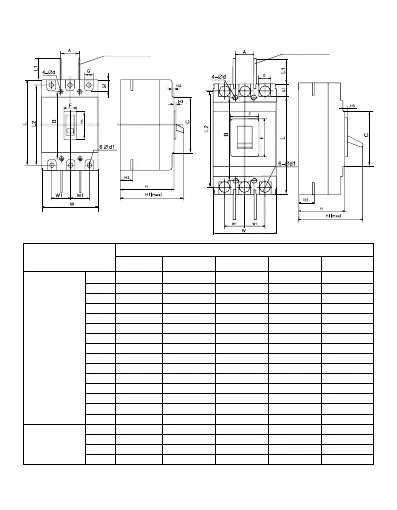

EKF VA-99M EKF - Overall and Installation Dimensions

21

Dimentions
Name
    
Overall
dimensions,
mm
C 85 84 102 102 134
E 48 50 50 86 88
F 22 22 22 90 64
G 14 17 23 32 45
G1 14 16 24 32 34
H 73 68 84 104 110
H1 90 86 110 155 165
H2 20 24 24 38 44
H3 4,5 4 4 6 6,5
H4 7 7 5 - -
L 135 155 165 258 270
L1 14 60 80 105 105
L2 117 132 144 225 234
W 76 90 105 140 182
W1 25 30 35 44 58
Installation
dimensions,
mm
A 25 30 35 44 58
B 117 129 126 194 200
Ø D
3,5 4,5 5,5 7 7
Ø D1
7 10 10 26 30
Phase barrier
Phase barrier
