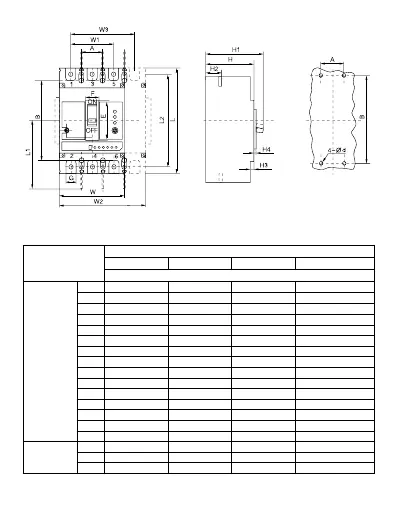

Overall and installation dimensions
of VА-99М 100, VА-99М 250, VА-99М 400, VА-99М 630-800 with electronic trip unit
Dimensions
Name
   
with electronic trip unit
Overall
dimensions,
mm
E 50 62 88,6 81
F 22 22 65 66
G 17,6 22 30 44
H 92 90 106,5 115,5
H1 110 110 146,5 155
H2 28,5 24 38 45,3
H3 10 5 4,5 8
H4 4 4 3,5 9
L 150 165 257 280
L1 100 132,5 220,5 240
L2 132 144 224 243
W 92 107 150 210
W1 60 70 96 140
W2 122 142 198 280
W3 90 105 144 210
Installation
dimensions,
mm
A 30 35 44 70
B 129 126 194 243
Ø d
4,5 4,5 7 7
