EKO K65USG - Ports and Interfaces

11
1. HDMI 4 (ARC)
2. ANTENNA CABLE (RF) - FOR DTV (LOCAL TV AUSTRALIA)
3. MINI YPBPR
4. EARPHONE JACK
5. TF CARD SLOT
6. USB 2
7. OPTICAL
8. USB 1
9. RJ45 (ETHERNET)
10. HDMI 1
11. HDMI 2
12. HDMI 3
13. VIDEO / AUDIO LEFT & RIGHT
USB connection
Insert a USB storage device into the USB port to record, playback of video/music/photo.

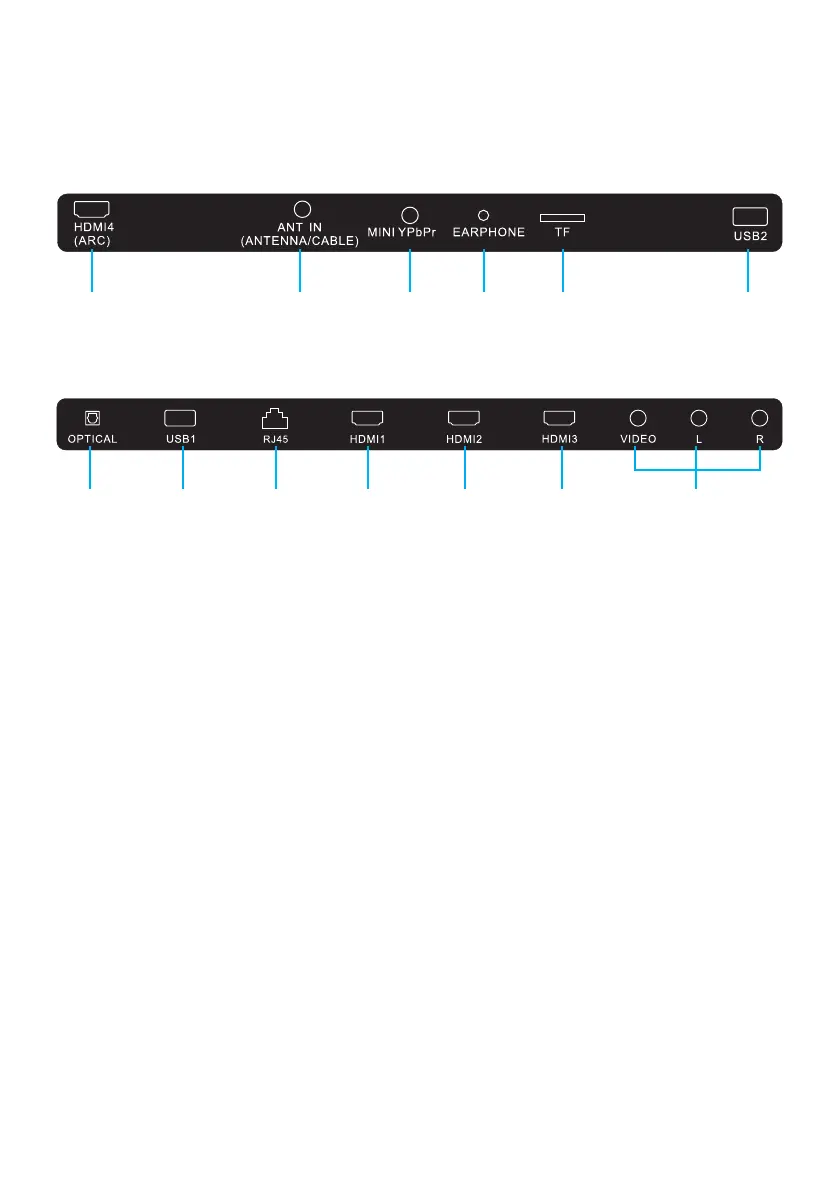

CONTROLS AND CONNECTIONS
BOTTOM PORTS
SIDE PORTS
7 8 9 10 11 12 13
1 2 3 4 5 6
