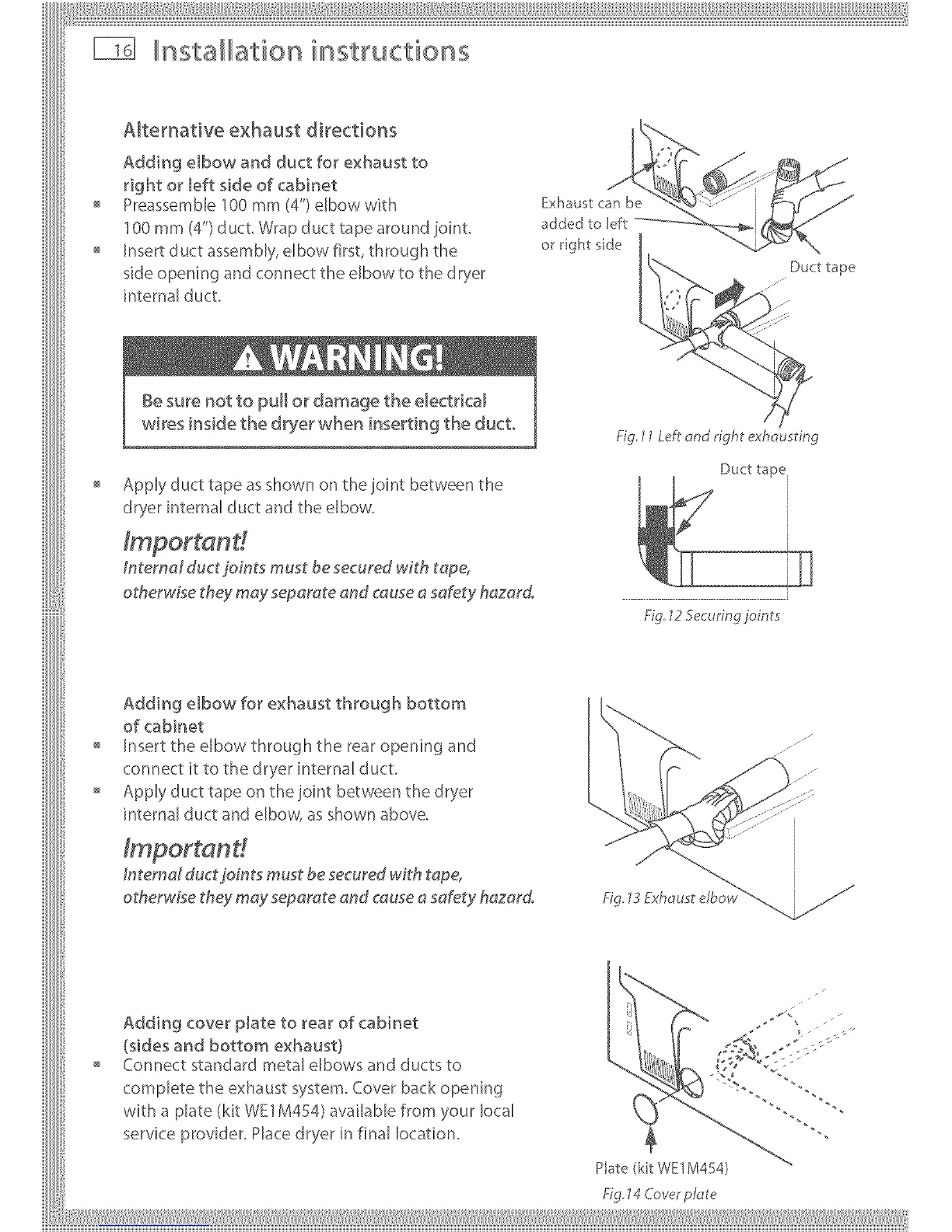

nsta ation instructions
AJtemative exhaust directions
Adding elbow and duct for exhaust to
right or left side of cabinet
Preassemble 100 mm (4") elbow with
100 mm (4") duct. Wrap duct tape around joint.
Insert duct assembly, elbow first, through the
side opening and connect the elbow to the dryer
internal duct.
or rght side
Ducttape
Besure not to pull or damage the dectrical
wires inside the dryer when inserting the duct°
Apply duct tape as shown on the joint between the
dryer internal duct and the elbow.
internal duct joints must be secured with tape,
otherw;se they may separate and cause a safety hazard,.
Fig.11 Left and right exhousting
i
Fig.12Securingjoints
Adding elbow for exhaust through bottom
of cabinet
Insert the elbow through the rear opening and
connect it to the dryer internal duct.
Apply duct tape on the joint between the dryer
internal duct and elbow; as shown above.
internal duct joints must be secured with tape,
otherwise they may separate and cause a safety hazard,. Fig
Adding cover pUate to rear of cabinet
(sides and bottom exhaust)
Connect standard metal elbows and ducts to
complete the exhaust system. Cover back opening
with a plate (kit WE1M454) available from your local
service provider. Place dryer in final location.
Plate (kit WEI M454)
Fig. 14 Cover p/ate
