Reversing the doo
Tools needed:
Standard #2 Phillips screwdriver
Tape--tipped putty knife
Needle--nosed pliers
8
9
Open the door and remove the filler plugs opposite
the hinges.
With the door completely open, remove the bottom
screw from each hinge on the dryer face.
Insert these screws about half way into the top holes,
for each hinge, on the opposite side (where you
removed the filler plugs). Apply firm pressure to get
the screw started in untapped holes.
Loosen the top screw from each hinge on the dryer
face half way.
With one hand holding the top of the door and the
other hand holding the bottom, remove the door from
the dryer by lifting it up and out.
Rotate the door 180 °. Insert it on the opposite side of
the opening by moving the door in and down until
the top hinge and the bottom hinge are resting on the
two top screws inserted in step 3.
Remove the remaining screws from the side of the
opening from which the door was removed. With
these screws secure each hinge at the bottom.
Tighten the two top screws of each hinge.
Reinsert the plastic plugs on the side from which the
door was removed.
I

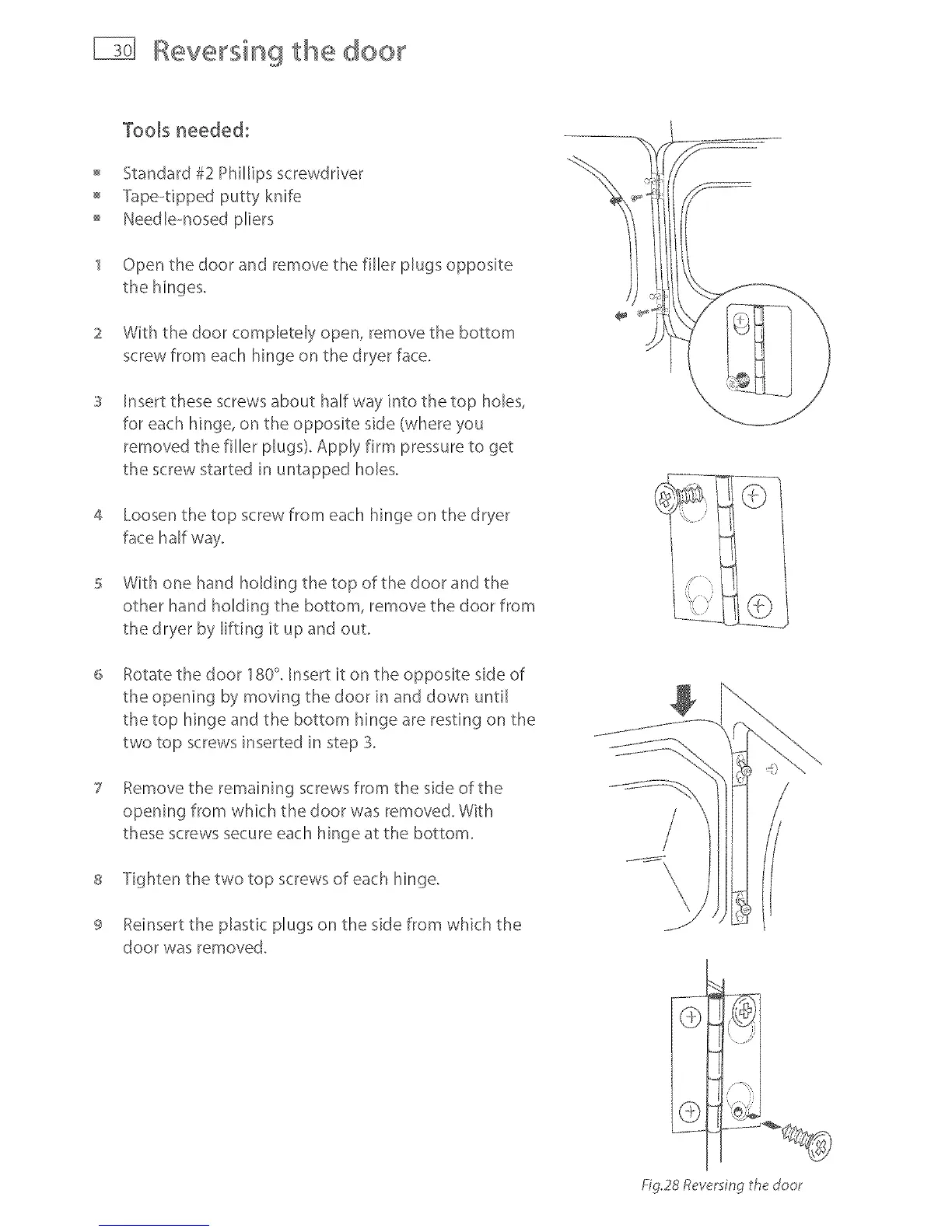

F-ig.28 Revesing the door
