5

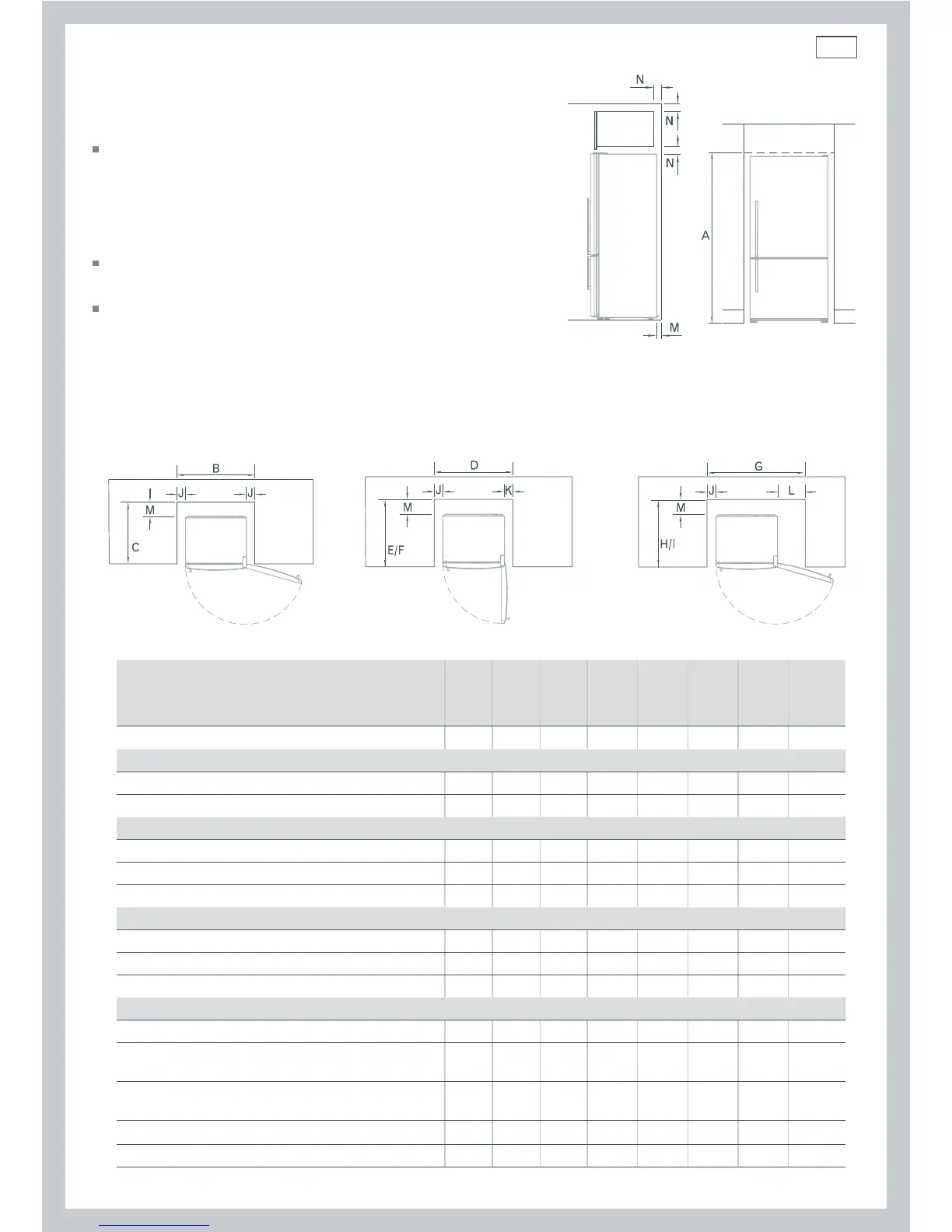

4. Ventilation and installation
To ensure adequate ventilation for your refrigerator
or vertical freezer, see recommended cabinetry
dimensions below. To ensure adequate ventilation for
chest freezers, allow a minimum of 20mm of airspace
on each side of the cabinet, and 75mm at the rear.
The appliance is intended to be placed against a wall
with a free distance not exceeding 75mm.
If integrating your refrigerator, follow installation
instructions provided with the integration kits.
Flush with refrigerator chassis
– full door rotation
Flush with refrigerator door
– full door rotation
Flush with refrigerator door
– 90˚ door rotation (for full drawer/shelf
access, the doors need to be open past 90)
Installation instructions
Cabinetry dimensions (mm)
(including minimum clearances)
RF120
RF190/
RF150
RF270/
RF210
RF169T RF249T
RF240B
RF331T
RF372B
RF381T
RF402B
RF411T
A inside height
869 1257 1645 1257 1645 1475 1645 1745
Flush with refrigerator chassis – full door rotation
B inside width
565 565 565 565 565 675 675 675
C inside depth
502 502 502 502 502 620 620 620
Flush with refrigerator door – (90
º
door rotation ( For full drawer/shelf access, the doors need to be open past 90
º
)
D inside width
565 565 565 565 565 680 680 680
E inside depth flush to curved door
552 552 552 552 552 675 675 675
F inside depth flush to flat door
n/a n/a n/a n/a n/a n/a n/a 690
Flush with refrigerator door – full door rotation
G inside width
685 685 685 685 685 795 795 795
H inside depth flush to curved door 552 552 552 552 552 675 675 675
I inside depth flush to flat door
n/a n/a n/a n/a n/a n/a n/a 690
Minimum clearances
J side clearance
20 20 20 20 20 20 20 20
K side clearance – hinge side flush with door –
90° rotation
25 25 25 25 25 25 25 25
L side clearance – hinge side flush with door –
full rotation
140 140 140 140 140 140 140 140
M rear clearance (incl. evaporator tray) 30 30 30 30 30 30 30 30
N vent 50 50 50 50 50 50 50 50
