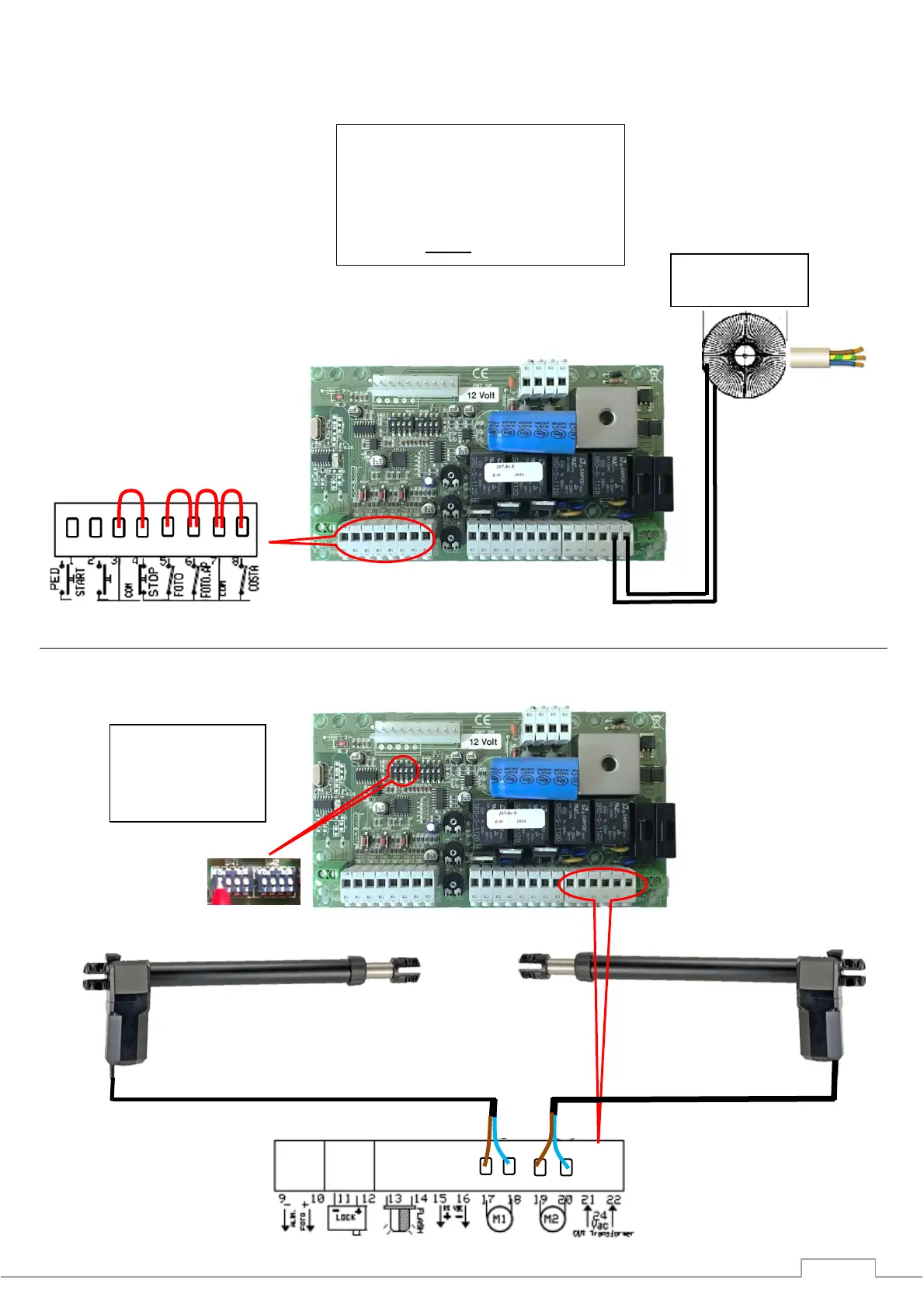

Wiring the 207 controller. Step 1
Wiring the 207 controller. Step 2
AC Transformer
Cable Information
Main Supply 230Vac @ 3.0Amp (minimum)
Photocells, Safety Edges and Viro Lock -BT cable,
CW1128 with conduit recommended.
Motors 2 Core 1.5mm2 MIN.
With single motor, SW1-1
needs to be on (up). With
double motor SW1-1 is
down. At this stage, all
other DIPs off.
