ELBE 207-SM - Adding Photocells (Wiring Step 3); Photocell wiring diagrams; Photocell configuration notes

9
Wiring Step 3.
Adding the photocells
Please note, it is possible to skip this step
and proceed straight to programming, but
you must add the photocells later before
finally commissioning to work.

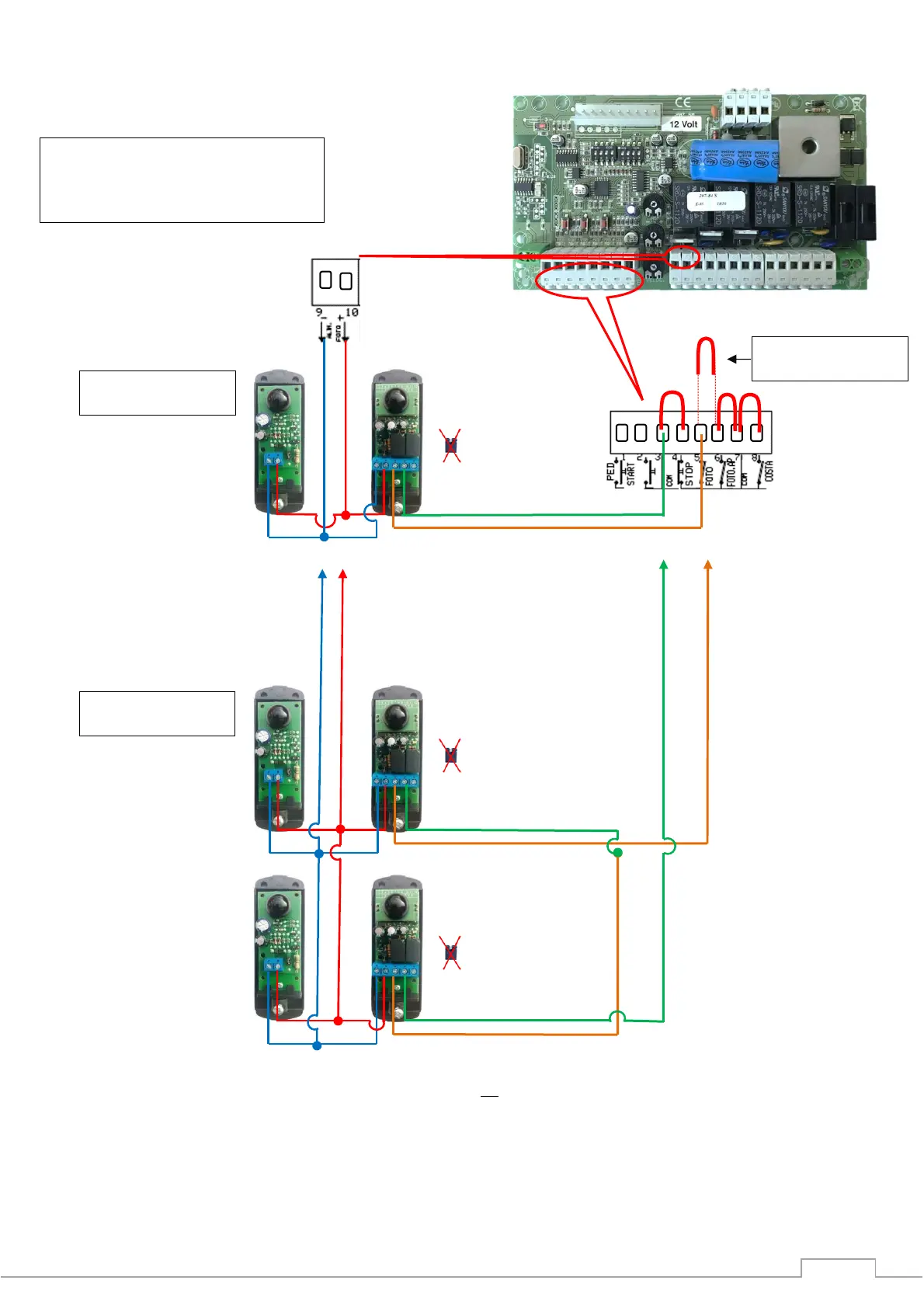

One pair wiring FES-
180, BIG/1/F Photocell.
Two pair wiring FES-
180, BIG/1/F Photocell.
Remove this link when
photocells are added.
The v
ertical jumpers should
not
be installed as the
909 photocell power is 24VAC. Install all the anti
rotation screws once the photocells are aligned
correctly.
CROSS REFERENCE WITH YOUR PHOTOCELL IF
NOT FES-180 or BIG/1/F Photocell.
