XPT/R2G
Pag. 17

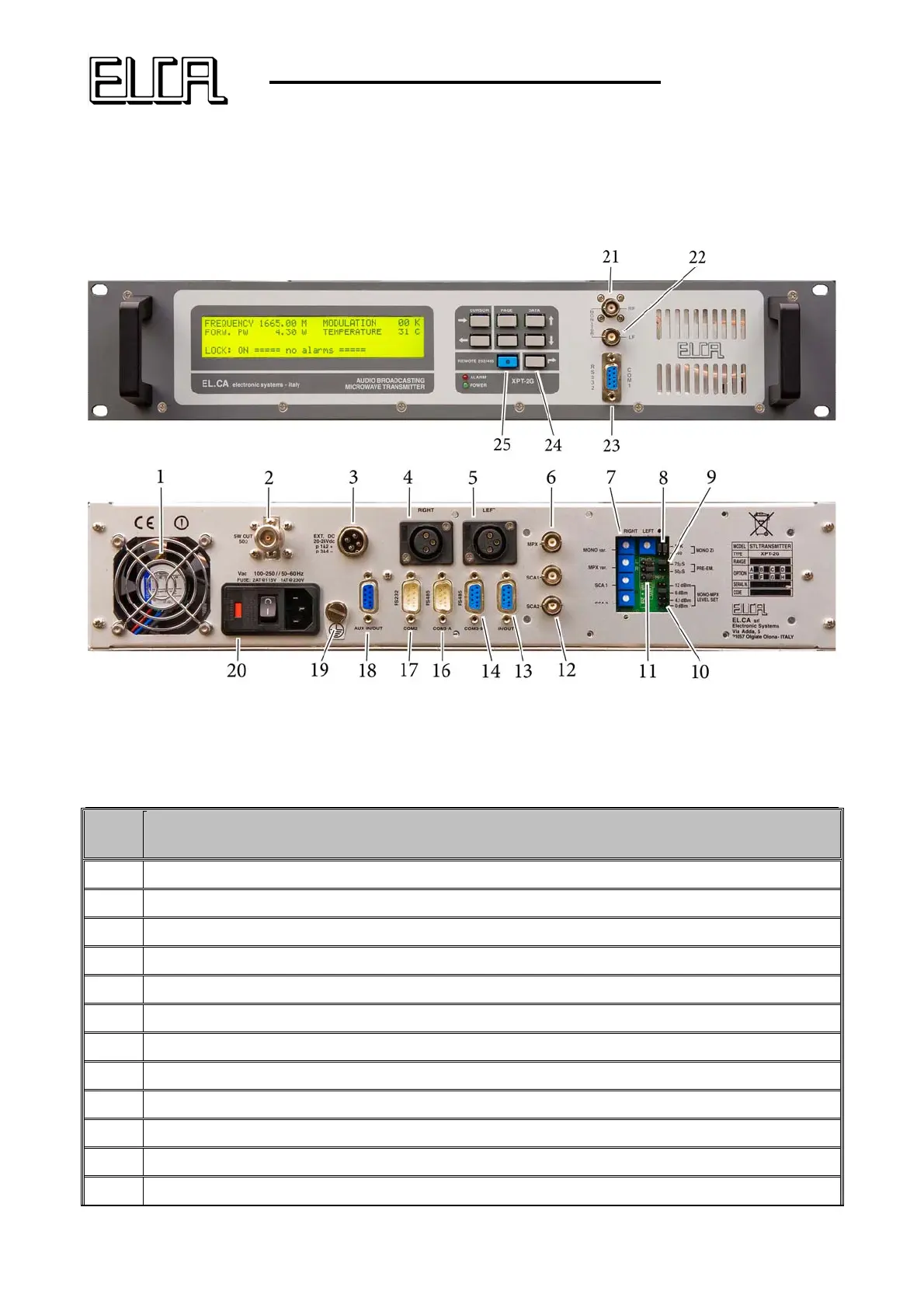

XPT-2G FRONT AND REAR PANNEL SETTING
N°
FUNCTION
1 FUN-COOLER PAPST Type 614/24 Vdc
2 RF OUT – 1 TO 5 WATT
3 EXT. BATT. 24 Vdc connector Pin 1-2 (+) POS. Pin 3-4 (-) GND
4 LEFT input Pin 1=GND Pin 2=L+ Pin 3=L-
5 RIGHT input Pin 1=GND Pin 2=R+ Pin 3=R-
6 External MPX input 0 – 12 dBm
7 L , R , MPX , SCA1 , SCA2 adjustment
8
Mono input impedence choice (600 or 10k)
9 Pre-emph. value choice (50 or 75 microsec.)
10 Nominal value audio input setting for 75kHz of modulation
11 Fixed or variable audio input setting (if var. ±2dB around fixed position)
12 SCA1 and SCA2 inputs (0 to 100kHz)
