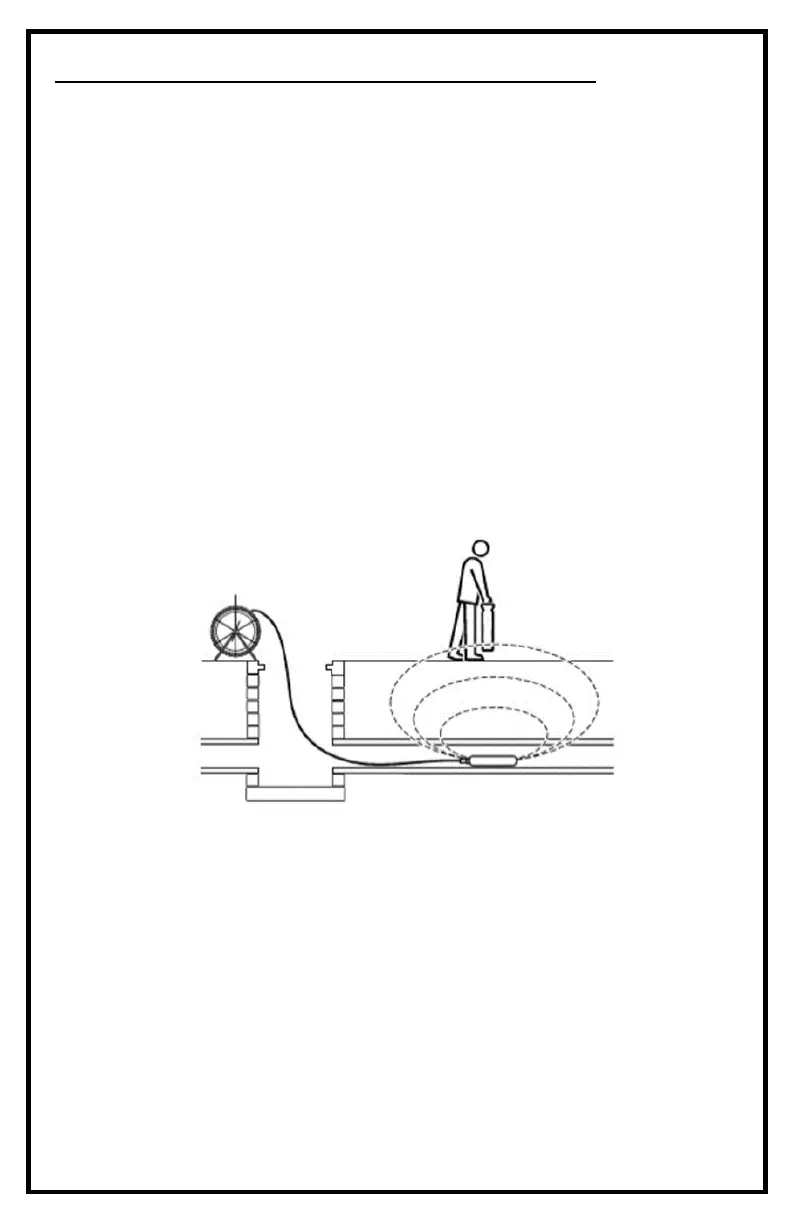

LOCATING THE SONDE SIGNAL (512HZ)

Insert the sonde in the drain and locate it while it is still just in view at the

drain or duct entrance. Hold the locator vertical directly over the sonde

with the antenna in line with the sonde. Adjust the locator sensitivity so the

bar graph reads between 60% and 80%. Push the sonde along the pipe to

the desired area.

1. Approach the peak of the signal working perpendicular to the pipe.

Move the locator backwards and forwards and stop when the bar

graph indicates a Peak.

2. Push the camera 4-6 ft. further, pinpoint, and mark the position. Re-

peat this pinpoint procedure at similar intervals along the line of the

drain or duct until the survey is completed.

3. Most locators will automatically display the depth of a located sonde

providing the locator is correctly oriented and positioned above the

sonde.
