8 Assembly

Correct assembly of the freezer is

essential to prevent leakage of product

and damage to the freezer. To assemble

the freezer you will need an approved

lubricant (such as Petrol-Gel). Make

sure all parts of the assemblies have

been washed and sanitized before

assembling. Persons assembling the

freezer must first wash and sanitize their

hands and forearms with an approved

sanitizer.

CAUTION

To avoid electrical shock or

contact with moving parts,

make sure all switches are in

the “OFF” position and that

the main power supply is

disconnected.

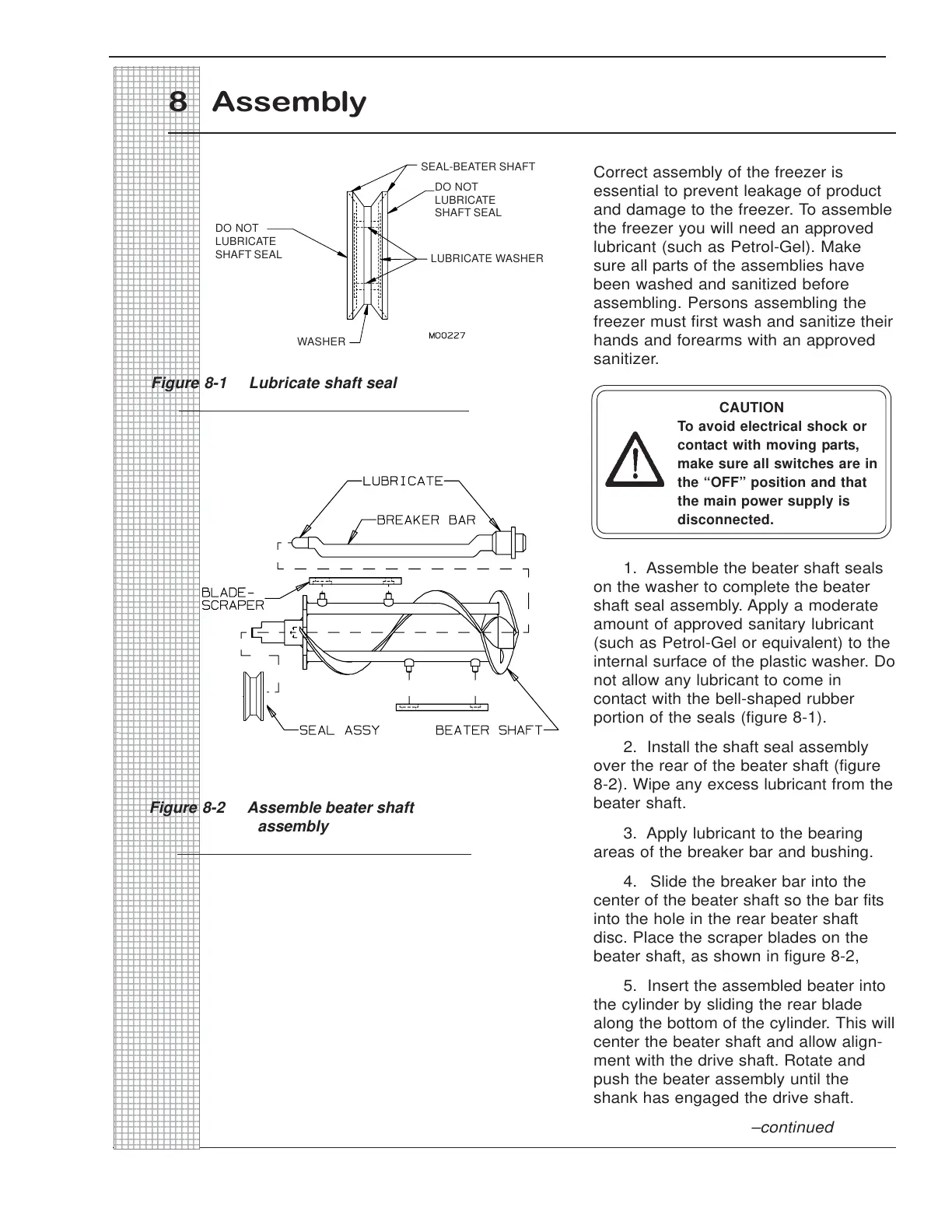

1. Assemble the beater shaft seals

on the washer to complete the beater

shaft seal assembly. Apply a moderate

amount of approved sanitary lubricant

(such as Petrol-Gel or equivalent) to the

internal surface of the plastic washer. Do

not allow any lubricant to come in

contact with the bell-shaped rubber

portion of the seals (figure 8-1).

2. Install the shaft seal assembly

over the rear of the beater shaft (figure

8-2). Wipe any excess lubricant from the

beater shaft.

3. Apply lubricant to the bearing

areas of the breaker bar and bushing.

4. Slide the breaker bar into the

center of the beater shaft so the bar fits

into the hole in the rear beater shaft

disc. Place the scraper blades on the

beater shaft, as shown in figure 8-2,

5. Insert the assembled beater into

the cylinder by sliding the rear blade

along the bottom of the cylinder. This will

center the beater shaft and allow align-

ment with the drive shaft. Rotate and

push the beater assembly until the

shank has engaged the drive shaft.

Figure 8-2 Assemble beater shaft

assembly

Figure 8-1 Lubricate shaft seal

–continued

WASHER

LUBRICATE WASHER

DO NOT

LUBRICATE

SHAFT SEAL

DO NOT

LUBRICATE

SHAFT SEAL

SEAL-BEATER SHAFT
