ELECTRO FREEZE Model CS4

20 184964-04 3/04

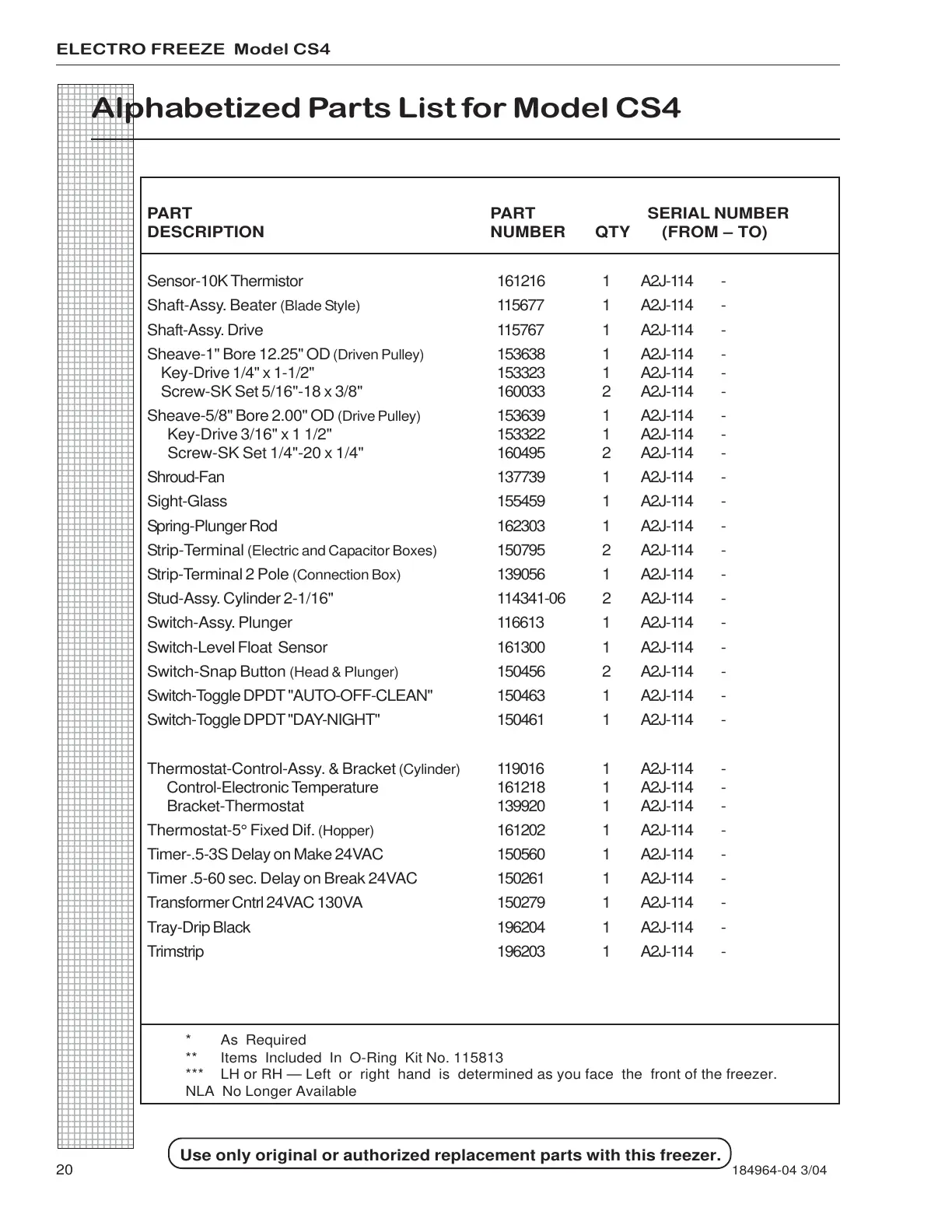

Alphabetized Parts List for Model CS4

Use only original or authorized replacement parts with this freezer.

* As Required

** Items Included In O-Ring Kit No. 115813

*** LH or RH — Left or right hand is determined as you face the front of the freezer.

NLA No Longer Available

PART PART SERIAL NUMBER

DESCRIPTION NUMBER QTY (FROM – TO)

Sensor-10K Thermistor 161216 1 A2J-114 -

Shaft-Assy. Beater

(Blade Style)

115677 1 A2J-114 -

Shaft-Assy. Drive 115767 1 A2J-114 -

Sheave-1" Bore 12.25" OD

(Driven Pulley)

153638 1 A2J-114 -

Key-Drive 1/4" x 1-1/2" 153323 1 A2J-114 -

Screw-SK Set 5/16"-18 x 3/8" 160033 2 A2J-114 -

Sheave-5/8" Bore 2.00" OD

(Drive Pulley)

153639 1 A2J-114 -

Key-Drive 3/16" x 1 1/2" 153322 1 A2J-114 -

Screw-SK Set 1/4"-20 x 1/4" 160495 2 A2J-114 -

Shroud-Fan 137739 1 A2J-114 -

Sight-Glass 155459 1 A2J-114 -

Spring-Plunger Rod 162303 1 A2J-114 -

Strip-Terminal

(Electric and Capacitor Boxes)

150795 2 A2J-114 -

Strip-Terminal 2 Pole

(Connection Box)

139056 1 A2J-114 -

Stud-Assy. Cylinder 2-1/16" 114341-06 2 A2J-114 -

Switch-Assy. Plunger 116613 1 A2J-114 -

Switch-Level Float Sensor 161300 1 A2J-114 -

Switch-Snap Button

(Head & Plunger)

150456 2 A2J-114 -

Switch-Toggle DPDT "AUTO-OFF-CLEAN" 150463 1 A2J-114 -

Switch-Toggle DPDT "DAY-NIGHT" 150461 1 A2J-114 -

Thermostat-Control-Assy. & Bracket

(Cylinder)

119016 1 A2J-114 -

Control-Electronic Temperature 161218 1 A2J-114 -

Bracket-Thermostat 139920 1 A2J-114 -

Thermostat-5° Fixed Dif.

(Hopper)

161202 1 A2J-114 -

Timer-.5-3S Delay on Make 24VAC 150560 1 A2J-114 -

Timer .5-60 sec. Delay on Break 24VAC 150261 1 A2J-114 -

Transformer Cntrl 24VAC 130VA 150279 1 A2J-114 -

Tray-Drip Black 196204 1 A2J-114 -

Trimstrip 196203 1 A2J-114 -
